The Small and Light Design
MT780 is a very small and light 1D barcode scan engine in its class. With the size of W23.7 x L12.2 x H7.5 mm and the weight of only 2 grams, MT780 scan engine can fit into the most space-constrained product and is also capable of being mounted from top or bottom, thus providing unparalleled flexibility for product design.

Mobile-Friendly Scanning
MT780, with enhanced optical design and latest decode algorithm, virtually scans all 1D barcodes on any surface, either paper-based label or mobile phone display. With MT780 scan engine integrated into mobile device, users may expand their business into many new applications such as eCoupon, eTicket, Digital ID cards and mobile payments.

Easy and Flexible Operations
MT780 scan engine enhances design flexibility by offering various output interfaces with USB HID,USB VCP and UART and enabling the user to easily configure the reading modes and scanner settings according to preference. The flash memory of MT780 serves as a flexible and upgradeable provision for additional requirements or performance enhancement and extends the product's lifecycle as well.

More Ambient Light Immunity
MT780 automatically adjusts its parameters for optimal scanning performance which provides the freedom to scan barcodes from under complete darkness to direct sunlight. With configurable scan rate between auto-adaptive mode and fixed mode, MT780 scan engine is ideal for both high-speed scanning applications and smart devices which require more motion tolerance and ambient light immunity.

Bi-directional Communication

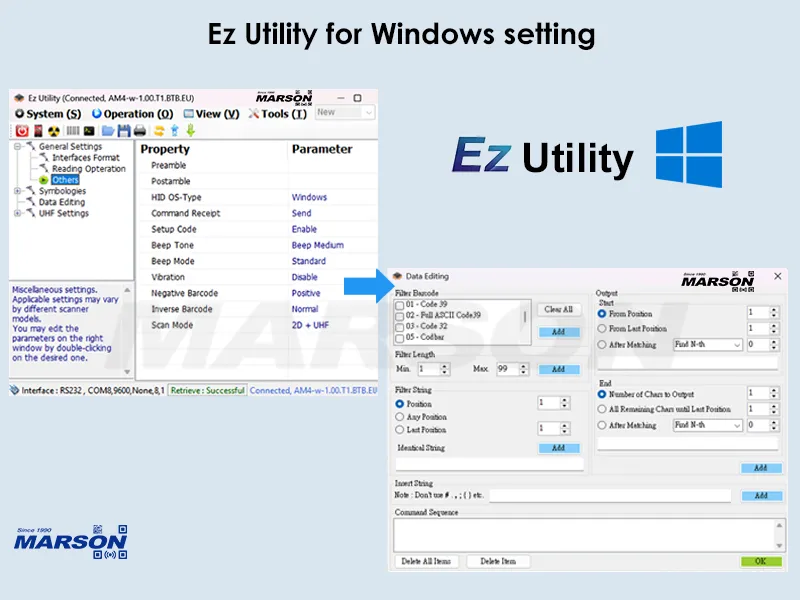

A set of commands is supported to enable the host device to configure all the functions of MT780 thereby fulfilling dynamic configurations demand. To help user grasp and understand the bi-directional communication more quickly, the Windows^®-based BEO^® configuration utility is provided as a user-friendly platform where testing MT780 scan engine can be done in a much easier way.

Useful Demo Kit
MB100 Demo Kit (sold separately) provides the software and hardware tools required for testing MT780 before integrating it into the host device. The kit contains software utility, interface cables, and MB100 Multi I/O board. Due to its small size, MB100 is also suitable for being installed inside the host system as an interface board connecting MT780 to the host device.
