MT15 1D Ultra-mini Scan Engine
Why Ultra-Mini 1D Scan Engines Excel in Space-Limited Designs
Devices like wearables, handheld terminals, and compact mobile accessories require scanning modules that deliver reliable performance without adding bulk. Ultra-mini 1D scan engines provide essential decoding capability while fitting into the smallest device housings, making them ideal for modern, highly integrated designs.
How Low-Power Architecture Enhances Embedded Applications
A 3.3V power design and ultra-low sleep-mode consumption help conserve battery life in portable devices. Fast 1D decoding, lightweight construction, and simple UART integration allow developers to build efficient, long-lasting products for field service, healthcare, and access control environments.
- Ultra-mini size for extreme space-constrained applications
- Lightweight design suited for mobile and wearable devices
- Low-voltage (3.3V) and ultra-low power consumption
- Fast 500 sps performance for responsive 1D scanning
- Simple UART interface for easy integration
-
Field Service -
Healthcare -
Access Control
FEATURES
The Smallest in the Industry
MT15 scan engine is by far the smallest 1D barcode scan engine in the AIDC industry. With an extraordinarily small size of W11.5 x L10.0 x H7.2 mm and a weight of less than 1 gram, MT15 can fit into the most space-constrained products, providing unparalleled flexibility for product design.
Mobile-Friendly Scanning
MT15, with enhanced optical design and latest decode algorithm, virtually scans all 1D barcodes on any surface, either paper-based label or mobile phone display. With MT15 scan engine integrated into mobile device, users may expand their business into many new applications such as eCoupon, eTicket, Digital ID cards and mobile payments.
Reliable and Flexible Operations
With golden fingers for connection, the MT15 scan engine can be firmly mounted on the host PCB with soldering, which not only increases mechanical reliability but reduces cost, and risk incurred in installing flex cable and connector. The flash memory of MT15 serves as a flexible and upgradeable provision for additional requirements or performance enhancement and extends the product's lifecycle as well.
Ambient Light Immunity
MT15 scan engine automatically adjusts its parameters for optimal scanning performance which provides the freedom to scan barcodes from under complete darkness to direct sunlight. With configurable scan rate between auto-adaptive mode and fixed mode, MT15 is ideal for both high-speed scanning applications and smart devices which require more motion tolerance and ambient light immunity.
Bi-directional Communication

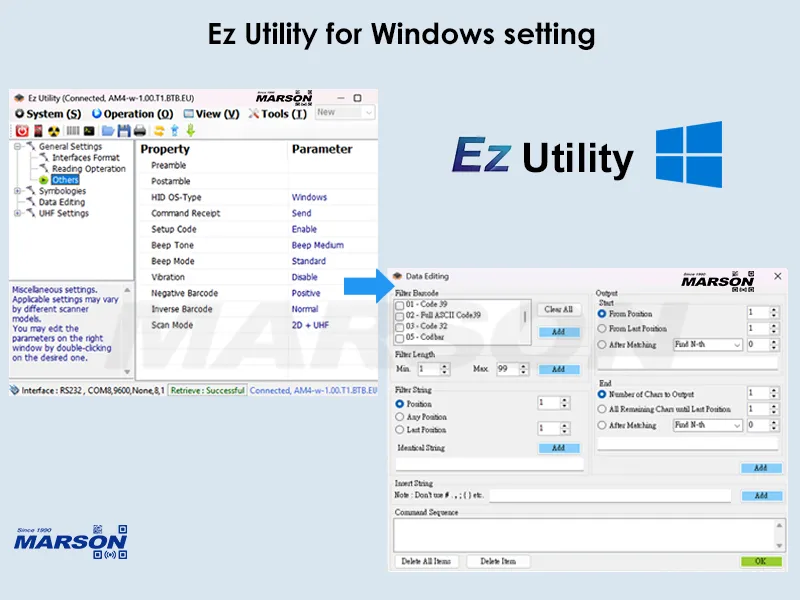

A set of commands is supported to enable the host device to configure all the functions of MT15 thereby fulfilling dynamic configurations demand. To help user grasp and understand the bi-directional communication more quickly, the free Windows®-based BEO® configuration utility is provided as a user-friendly platform where testing MT15 scan engine can be done in a much easier way.
Useful Demo Kit
MB100 Demo Kit (sold separately) provides the software and hardware tools required for testing MT15 before integrating it into the host device. The kit contains software utility, interface cables and MB100 Multi I/O board. Due to its small size, MB100 is also suitable for being installed inside the host system as an interface board connecting MT15 scan engine to the host device.
SPECIFICATIONS
5 Mil : 33 ~ 110 mm
10 Mil: 34 ~ 218 mm
15 Mil: 45 ~ 322 mm
UPC/EAN
13 Mil: 45 ~ 277 mm
W11.5 x L10 x H5.5 mm (when mounted on PCB)
(requires housing that is designed for ESD protection and stray from electric fields)
(P/N: 4202-1702100, QTY: 2)
