The Smallest and Lightest in its Class
Scan Engine MT10 is the smallest and lightest 1D barcode scan engine in its class. With an extraordinarily small size of W14 x L11.9 x H7 mm and a weight of only 1 gram, the MT10 scan engine can fit into the most space-constrained product and is also capable of being mounted from top or bottom, thus providing unparalleled flexibility for product design.

Mobile-Friendly Scanning
Scan Engine MT10, with enhanced optical design and the latest decode algorithm, virtually scans all 1D barcodes on any surface, either paper-based label or mobile phone display. With the MT10 Scan Engine scan engine integrated into the mobile device, users may expand their business into many new applications such as eCoupon, eTicket, Digital ID cards, and mobile payments.

Easy and Flexible Operations
MT10 scan engine enhances design flexibility by offering various output interfaces with USB HID,USB VCP and UART and enabling the user to easily configure the reading modes and scanner settings according to preference. The flash memory of MT10 serves as a flexible and upgradeable provision for additional requirements or performance enhancement and extends the product's lifecycle as well.

More Ambient Light Immunity
Scan EngineMT10 automatically adjusts its parameters for optimal scanning performance which provides the freedom to scan barcodes from under complete darkness to direct sunlight. With configurable scan rate between auto-adaptive mode and fixed mode, MT10 scan engine is ideal for both high-speed scanning applications and smart devices which require more motion tolerance and ambient light immunity.

Bi-directional Communication

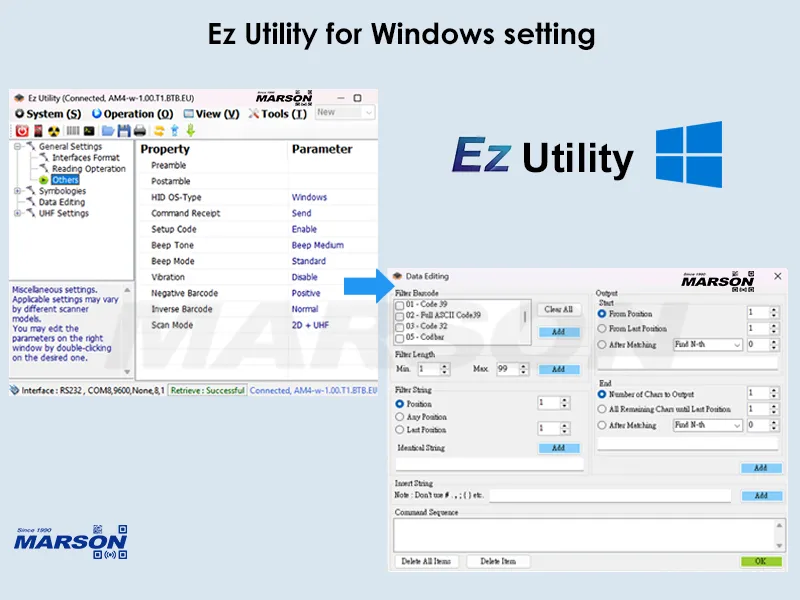

A set of commands is supported to enable the host device to configure all the functions of MT10 scan engine thereby fulfilling dynamic configurations demand. To help user grasp and understand the bi-directional communication more quickly, the Windows^®-based BEO^® configuration utility is provided as a user-friendly platform where testing MT10 Scan Engine can be done in a much easier way.

Useful Demo Kit
MB100 Demo Kit (sold separately) provides the software and hardware tools required for testing MT10 before integrating it into the host device. The kit contains software utility, interface cables, and MB100 Multi I/O board. Due to its small size, MB100 is also suitable for being installed inside the host system as an interface board connecting MT10 to the host device.
