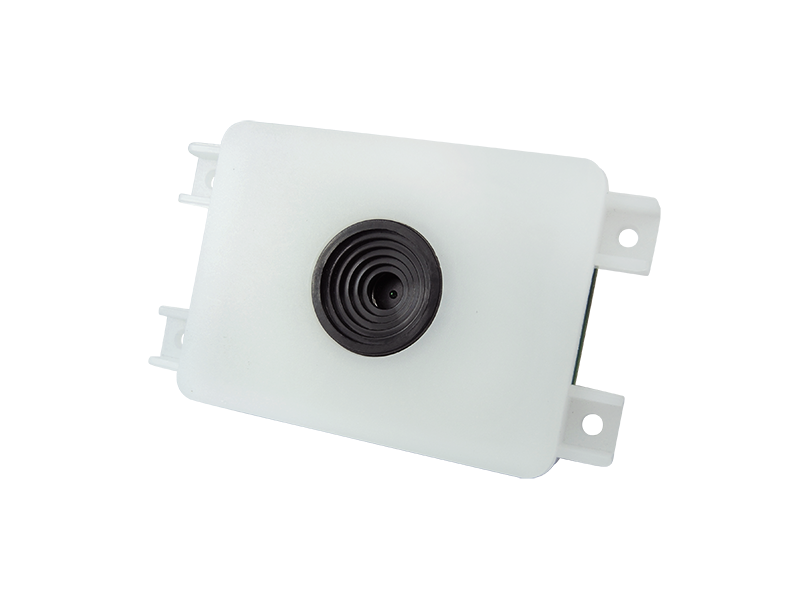

MT688 2D Scan Engine
Why Wide-Angle Mobile Scanning Matters in Modern Applications
As mobile-based workflows expand across retail, logistics, access control, and public transport, devices must capture barcodes instantly—even at close range or from variable angles. A scan engine with a wide field of view and reliable decoding ensures seamless interactions, reduces user fatigue, and supports fast, customer-friendly operations.
How a Slim, Wide-Angle Engine Enhances Mobile Platform Integration
By combining extra-wide-angle optics with a slim, low-profile structure, it integrates effortlessly into compact mobile devices and handheld terminals. Its ready-to-use protective window accelerates development, while dynamic configuration options allow real-time optimization for different barcode types, lighting conditions, and application needs. The result is smooth, efficient scanning across diverse environments and platforms.
- Wide field of view (72° × 54°) for near-field and mobile screen scanning
- Slim, low-profile design ideal for compact, space-limited devices
- Supports a wide range of interface options for flexible integration
- Real-time dynamic configuration for optimized decoding performance
-
Retail -
Mobile POS -
Access Control -
Public Transport
FEATURES
Effortless Integration, Faster Development
The low-profile design of MT688 allows seamless integration into space-constrained devices, while its wide field of view (72° x 54°) enhances scanning coverage, enabling quick and accurate barcode capture from various angles. This streamlined design reduces development time and simplifies assembly, making it ideal for compact scanning solutions in retail, logistics, and access control applications.
Easy and Flexible Operations
MT688 embedded scan engine enhances design flexibility by offering various output interfaces with USB HID, USB VCP, and UART, fulfilling diverse industrial needs of communication methods as well as enabling users to easily configure the reading modes and scanner settings according to preference.

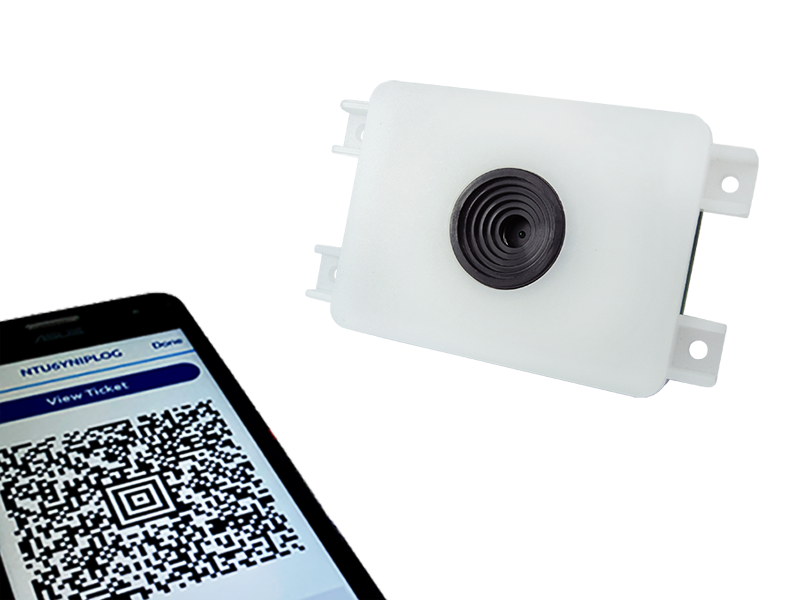

Optimized for Mobile Barcodes
With an enhanced optical design and advanced decoding algorithm, MT688 seamlessly scans all 1D and 2D barcodes on paper labels (matte or glossy), mobile screens, and LCD displays. This capability enables businesses to expand into eCoupons, eTickets, digital IDs, and mobile payment applications with ease.
Bi-directional Communication
A set of commands is supported to enable the host device to configure all the functions of MT688 thereby fulfilling dynamic configurations demand. With multiple interfaces (USB HID, USB VCP, UART) available, MT688 fulfills diverse industrial needs of communication methods as well as enabling users to easily configure the reading modes and scanner settings according to preference.
SPECIFICATIONS
7mil/ 0.175mm (2D)
Vertical 54°
12pin ZIF (pitch=0.5mm)
3.3VDC (Customizable)
USB HID
USB VCP
RS485
EAN-13, EAN-8, UPC-A, UPC-E, Code 39, Code 128, ISBN, Code 93, Code 11, GS1-128, GS1 Databar, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Codabar, Standard 2 of 5, MSI Plessey, GS1 Composite
2D Symbologies:
PDF417, Data Matrix, QR Code, Aztec, MaxiCode
(requires housing that is designed for ESD protection and stray from electric fields)
