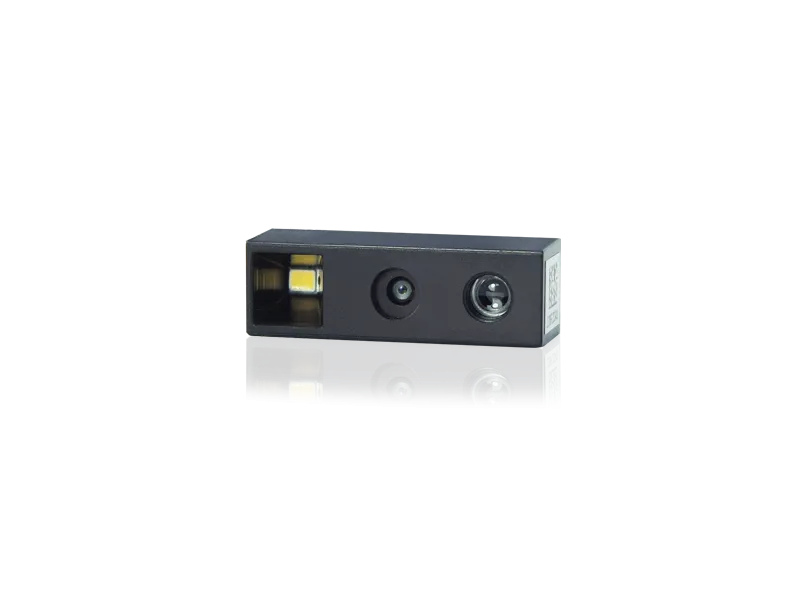

MT89V 2D Scan Engine
Why a Slim 2D Scan Engine Simplifies Device Integration
Modern embedded devices require compact scanning components that deliver high performance without increasing design complexity. A slim 2D scan engine allows manufacturers to integrate reliable barcode scanning into space-constrained products while maintaining fast decoding speed and cost efficiency across retail, logistics, mobile POS, and consumer electronics applications.
How a Compact 2D Scan Engine Delivers Efficient Scanning
The 2D Scan Engine features a slim form factor with electrical and mechanical compatibility with many popular scan engines on the market. Powered by advanced decoding algorithms, it provides fast and responsive barcode capture while reducing development time and integration cost for OEM devices.
- Slim and compact design for easy OEM integration
- Mechanically and electrically compatible with mainstream scan engines
- Advanced decoding algorithm for fast scanning performance
- Reads high-density barcodes down to 3 mil
- Reading distance up to 350 mm
- Reliable scanning for both paper and mobile screen barcodes
View: https://scankit.istaging.com/TT-20221201-001/TT-20221201-001.html
-
Retail -
Field Service -
Mobile POS -
Inventory
FEATURES
Compact Form Factor for Easy and Efficient Integration

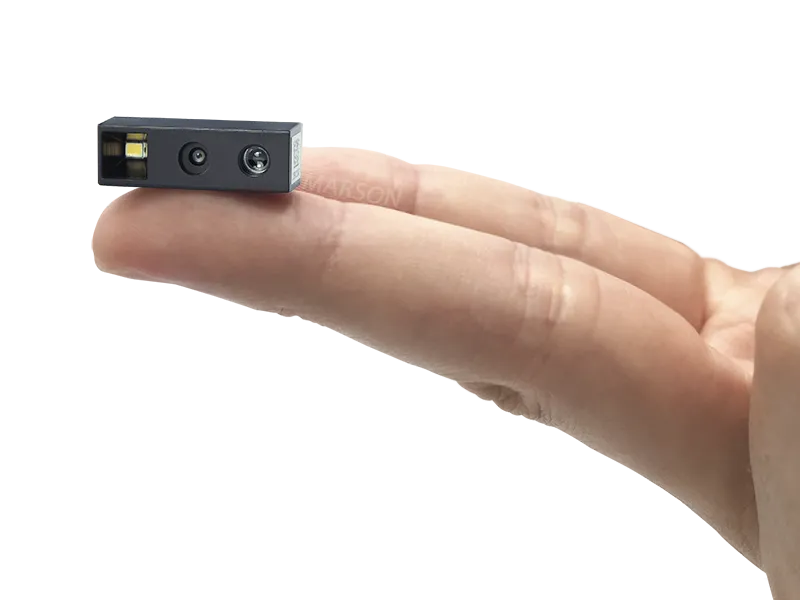

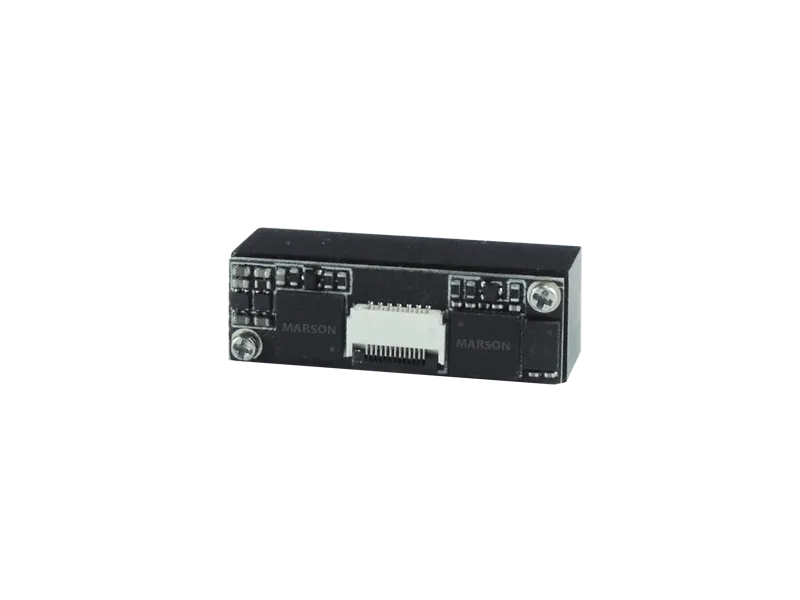

The 2D scan engine is designed with a slim footprint (W21.5 × L8.5 × H7.1 mm) and weighs less than 2 grams, making it ideal for devices with limited internal space. Its electrical interface and pin configuration align closely with widely used 2D scan engines, helping developers simplify integration while reducing engineering time and overall development cost.
Reliable Wide-Range Barcode Reading
Built to perform in environments such as retail and inventory operations, the scan engine delivers consistent decoding performance from close range to longer distances. Its adaptive scanning technology enables accurate capture of high-density barcodes as small as 3 mil, while standard barcodes can be read from distances reaching up to 350 mm.
Optimized for Both Screen and Printed Barcodes
An improved optical design combined with advanced decoding algorithms enables the scan engine to read barcodes from printed labels as well as digital displays. This capability ensures dependable performance in modern applications such as eCoupons, eTickets, mobile payments, and digital identity verification.
Flexible Configuration for Multiple System Requirements
With a comprehensive command set, the scan engine allows host devices to easily adjust scanning functions, reading modes, and operating parameters. Its adaptable architecture supports a wide range of communication environments, making it suitable for diverse applications across retail, logistics, and mobile solutions.
SPECIFICATIONS
Visible red LED
Vertical 33°
5 Mil Code39: 42 ~ 204mm
13 Mil UPC/EAN: 45 ~ 350mm
15 Mil QR Code: 28 ~ 246mm
10 Mil Data Matrix: 37 ~ 150mm
6.67 Mil PDF417: 46 ~ 152mm
USB HID
USB VCP
UPC-A, UPC-E, EAN-8, EAN-13, ISBN, ISSN, Codabar, Code 11, Code 39, Code 32, Code 93, Code 128, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5
Standard 2 of 5, Plessey, MSI Plessey, Febraban, Composite, GS1 Databar
2D Symbologies:
QR Code, Micro QR Code, PDF417, MicroPDF417, Data Matrix, Aztec, MaxiCode, HanXin, DotCode
(requires housing that is designed for ESD protection and stray from electric fields)
(P/N: 9017-2700000, QTY: 1)
(P/N: 4200-1425110, QTY: 2)
