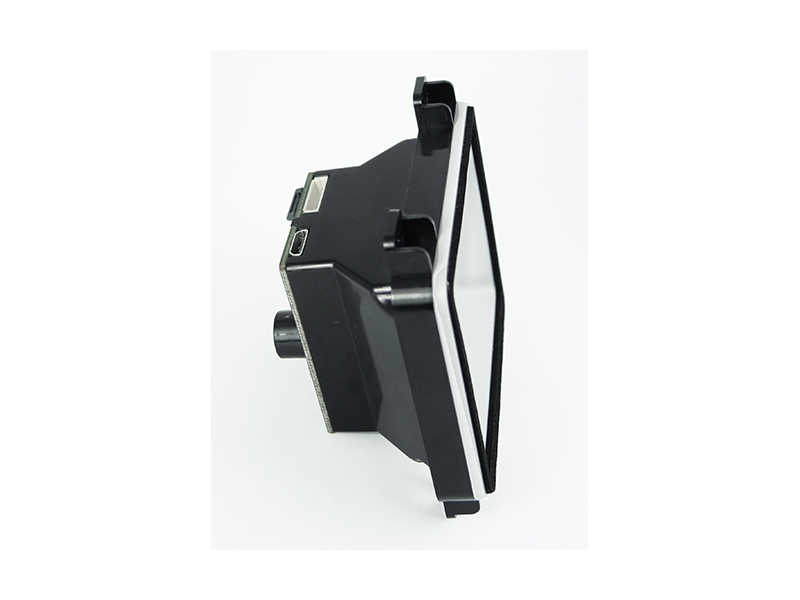

MT684 2D Scan Engine
Why Wide-Angle Scan Engines Are Ideal for Mobile and Contact Scanning
Mobile barcode workflows demand engines that capture codes instantly at close range and from broad angles. Wide-angle optics make contact scanning effortless, enabling smooth and fast reading of barcodes displayed on phones—crucial for retail checkout, transit gates, and access control scenarios.
How Ready-to-Integrate Design Accelerates Development
A compact enclosure, mobile-optimized decoding, and easy mechanical alignment simplify system integration for space-restricted devices. With flexible interface options and reliable omnidirectional performance, it reduces development time while ensuring consistent, dependable scanning across diverse applications.
- Large wide-angle field of view (68° × 50°) for effortless contact scanning
- Optimized for reading barcodes on mobile displays
- Compact, easy-to-integrate enclosure
- Multiple interfaces for flexible system compatibility
- Omnidirectional and snappy decoding performance
-
Retail -
Mobile POS -
Access Control -
Public Transport
FEATURES
Omnidirectional, Snappy Scanning
Built with highly sensitive image sensor, the scan engines MT684 not only automatically captures any moving barcode at close range, but also delivers omnidirectional scanning in any direction, eliminating the need to align the barcode. As a result, lines are kept moving and wait time is minimized.
Large Field of View
With the largest field of view, 68° horizontal degrees, and 50° of vertical degrees of wide scan angle, MT684 2D scan engine is capable of scanning the widest barcode from nearly contact to 180mm away. As a result, MT684 is suitable to be integrated into device with very limited reading distance in a constraint space.
Easy and Flexible Operations
MT684 embedded scan engine enhances design flexibility by offering various output interfaces with USB HID, USB VCP, and UART, fulfilling diverse industrial needs of communication methods as well as enabling users to easily configure the reading modes and scanner settings according to preference.
Mobile-Friendly Scanning
With enhanced optical design and the latest decode algorithm, MT684 scan engine virtually scan all 1D and 2D barcodes printed on any surface, either paper-based label with matte or glossy surface or mobile phone display and LCD screen. As a result, users may expand their business into many new applications such as eCoupon, eTicket, Digital ID cards, and mobile payments.
SPECIFICATIONS
10mil/ 0.25mm (2D barcode)
Vertical 50°
15 Mil Code 128: 5 ~ 143 mm
15 Mil QR Code: 2 ~ 119 mm
12pin ZIF (pitch=0.5mm)
9pin Wafer Connector (pitch=1.0mm)
5 VDC (USB)
USB HID
USB VCP
2D Symbologies: QR Code, Micro QR Code, PDF417, MicroPDF417, Data Matrix, Aztec, MaxiCode, Han Xin, Code16K
(requires housing that is designed for ESD protection and stray from electric fields)
Download
Enter your info for free access to Marson downloads.

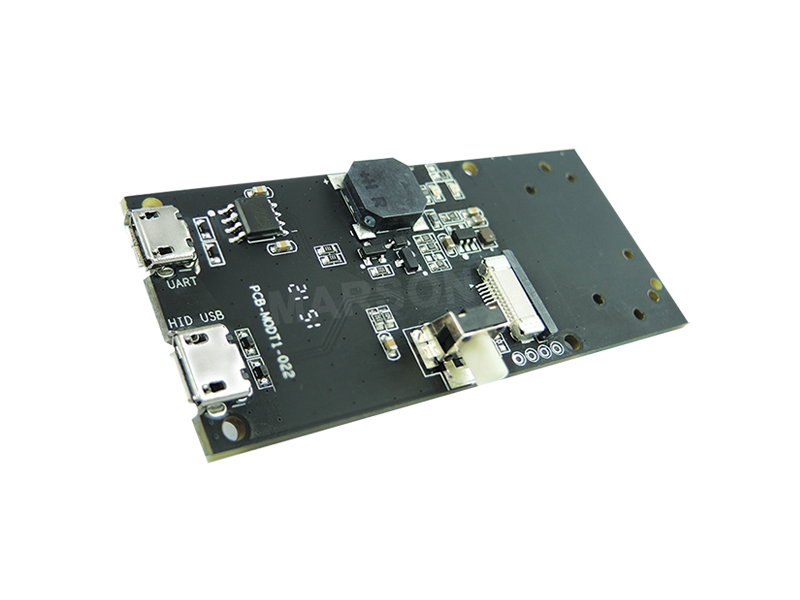

RECOMMENDED PRODUCT
