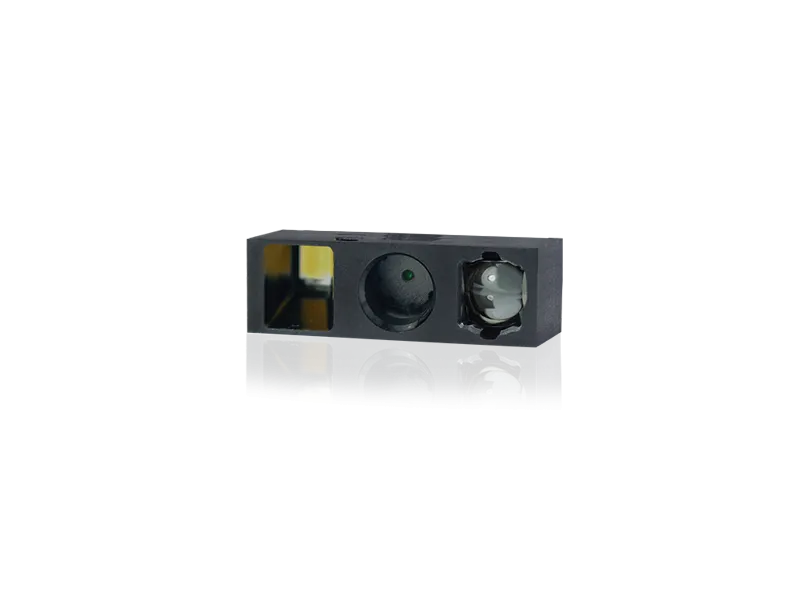

MT88DW Wide Angle 2D Scan Engine
Why Wide-Angle Scan Engines Improve Close-Range Scanning
MIn applications such as mobile POS, access control terminals, and public transportation systems, users often scan barcodes at very short distances and from different angles. A wide-angle scan engine simplifies the scanning process by expanding the capture area, allowing faster and more intuitive operation while reducing alignment effort in busy or confined environments.
How an Ultra-Wide Field of View Improves Near-Field Performance
This wide-angle 2D scan engine integrates an expansive 67.8° × 53.5° field of view with optics optimized for close-range scanning. It enables quick barcode capture from distances as short as 14 mm, while advanced decoding technology ensures consistent reading of major 2D barcode formats. This makes it an excellent solution for compact devices that require responsive close-range scanning.
- Optimized for close-range, wide-angle barcode reading
- Ultra-wide 67.8° × 53.5° scan angle
- Minimum focus from only 14 mm away
- Lightweight and compact structure for embedded designs
- Flexible configuration and multiple interface options
New product available for free testing. For detailed conditions, please contact our sales representative.
-
Mobile POS -
Access Control -
Public Transport
FEATURES
Superior Performance for Near-Field Scanning
Equipped with industry-leading optics providing a wide 67.8° × 53.5° field of view, together with advanced decoding technology, MT88DW delivers excellent results in near-field scanning scenarios. Its ability to read barcodes from extremely short distances makes it well suited for integration into devices such as ticketing terminals or coffee machines where scanning space is limited.
Optimized for Mobile Barcode Applications
With enhanced optical architecture and modern decoding algorithms, MT88DW easily reads both printed barcodes and those displayed on mobile screens. This capability enables support for modern digital services such as eCoupons, eTickets, digital ID verification, and mobile payment applications.
Flexible Configuration and Easy Operation
The Wide Angle 2D Scan Engine supports a comprehensive command set, allowing host systems to configure scanning behavior and operational parameters. With multiple interface options including USB HID, USB VCP, and UART, MT88DW supports diverse communication requirements and allows developers to easily customize scanning modes.
Designed for Fast and Simple Integration

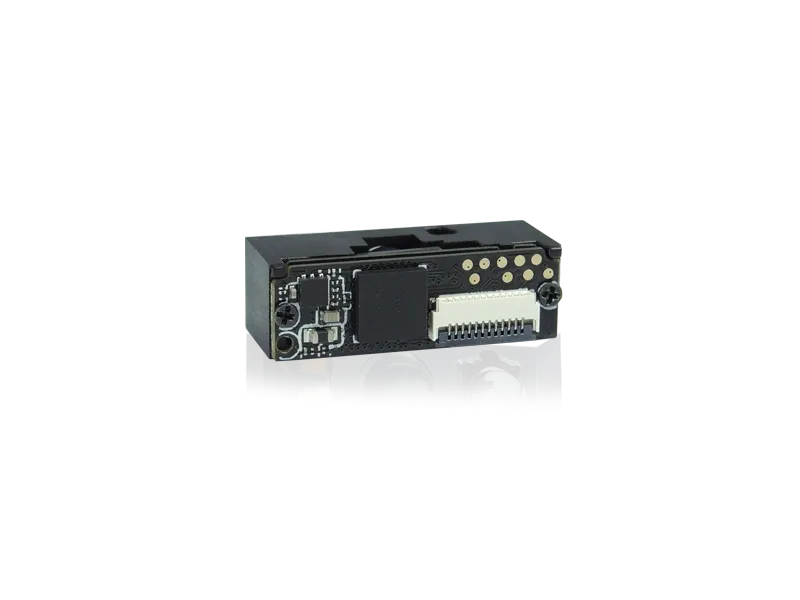

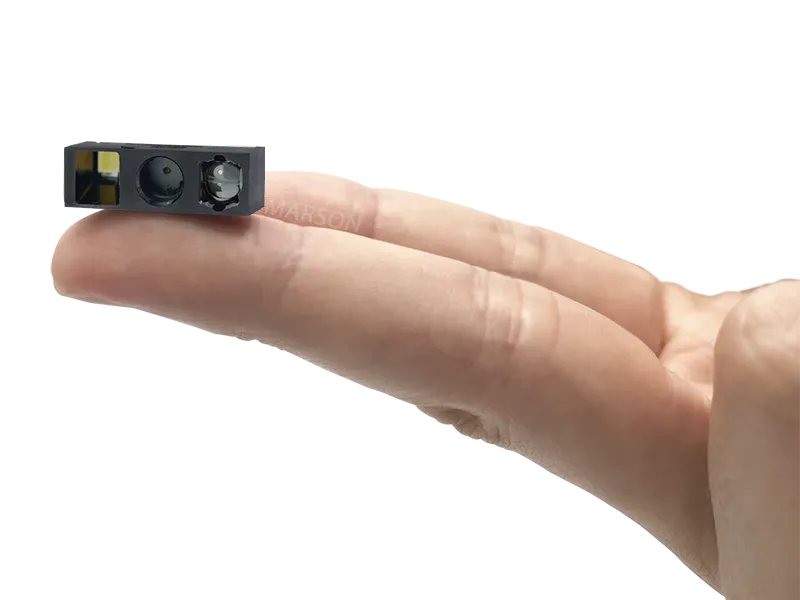

Featuring a compact size of W21.5 × L9.9 × H7 mm and weighing less than 2 grams, MT88DW can be integrated into most space-constrained devices. Its mechanical dimensions, mounting points, electrical interface, and pin assignments are highly compatible with widely used 2D scan engines, helping reduce development time and integration costs.
FAQ Read More
Q1: Can you handle custom OEM/ODM designs?
Ans: Yes. We provide flexible OEM/ODM services and work closely with customers to develop customized designs and manufacturing solutions based on their specific requirements. With extensive experience in product development and manufacturing, our team supports projects from initial design and prototyping through mass production, helping customers shorten development time, optimize costs, and bring products to market efficiently.
Q2: What is your typical lead time and MOQ?
Ans: Our standard MOQ is 100 units, and the typical lead time is approximately 30~60 days depending on material availability. Lead times may be shortened when a production forecast is provided in advance.
Q3: What certifications do your products comply with?
Ans: Certification requirements vary depending on the product. Typically, our wired products comply with CE and FCC requirements. Wireless products generally comply with FCC and TELEC requirements. Laser products typically comply with IEC 60825-1, while LED products generally comply with IEC 62471.
Q4: Can you provide samples for testing and evaluation?
Ans: Yes. We can provide samples for testing and evaluation before mass production. Sample availability, pricing, and lead time may vary depending on the product and configuration. Please contact us with your application requirements for further details.
Q5: How can I request a quotation for this product?
Ans: Click the Inquiry button in the Product page, then click the「Inquiry」tab on the right side of the browser on a PC, or at the bottom of the screen on a mobile device. Next, click 「Inquiry」 to open the inquiry form and provide the required information. Our sales team will review your request and get back to you accordingly.
SPECIFICATIONS
Visible red LED
Vertical 53.5°
5 Mil Code39: 23 ~ 87mm
13 Mil UPC/EAN: 27 ~ 135mm
15 Mil QR Code: 14 ~ 95mm
10 Mil Data Matrix: 18 ~ 75mm
6.67 Mil PDF417: 22 ~ 78mm
USB HID
USB VCP
Code128, Code39, Code93, EAN-13, EAN-8, UPC-E, UPC-A, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar, Codebar, MSI Plessey, Code 11, Standard 2 of 5, ChinaPost 2 of 5, GS1 Composite
2D Symbologies:
PDF417, MicroPDF417, Data Matrix, MaxiCode, QR Code, Micro QR Code, Aztec, Han Xin, GridMatrix
Postal Codes:
Japanese Post, Australian Post, Korean35, MailMark, Netherlands KIX, UK Postal, US Postnet, US Planet, USPS_4CB
(requires housing that is designed for ESD protection and stray from electric fields)
(P/N: 67XX-1009X12, QTY: 1)
(P/N: 4202-1404110, QTY: 2)
