MT688T 2D Scan Module
Why Wide-Angle 2D Scan Modules Improve Self-Service Applications

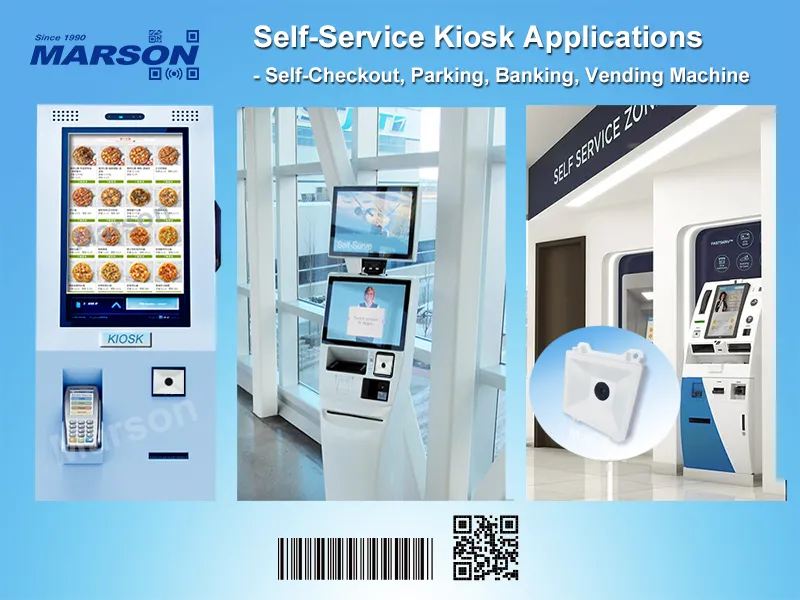

Self-service kiosks, ticketing machines, and parking systems often require fast barcode scanning within limited spaces and from varying angles. A wide-angle 2D scan module enables users to scan naturally without precise alignment, while high-speed imaging helps maintain responsive performance when barcodes are presented quickly or from moving objects.
How Wide FOV and High-Speed Imaging Enhance Scanning

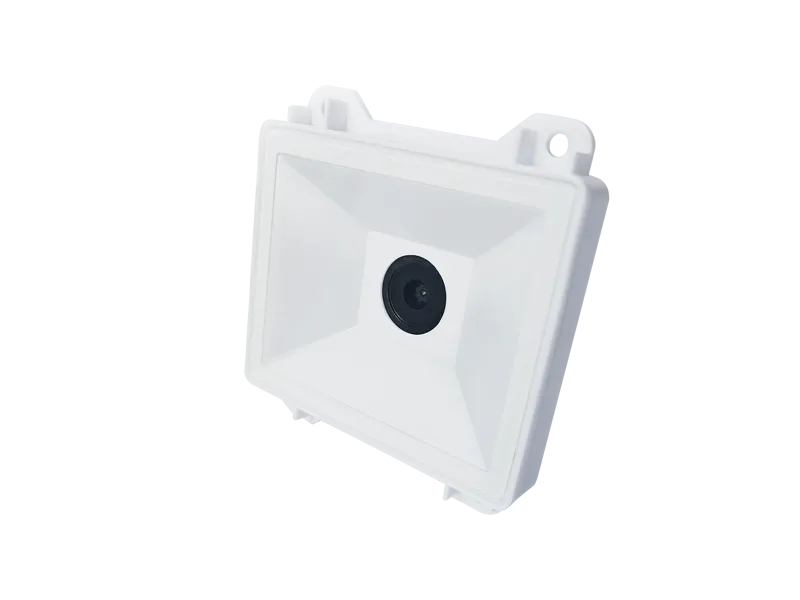

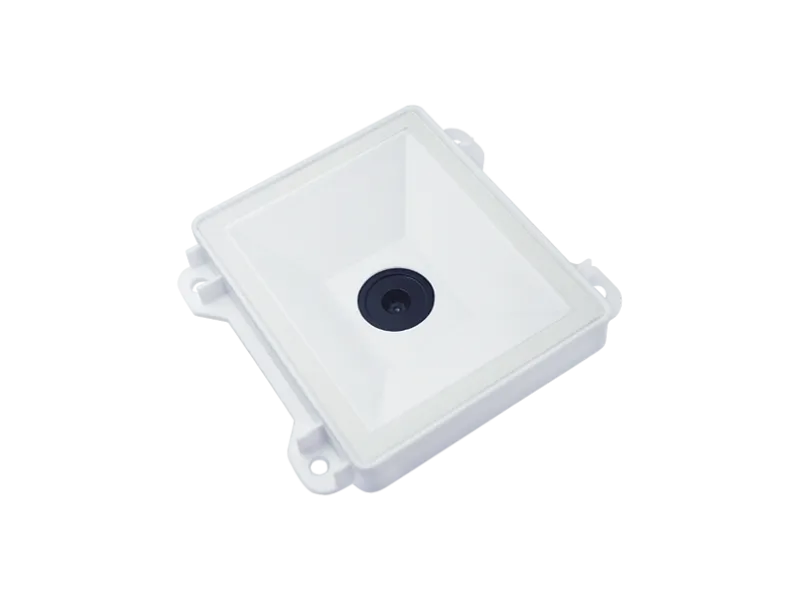

Scan Module MT688T combines a 75.1° × 58.4° FOV with a built-in protective window, multiple interfaces, and a Micro USB port to simplify integration into kiosks, ticketing, parking, and embedded applications.
- Wide 75.1° × 58.4° field of view
- Built-in protective window for easy integration
- Multiple interface options for flexible connectivity
- Built-in Micro USB port for instant USB connection
- Ideal for kiosks, bus ticketing, and parking systems
-
Retail -
Mobile POS -

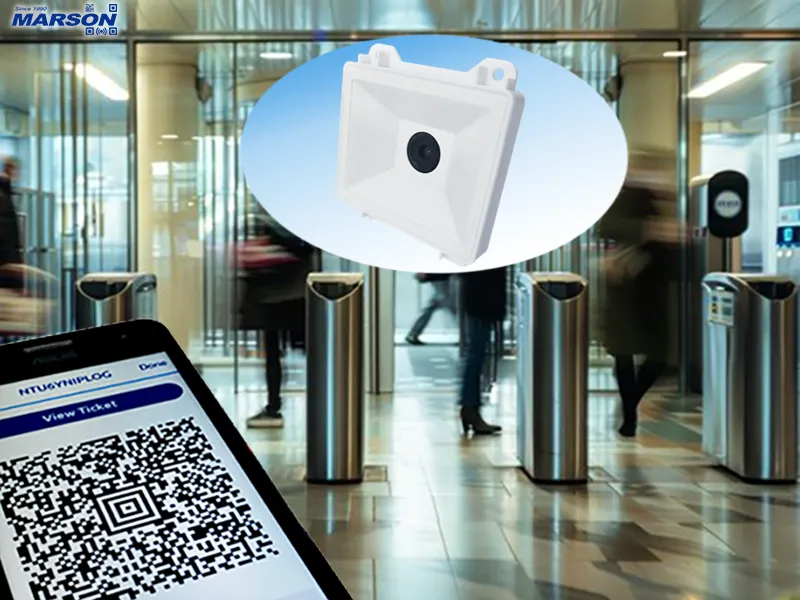

Access Control -
Public Transport
FEATURES
Wide Field of View for Easy Barcode Capture
MT688T features an exceptionally wide 75.1° × 58.4° field of view, allowing users to capture barcodes from a broad scanning area without precise alignment. This wide-angle performance is particularly beneficial for self-service kiosks, ticketing machines, and parking systems where users may present barcodes at different positions and angles.
Built-in Protective Window for Simplified Integration
MT688T incorporates a built-in protective window that shields the optical components while eliminating the need for an additional external window. This integrated design simplifies mechanical design and installation, helping reduce integration effort for embedded scanning applications.
Flexible Interfaces for Diverse Applications
MT688T provides multiple connectivity options through its 9-pin Wafer connector, 12-pin ZIF connector, and Micro USB port. It supports USB HID, USB VCP, UART TTL, and RS232 interfaces, giving device manufacturers the flexibility to select the communication method that best fits their system architecture.
Instant USB Connectivity with Built-in Micro USB
The integrated Micro USB port provides a convenient connection option for popular USB interfaces, simplifying development, testing, and system integration. Combined with its compact embedded design, MT688T can be easily incorporated into kiosks, transportation equipment, parking systems, and other self-service devices.
FAQ Read More
Q1: Can you handle custom OEM/ODM designs?
Ans: Yes. We provide flexible OEM/ODM services and work closely with customers to develop customized designs and manufacturing solutions based on their specific requirements. With extensive experience in product development and manufacturing, our team supports projects from initial design and prototyping through mass production, helping customers shorten development time, optimize costs, and bring products to market efficiently.
Q2: What is your typical lead time and MOQ?
Ans: Our standard MOQ is 100 units, and the typical lead time is approximately 30~60 days depending on material availability. Lead times may be shortened when a production forecast is provided in advance.
Q3: What certifications do your products comply with?
Ans: Certification requirements vary depending on the product. Typically, our wired products comply with CE and FCC requirements. Wireless products generally comply with FCC and TELEC requirements. Laser products typically comply with IEC 60825-1, while LED products generally comply with IEC 62471.
Q4: Can you provide samples for testing and evaluation?
Ans: Yes. We can provide samples for testing and evaluation before mass production. Sample availability, pricing, and lead time may vary depending on the product and configuration. Please contact us with your application requirements for further details.
Q5: How can I request a quotation for this product?
Ans: Click the Inquiry button in the Product page, then click the「Inquiry」tab on the right side of the browser on a PC, or at the bottom of the screen on a mobile device. Next, click 「Inquiry」 to open the inquiry form and provide the required information. Our sales team will review your request and get back to you accordingly.
SPECIFICATIONS
UPC/EAN 13Mil: 10 ~ 176mm
Data Matrix 10Mil: 0 ~ 71mm
QR Code 15Mil: 0 ~ 105mm
12pin ZIF (pitch=0.5mm)
Micro USB Port
Software Trigger
Code128, Code39, Code 39 Full ASCII, Code 32, Code93, UPC-A, UPC-E, UPC-E1, UPC-E0, EAN-8, EAN-13, Bookland EAN/ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Chinese 2 of 5, Codabar, Code 11, MSI, ISBT, GS1-128, GS1 Databar14, GS1 Databar Limited, GS1 Databar Expanded, Postal Codes
2D Symbologies:
QR Code, Data Matrix, PDF417, Micro QR Code, MicroPDF417, Han Xin, Grid Matrix, Aztec, MaxiCode, GS1 QR Code, GS1 Data Matrix, GS1 Composite(CC-A/CC-B/CC-C)
(requires housing that is designed for ESD protection and stray from electric fields)
