High-Resolution Imaging for Accurate Barcode Capture

MT688K features a 1280 × 800 1-megapixel image sensor that captures clear and detailed barcode images for reliable decoding. Combined with a 100 frames per second scan rate, its high-resolution imaging provides responsive scanning performance for self-service and embedded applications.

Wide Field of View for Easy Scanning

With a 75° horizontal and 60.2° vertical field of view, MT688K captures barcodes across a broad scanning area without requiring precise alignment. This makes it well suited for kiosks, ticketing systems, parking equipment, and other applications where users may present barcodes from different positions and angles.

Wide Operating Temperature for Demanding Environments

MT688K supports an extended operating temperature range from -40°C to 70°C, enabling reliable barcode scanning across a wide range of environmental conditions. This makes the module suitable for applications exposed to cold or high-temperature environments, including transportation, outdoor equipment, and industrial installations.

Extended Reading Range for Flexible Installation

MT688K provides flexible reading performance across different barcode types, with a typical depth of field reaching up to 306 mm for 13 mil UPC/EAN codes. This extended reading range allows greater flexibility when positioning the scanner within embedded equipment and helps accommodate different scanning distances.

Built-In Protective Window for Simplified Integration

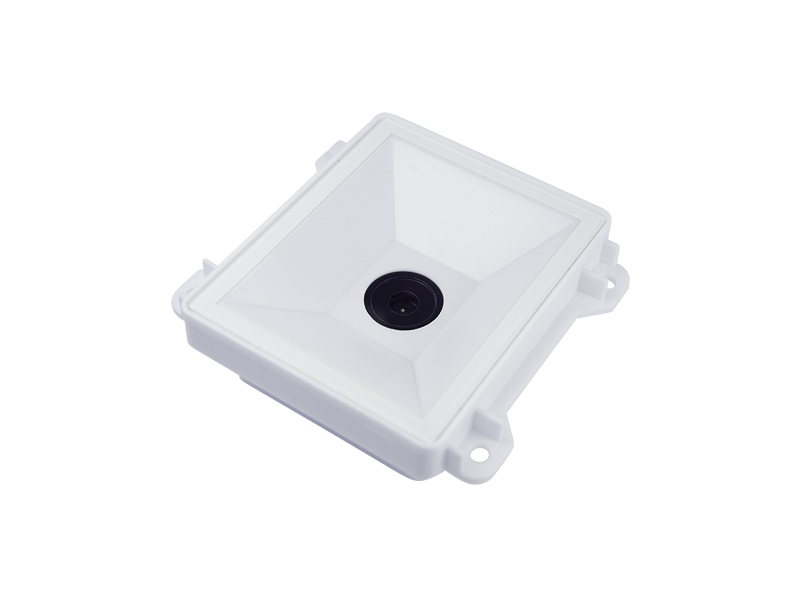

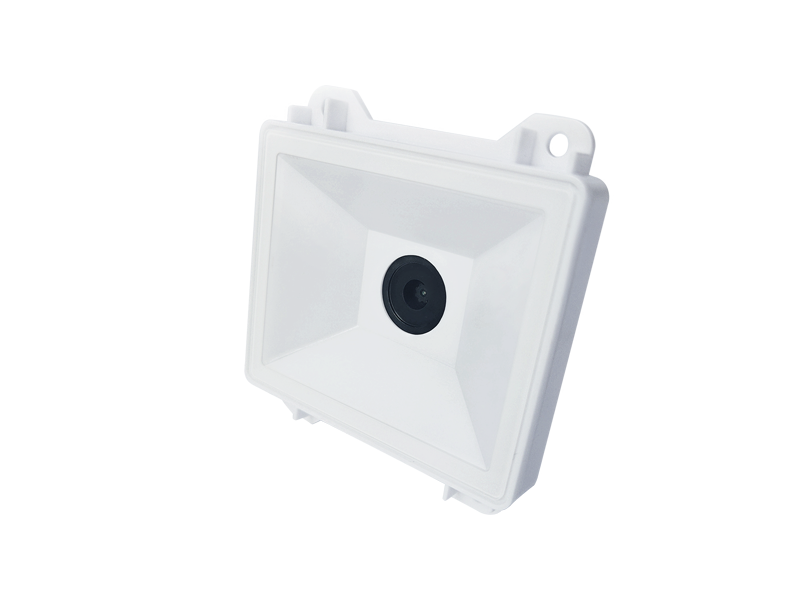

MT688K incorporates a protective window to shield the optical components while eliminating the need for an additional external window. This integrated design simplifies mechanical design and installation while reducing the effort required to integrate the scan module into finished products.

Multiple Interfaces for Flexible Integration

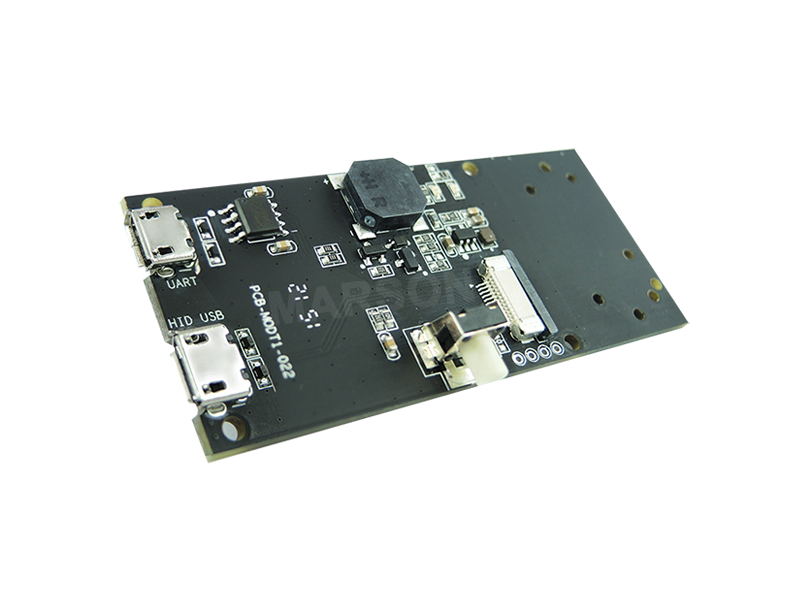

MT688K provides multiple connection options through its 9-pin Wafer connector, 12-pin ZIF connector, and Micro USB port. Supporting USB HID, USB VCP, UART TTL, and RS232, it provides flexible connectivity for different embedded system architectures and development requirements.

FAQ  Read More

Q1: Can you handle custom OEM/ODM designs?

Ans: Yes. We provide flexible OEM/ODM services and work closely with customers to develop customized designs and manufacturing solutions based on their specific requirements. With extensive experience in product development and manufacturing, our team supports projects from initial design and prototyping through mass production, helping customers shorten development time, optimize costs, and bring products to market efficiently.

Q2: What is your typical lead time and MOQ?

Ans: Our standard MOQ is 100 units, and the typical lead time is approximately 30~60 days depending on material availability. Lead times may be shortened when a production forecast is provided in advance.

Q3: What certifications do your products comply with?

Ans: Certification requirements vary depending on the product. Typically, our wired products comply with CE and FCC requirements. Wireless products generally comply with FCC and TELEC requirements. Laser products typically comply with IEC 60825-1, while LED products generally comply with IEC 62471.

Q4: Can you provide samples for testing and evaluation?

Ans: Yes. We can provide samples for testing and evaluation before mass production. Sample availability, pricing, and lead time may vary depending on the product and configuration. Please contact us with your application requirements for further details.
