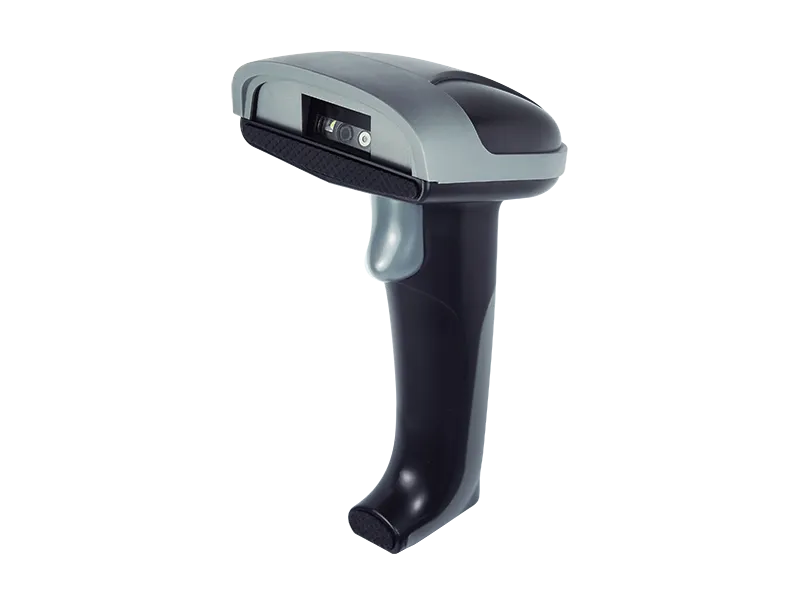

MT8258L 2D Handheld Scanner

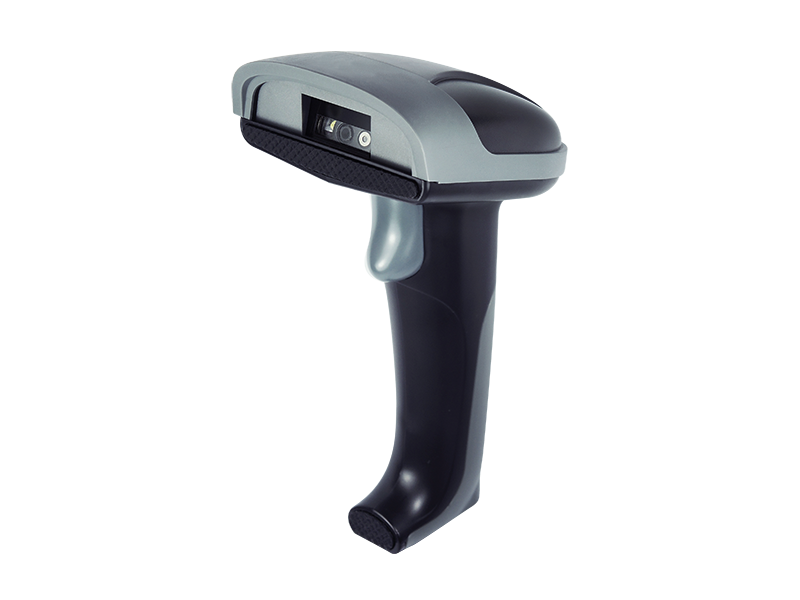

  • MT8258L_2D_Handheld_Scanner_Marson_New_800x600

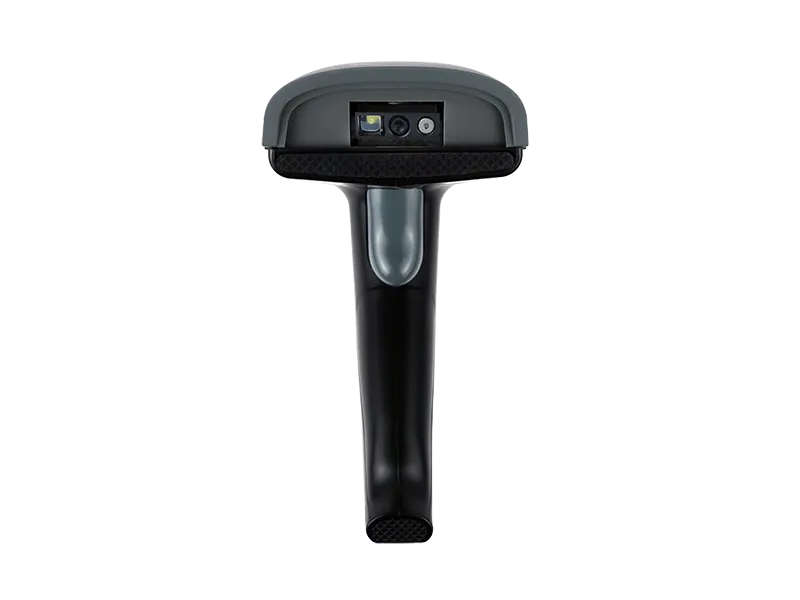

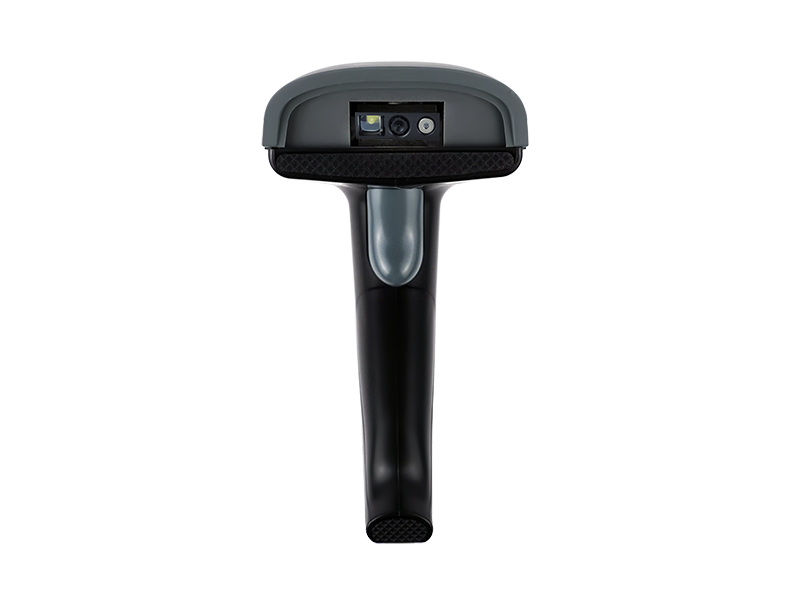

  • MT8258L_2D_Handheld_Scanner_Marson_F_800x600

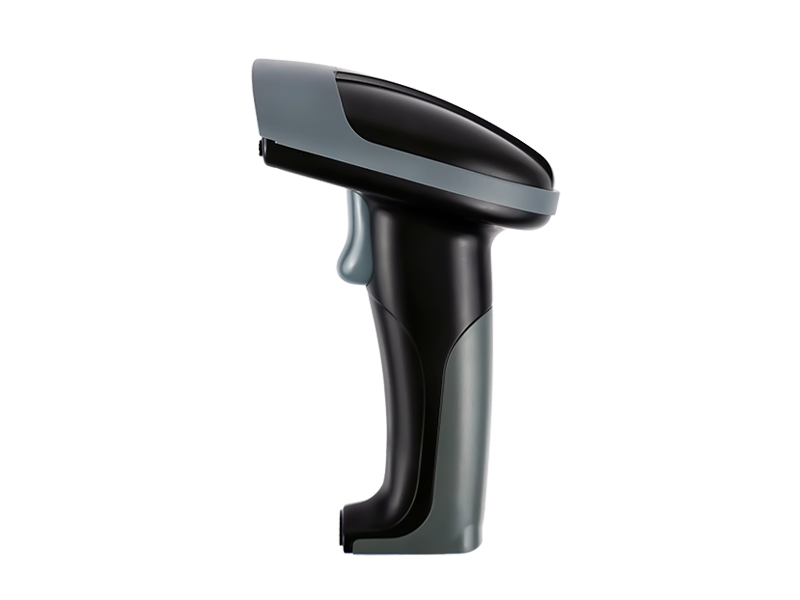

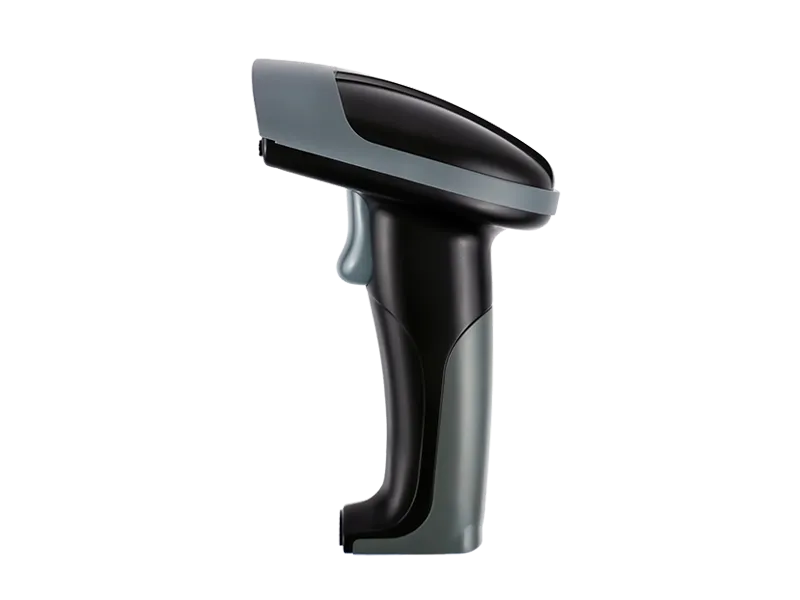

  • MT8258L_2D_Handheld_Scanner_Marson_R-side_800x600

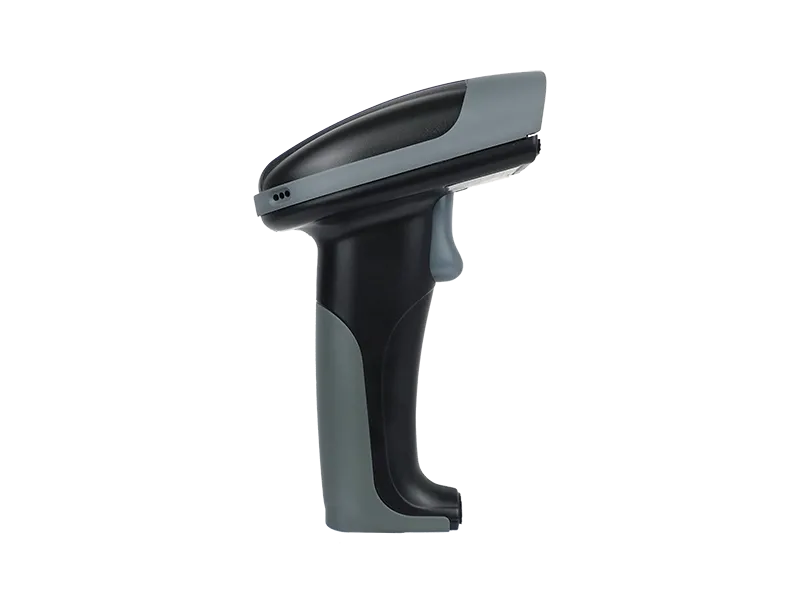

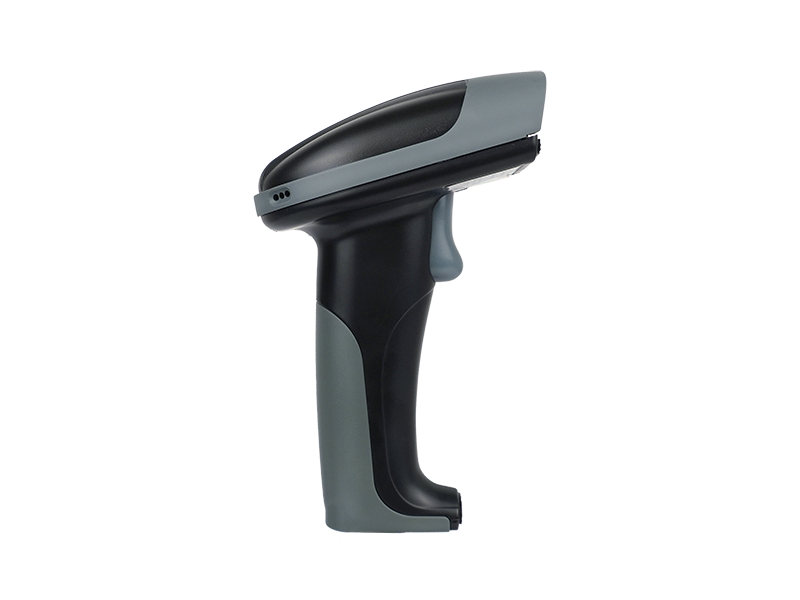

  • MT8258L_2D_Handheld_Scanner_Marson_LL-side_800x600
  • MT8258L_2D_Handheld_Scanner_Retail_application_Marson_800x600
  • MT8258L_2D_Handheld_Scanner__Mobile_Friendly_Scanning_Marson_800x600
  • MT8258L_2D_Handheld_Scanner_Logistics_application_Marson_800x600
  • MT8258LM_2D_Handheld_Scanner_Marson_LL-side_800x600

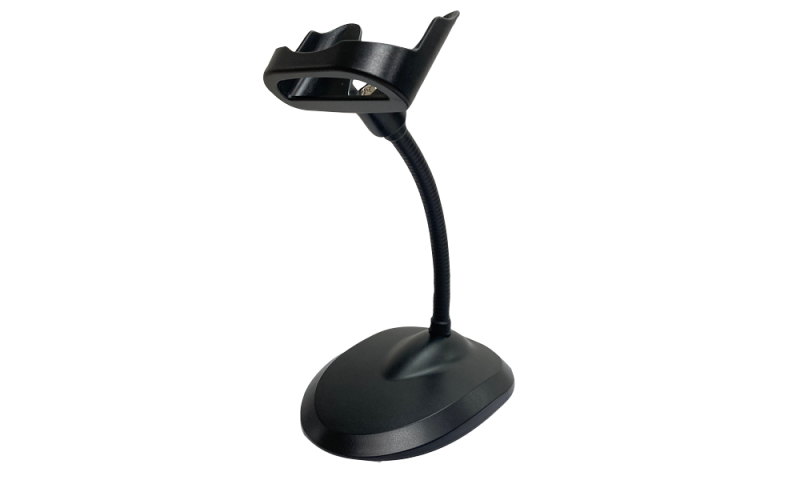

  • MT610s-H
  • MT8258L_2D_Handheld_Scanner_Marson_New_800x600
  • MT8258L_2D_Handheld_Scanner_Marson_F_800x600
  • MT8258L_2D_Handheld_Scanner_Marson_R-side_800x600
  • MT8258L_2D_Handheld_Scanner_Marson_LL-side_800x600
  • MT8258L_2D_Handheld_Scanner_Retail_application_Marson_800x600
  • MT8258L_2D_Handheld_Scanner__Mobile_Friendly_Scanning_Marson_800x600
  • MT8258L_2D_Handheld_Scanner_Logistics_application_Marson_800x600
  • MT8258LM_2D_Handheld_Scanner_Marson_LL-side_800x600
  • MT610s-H

Why 2D Handheld Scanner Delivers Industry-Leading Performance
2D handheld barcode scanner MT8258L is engineered with a high-resolution megapixel sensor, fast processing power, and a precision laser aimer to ensure rapid and accurate data capture. Designed for continuous, high-volume use, it supports reliable scanning in retail, logistics, inventory, and manufacturing environments where speed, accuracy, and durability are critical.



How 2D Scanning Technology Boosts Workplace Productivity
With an extended reading distance and advanced decoding capability, MT8258L handheld scanner effortlessly captures high-density, damaged, or low-contrast barcodes, including codes displayed on mobile screens. Its plug-and-play USB connectivity enables seamless integration into existing systems, helping reduce errors, improve workflow efficiency, and increase overall productivity across demanding data-collection operations.



  • High-visibility laser aiming
  • Megapixel image capture
  • Reading distance up to 680mm
  • Supports 1D, 2D, postal codes, and OCR
  • USB plug-and-play connectivity
  • Ergonomic design for all-day use



   Marson_Compare_with_Zebra_icon_145x36

360_View_Icon_20241210 View photo: https://scankit.istaging.com/20241204-MS-001-2/20241204-MS-001-2.html

New product available for free testing. For detailed conditions, please contact our sales representative.

Application
  • Retail
    Retail
  • Logistics
    Logistics
  • Manufacturing
    Manufacturing
  • Inventory
    Inventory
Share:

FEATURES

Precision Laser Aiming
Equipped with a high-visibility crosshair laser, the 2D handheld scanner enables accurate targeting of barcodes for fast and reliable scanning. The laser ensures precise alignment even on small, dense, or difficult-to-position codes, reducing rescans and improving operator efficiency. Ideal for high-volume retail, logistics, inventory, and manufacturing environments, this feature enhances speed and accuracy while minimizing user fatigue during continuous scanning operations.


High-Resolution Image Capture
Featuring a megapixel imaging sensor, the 2D handheld scanner captures clear and detailed barcode images for fast decoding. Its advanced optics support both 1D and 2D barcodes, postal codes, and OCR fonts, including low-contrast or damaged labels. This ensures reliable reading across a wide range of surfaces and environments, enabling seamless data collection in warehouses, production lines, and point-of-sale operations without slowing down workflow or increasing error rates.


Extended Reading Distance

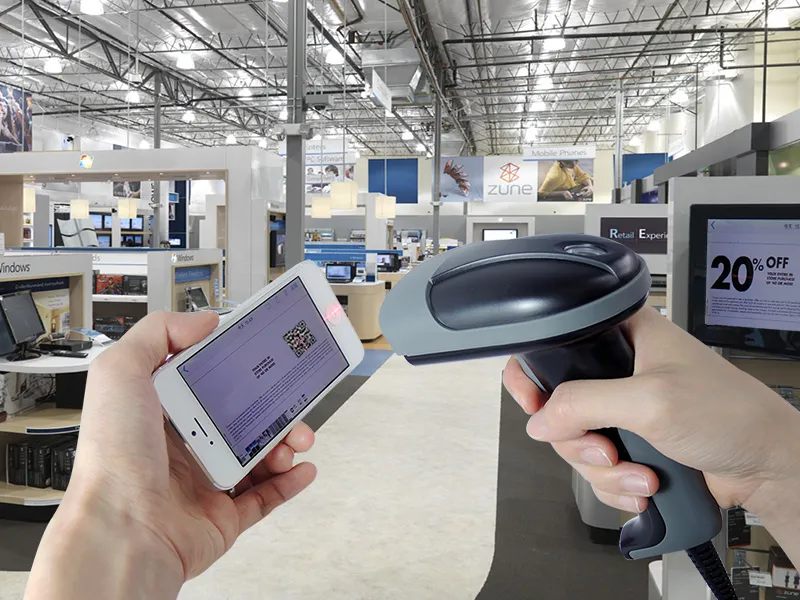

With an extended depth of field reaching up to 680mm for commodity barcodes, the 2D handheld scanner can capture codes from both near and far ranges. This capability allows operators to scan items quickly without repositioning, improving efficiency in busy retail counters, storage shelves, or logistics areas. The long-range reading also supports mobile screen scanning, making it versatile for modern applications that require speed and flexibility in data capture.


Ergonomic USB Connectivity
Designed for all-day use, the 2D handheld scanner combines an ergonomic form factor with plug-and-play USB connectivity, simplifying integration into existing systems. Lightweight and comfortable to hold, it reduces operator fatigue while enabling seamless connection to PCs, POS systems, or inventory management platforms. This feature ensures reliable, high-speed data transfer, helping organizations improve productivity, reduce errors, and maintain smooth workflow across demanding operational environments.



SPECIFICATIONS

Optic & Performance
Light Source
White LED
Visible red Laser
Sensor
1280 x 800
Resolution
3mil
Scan Angle
Horizontal 39°, Vertical 26°
Pitch Angle
±60°
Skew Angle
±60°
Roll Angle
360°
Print Contrast Ratio
10%
Width of Field
200mm (13Mil Code39)
Typical D.O.F (Environment: 800 lux)
3 Mil Code39: 100 ~ 190mm
5 Mil Code39: 70 ~ 290mm
13 Mil UPC/EAN: 50 ~ 680mm
15 Mil QR Code: 30 ~ 370mm
10 Mil Data Matrix: 80 ~ 250mm
6.67 Mil PDF417: 100 ~ 240mm
Physical Characteristics
Dimension
L166 x W71 x H84 mm
Weight
210g (w/ cable)
Color
MT8258L: Black

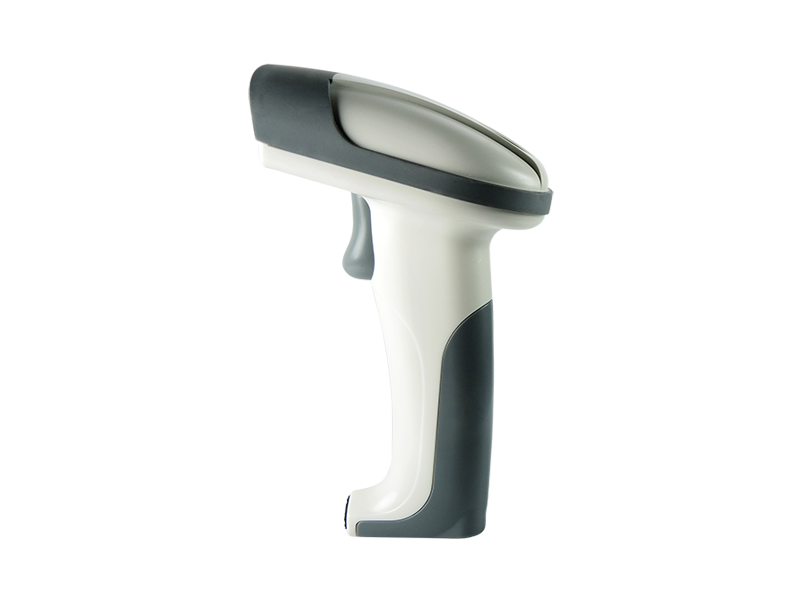

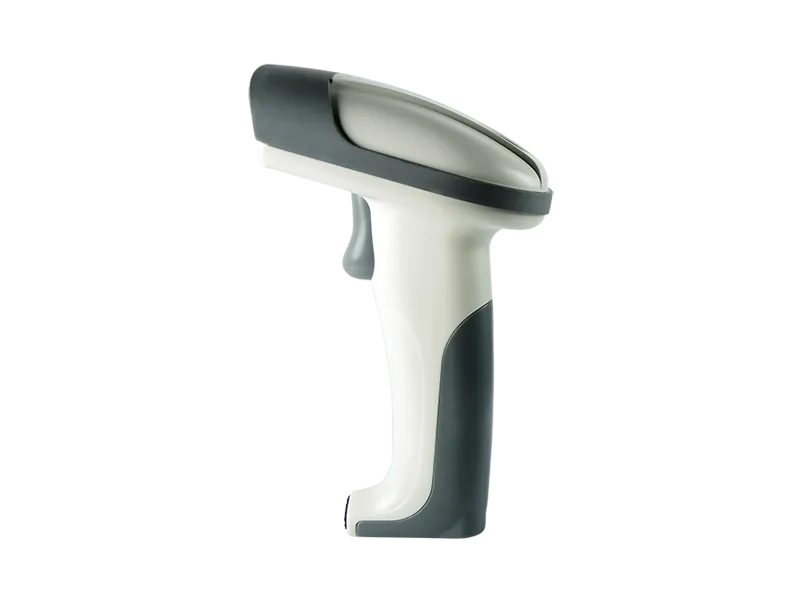

MT8258LM: White
Material
ABS
Connector
USB Type A
Cable
RJ45 to USB A(M) Cable, 2.1M
Trigger
Scan Button
Indicator
LED, Buzzer
Electrical
Operation Voltage
5 VDC ± 5%
Working Current
< 330mA
Standby Current
< 70mA
Connectivity
Interface/Profile
USB HID, USB VCP
User Environment
Operating Temperature
-20 ~ 65°C
Storage Temperature
-40 ~ 70°C
Humidity
0% ~ 95%RH (Non-condensing)
Drop Durability
1.5M
Ambient Light
100,000 Lux (Sunlight)
Decode Capability
Symbologies
1D Symbologies:
Code128, Code39, Code93, EAN-13, EAN-8, UPC-E, UPC-A, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar, Codabar, MSI Plessey, Code 11, Standard 2 of 5, ChinaPost 2 of 5, GS1 Composite

2D Symbologies:
PDF417, MicroPDF417, Data Matrix, MaxiCode, QR Code, Micro QR Code, Aztec, Han Xin, GridMatrix

Postal Codes:
Japanese Post, Australian Post, Korean35, MailMark, Netherlands KIX, UK Postal, US Postnet, US Planet, USPS_4CB

OCR:
OCR-B (Passport MRZ)
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge
EMC/RF
FCC Part 15B Class B, CE EN55032/35
Safety Approval
IEC60825-1 (Class 1)
Environmental
RoHS 2.0
