Marson Barcode Scanner Brand Story

MT8010 1D Contact Scanner

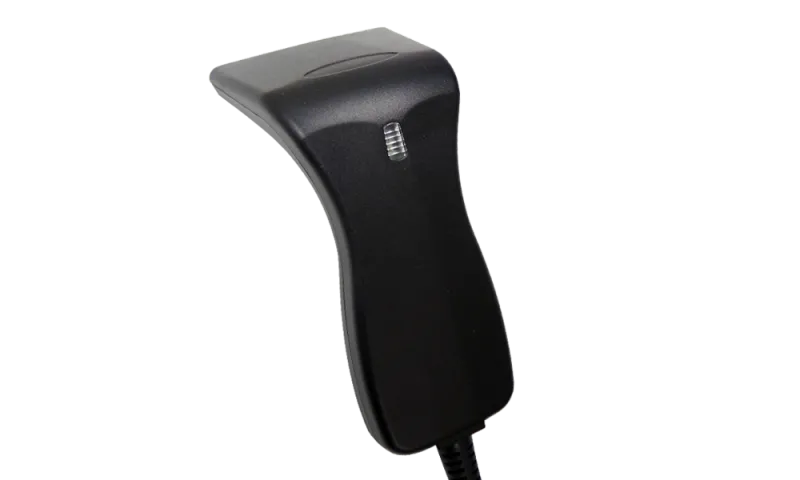

  • MT8010_1000x600
  • contact-scanner-stand

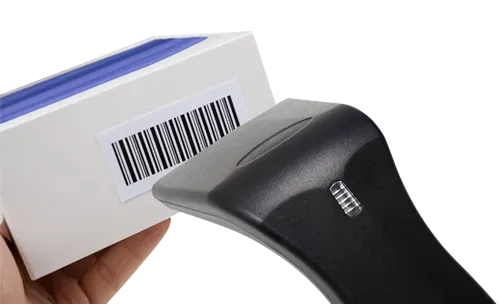

  • MT8010-drug-s

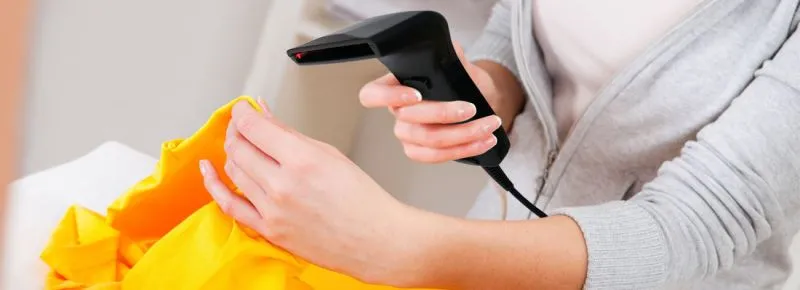

  • MT8010_read

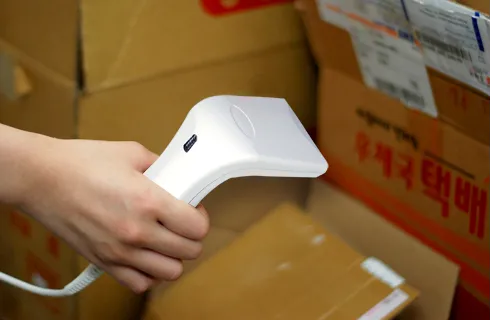

  • MT8010_goods-1
  • MT8010_1000x600
  • contact-scanner-stand
  • MT8010-drug-s
  • MT8010_read
  • MT8010_goods-1

Simple and Powerful Barcode Scanning
MT8010 is a simple and powerful 1D contact barcode scanner with reading range from contact, 0cm to 20cm away, making it a great barcode scanning device for commodity barcodes. MT8010 contact barcode scanner is suitable for various retail applications including convenient store, fashion shop, pharmacy, banking and so on.



。1D / 620sps / Contact
。For scanning commodity barcodes
。Up to 620 scans per second
。Easy configuration with Ez Utility®

Application
  • Retail
    Retail
  • Healthcare
    Healthcare
Share:

FEATURES

Ergonomic and Streamlined Design

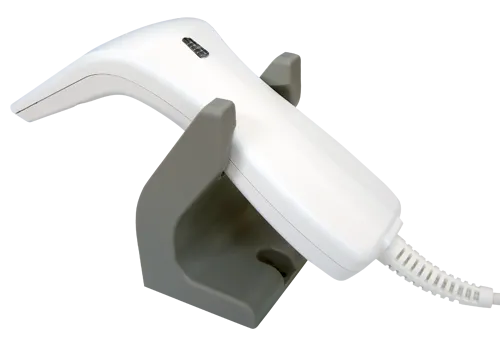

With ergonomic and streamlined mechanical design, MT8010 is very dependable and comfortable when it is held in hands. In addition to the compact and light form factor, the matte surface of MT8010 can withstand long period of use and be easy to clean as well. Compatible with MT8010 contact barcode scanner, MT611 hands-free stand helps users to free up workspace in almost any condition while keeping the scanner close to them.


Outstanding Reliability
MT8010 passes the test of 1.8 meter multiple drops to concrete, ensuring that MT8010 withstand the impact of everyday drops and bumps. Moreover, MT8010 is also equipped with a changeable cable which can endure up to 1 million times of bending. These features guarantee the outstanding reliability of MT8010 and reduce maintenance cost in the long run.


Immunity to Environmental Interference
With auto-adaptive high-speed scanning at a maximum of 620 scans per second based on environment lighting, MT8010 easily captures any barcodes on either printed paper or the LCD screen of smart phone or tablet. MT8010 is also capable of reading barcodes under ambient light condition from complete darkness to direct sunlight making it possible to operate in both indoor and outdoor applications.


The Better User Experience
As classified by Photo-biological Safety Standard EN/IEC 62471, the light source of MT8010 is completely safe for human eyes even after long hours operation. With built-in buzzer and LED, MT8010 provides full variety of Good Read responses such as audible and visual feedback. MT8010 is also easily configured on the host computer by Marson's free user-friendly software tool, Ez Utility®.

SPECIFICATIONS

Optic & Performance
Light Source
635nm visible red LED
Sensor
Linear Image Sensor
Resolution
3Mil/ 0.075mm
Scan Angle
53°
Pitch Angle
±65°
Skew Angle
±50°
Roll Angle
±25°
Print Contrast Ratio
30%
Width of Field
190mm (13Mil Code39)
Typical D.O.F (Environment: 800 lux)
Code39
4 Mil : 0 ~ 56 mm
5 Mil : 0 ~ 91 mm
10 Mil: 0 ~ 228 mm
15 Mil: 0 ~ 352 mm
UPC/EAN
13 Mil: 0 ~ 276 mm
Physical Characteristics
Dimension
L158 x W76 x H64 mm
Weight
120g
Color
Black or White
Material
ABS
Connector
USB Type A
Cable
2.1M (Interchangeable Cable)
Trigger
Scan Button
Indicator
LED, Buzzer
Electrical
Operation Voltage
5 VDC ± 5%
Working Current
< 100mA
Standby Current
< 60mA
Connectivity
Interface/Profile
RS232
USB HID
USB VCP
OPOS
User Environment
Operating Temperature
-20 ~ 50˚C
Storage Temperature
-20 ~ 60˚C
Humidity
0% ~ 95%RH (Non-condensing)
Drop Durability
1.8 M
Ambient Light
100,000 Lux (Sunlight)
Decode Capability
Symbologies
UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge
EMC/RF
FCC Part 15B Class B, CE EN55022/24
Safety Approval
EN/IEC62471 (Exempt Group)
Environmental
WEEE, RoHS 2.0
Accessory
Cable
RJ45 to USB A(M) Cable, 2.1M, Black
(P/N: 7005-9204A51, QTY: 1)
