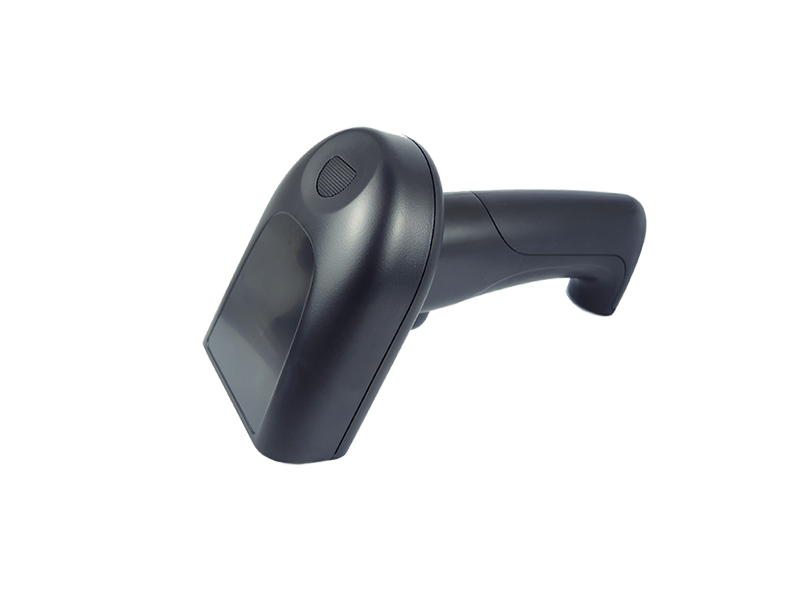

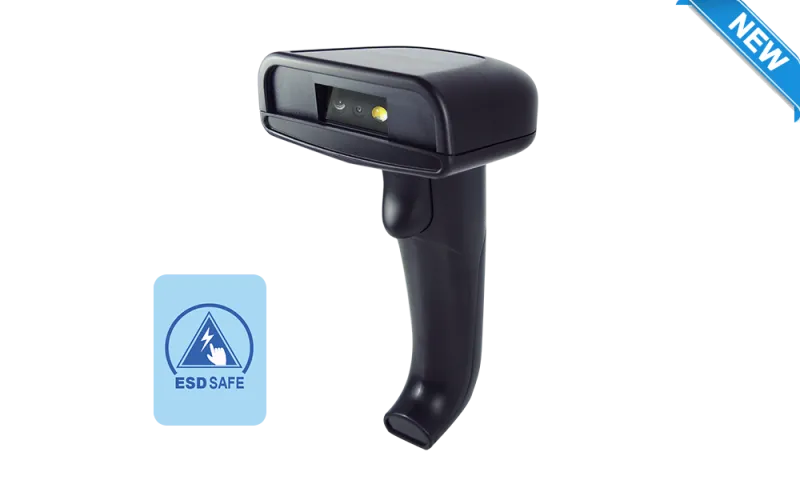

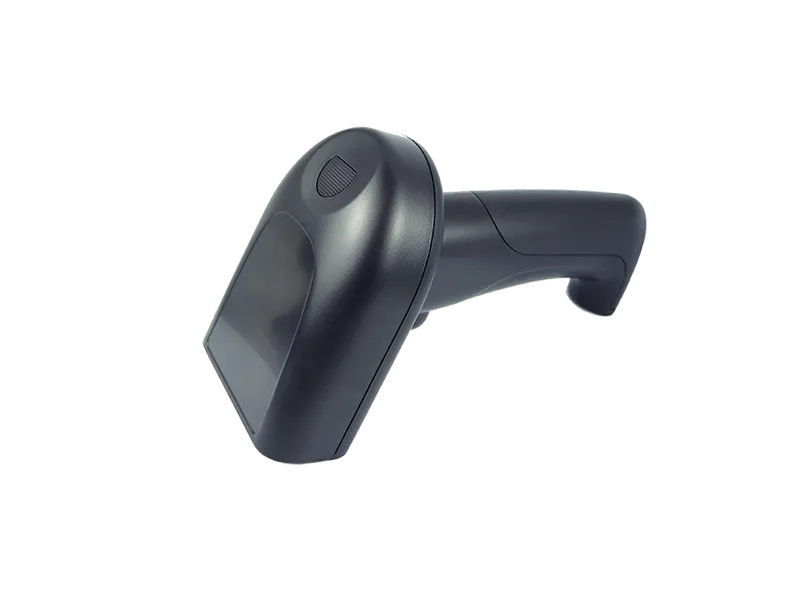

MT8250PE 2D ESD-safe Handheld Scanner

  • MT8250PE_Scanner
  • MT8250PE
  • MT8250PE_handheld_scanner_B
  • MT82050PE_Long_Lasting_ESD_Protection
  • MT8250PE_Outstanding_Scanning_Performance
  • MT8250PE_digital_workflow_integration
  • MT8250PE_Scanner
  • MT8250PE
  • MT8250PE_handheld_scanner_B
  • MT82050PE_Long_Lasting_ESD_Protection
  • MT8250PE_Outstanding_Scanning_Performance
  • MT8250PE_digital_workflow_integration

Safe Scanning for ESD-Sensitive Environments
MT8250PE is a 2D handheld scanner constructed with materials that dissipate static electricity safely. Designed for comfortable, prolonged use to reduce operator fatigue, MT8250PE can be used in environments where ESD-sensitive devices are handled, such as electronics manufacturing, assembly lines, and repair facilities.



。ESD-safe for electronics manufacturing
。Long-lasting ESD protection
。Scans 3mil & up to 398mm away
。Supports data editing and haptic feedback



New product available for free testing. For detailed conditions, please contact our sales representative.

Application
  • Manufacturing
    Manufacturing
Share:

FEATURES

Long-Lasting ESD Protection
Unlike external antistatic additions that can wear off, MT8250PE's ESD-safe method is achieved by mixing an antistatic agent during molding processing of its housing and cable material, which provides long-lasting ESD protection, with surface resistivity up to 105~1010 Ω per square, making it a reliable tool for environments where electrostatic discharge could damage sensitive electronic components.



Outstanding Scanning Performance
Built with high performance optical architecture and outstanding decode algorithm, MT8250PE handheld barcode scanner is capable of scanning barcode as wide as 14cm and up to 39cm away. Besides, MT8250PE supports high-density barcode up to 3Mil (0.075mm) on limited space.



Mobile-Friendly Scanning
With enhanced optical design and latest decode algorithm, MT8250PE virtually scans all 1D and 2D barcodes printed on any surface, either paper-based label with either matte or glossy surface, or mobile phone display and LCD screen. Therefore, MT8250PE enables digital workflow integration where barcodes are scanned directly off tablet or computer display, streamlining workflow without printed labels.



Ambient Light Immunity
MT8250PE 2D handheld barcode scanner automatically adjusts its parameters for optimal scanning performance which provides the freedom to scan barcodes from under complete darkness to direct sunlight. As a result MT8250PE can be deployed in both indoor and outdoor environments which require more ambient light immunity.



Better User Experience

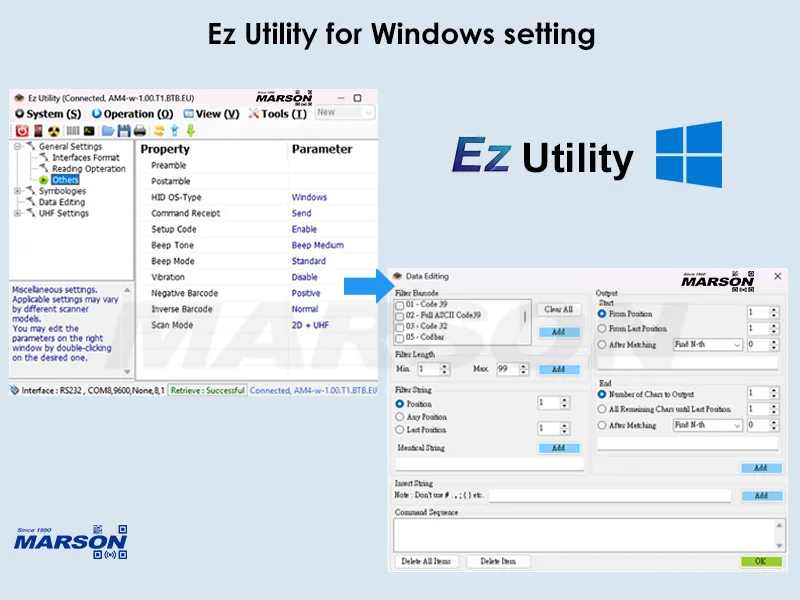

MT8250PE features haptic feedback as extra Good Read indication, advanced data editing, multilingual output, and the configuration capability by Marson's free user-friendly software tool, Ez Utility®, which allows for batch configuration of multiple scanners. With these features, the MT8250PE provides individuals the experience of maximum comfort as well as optimal performance as a result.

SPECIFICATIONS

Optic & Performance
Light Source
White LED
Visible red LED
Sensor
640 x 480
Resolution
3mil/ 0.075mm
Scan Angle
Horizontal 40°
Vertical 30°
Pitch Angle
±60°
Skew Angle
±55°
Roll Angle
360°
Print Contrast Ratio
20%
Width of Field
141mm (13Mil Code39)
Typical D.O.F (Environment: 800 lux)
3 Mil Code39 : 47 ~ 101mm
5 Mil Code39: 22 ~ 216mm
13 Mil UPC/ EAN:30 ~ 398mm
15 Mil QR Code: 20 ~ 235mm
6.67 Mil PDF417: 29 ~ 149mm
10 Mil Data Matrix: 26 ~ 145mm
Physical Characteristics
Dimension
L166 x W71 x H84 mm
Weight
170g
Color
Black
Material
ABS
Connector
USB Type A
Cable
2.1M Fixed Cable
Trigger
Scan Button
Indicator
LED, Buzzer, Vibrator
Electrical
Operation Voltage
5.0 VDC± 5%
Working Current
< 370mA
Standby Current
< 70mA
Connectivity
Interface/Profile
USB HID
USB VCP
User Environment
Operating Temperature
-20 ~ 55˚C
Storage Temperature
-20 ~ 65˚C
Humidity
0% ~ 95%RH (Non-condensing)
Drop Durability
1.5M
Surface Resistivity
< 10^11
Ambient Light
70,000 lux (Sunlight)
Decode Capability
Symbologies
1D Symbologies: UPC-A/ UPC-E, EAN-8/ EAN-13, Code128, GS1-128, Code 39, Code32, Code 93, Code11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Codabar, MSI, GS1 Databar

2D Symbologies: QR Code, Micro QR Code, Data Matrix, PDF417, MicroPDF417, Aztec, MaxiCode
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge
EMC/RF
FCC Part 15B Class B
CE EN55032/35
Safety Approval
EN62471 (Exempt Group)
Environmental
WEEE, RoHS 2.0
