Marson Barcode Scanner Brand Story

MT8121B 2D Wireless Scanner

  • MT8121B
  • MT8121B_Scanner
  • MT8121B_2D_Wireless_Handheld_Scanner_F_1000x600
  • MT8121B_Handheld_Scanner_Flexible_Data_Collection_Capabilities
  • MT8121B_Mobile_Friendly_Scanning
  • MT8121B
  • MT8121B_Scanner
  • MT8121B_2D_Wireless_Handheld_Scanner_F_1000x600
  • MT8121B_Handheld_Scanner_Flexible_Data_Collection_Capabilities
  • MT8121B_Mobile_Friendly_Scanning

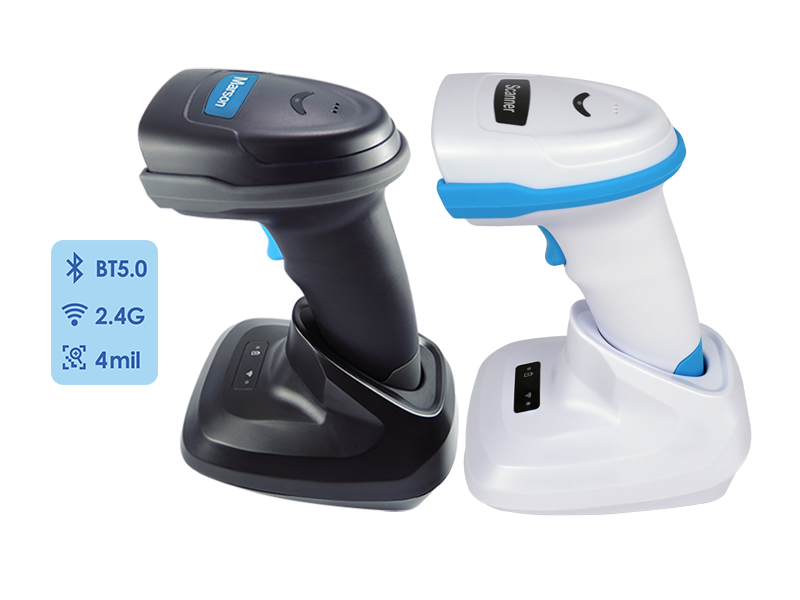

Instant Wireless Connectivity

Experience seamless connectivity with the MT8121B 2D Wireless Scanner, featuring both built-in Bluetooth and 2.4G technology. Effortlessly transmit data to your host device from up to 50 meters away using Bluetooth or enjoy extended 100-meter wireless range via 2.4G connectivity with the convenient charging base. Designed for comfort and affordability, this ergonomic scanner is your ultimate companion for daily operations. It is ideal for a wide range of applications including retail, manufacturing and inventory management.



  • 2D with BT5.0 & 2.4G Connectivity
  • Up to 100M of 2.4G/BT5.0 coverage
  • 8000 scans per full charge
  • Scans 4mil & up to 350mm away



360_View_Icon_20241210 View Black photo: https://scankit.istaging.com/20241204-MS-001/20241204-MS-001.html

360_View_Icon_20241210 View White photo: https://scankit.istaging.com/20241204-MS-001/20241204-MS-001.html

* New product available for free testing. For detailed conditions, please contact our sales representative.

Application
  • Retail
    Retail
  • Manufacturing
    Manufacturing
  • Inventory
    Inventory
Share:

FEATURES

Enhanced Scanning Precision and Speed
The lightning-fast scanning of MT8121B boasts an impressive scan time of just 1/10 second on average. Whether it's linear barcodes or major 2D barcodes, MT8121B delivers unparalleled scanning accuracy and efficiency. Its superior scanning capabilities, coupled with the ability to scan in any orientation, result in reduced downtime and increased productivity for enterprises of all sizes.


Increasing Mobile Productivity
MT8121B 2D Wireless Scanner is the ultimate solution for swift barcode data capture, whether from printed labels or on-screen displays. With a robust 2000mAh battery, the MT8121B keeps you productive throughout your busiest shifts, ensuring uninterrupted operation for over 8 hours of continuous use.


Flexible Data Collection Capabilities
Unlock limitless data collection possibilities with the MT8121B Wireless Scanner. Seamlessly switch between online wireless mode and offline memory mode, featuring a range of communication interfaces (2.4G, BT HID, BT SPP, BT BLE, and Memory). With its built-in memory, MT8121B ensures convenient storage and upload of barcode data, empowering users with unparalleled flexibility and ease of use.


Wireless Connectivity Made Easy

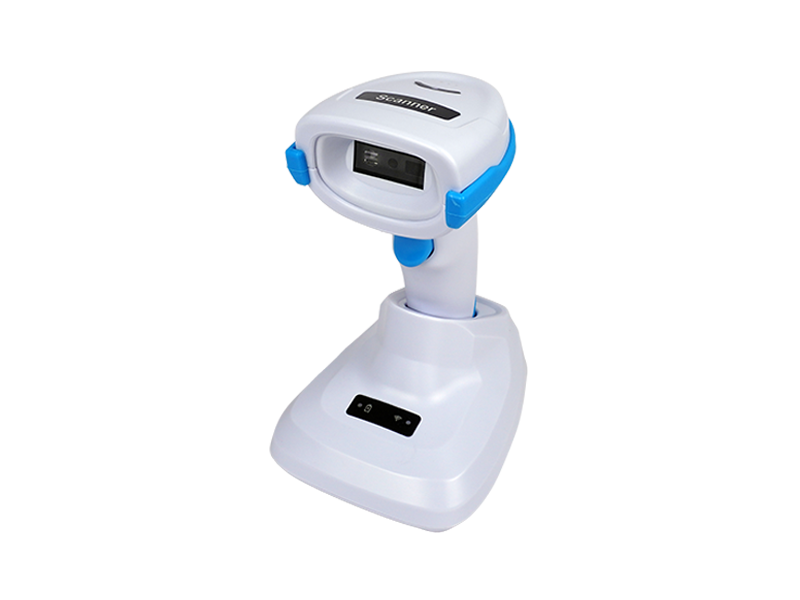

Built with Bluetooth® and 2.4G technology, the MT8121B 2D Wireless Scanner offers effortless wireless connectivity. Seamlessly transmit data to your host device from distances of up to 50 meters when utilizing Bluetooth capability. In situations where your host device lacks wireless connectivity, MT8121B comes to the rescue, instantly providing an extended 100-meter range via its charging base, ensuring uninterrupted workflow efficiency.

SPECIFICATIONS

Optic & Performance
Light Source
6500K White LED
617nm Red LED
Sensor
640 x 480
Resolution
4Mil/ 0.1mm (1D)
Scan Angle
Horizontal 34°
Vertical 26°
Pitch Angle
±60°
Skew Angle
±60°
Roll Angle
360°
Print Contrast Ratio
25%
Width of Field
130mm (13Mil Code39)
Memory
4096 barcodes (characters ≤500 /barcode)
Typical D.O.F (Environment: 800 lux)
4 Mil Code39 : 43 ~ 95 mm
13 Mil UPC/EAN: 35 ~ 328 mm
15 Mil QR Code: 9 ~ 527 mm
6.67 Mil PDF417: 18 ~ 161 mm
10 Mil Data Matrix: 15 ~ 174mm
Physical Characteristics
Dimension
L180 x W145 x H95 mm
Weight
460g
Color
Black
Material
ABS
Connector
RJ45
Cable
RJ45 to USB A(M) Cable
Trigger
Scan Button
Indicator
LED, Buzzer
Electrical
Operation Voltage
3.3 VDC ± 5%
Working Current
< 300mA
Standby Current
< 80mA
Battery
3.7V, 2000mAh, Li-Polymer Battery
Number of Scan (per full charge)
> 8000 scans
(1 scan/ 5 secs, Bluetooth connected)
Connectivity
Radio
MT8121B: Bluetooth 5.0 + 2.4G
MT8120B: 2.4G only
Range
2.4G: ≤328 ft/ 100m (line of sight)
BT: ≤164 ft/ 50m (line of sight)
Interface/Profile
2.4G (Cradle Mode)
BT HID
BT SPP
BT BLE
Memory Mode
User Environment
Operating Temperature
-20°C ~ 50˚C
Storage Temperature
-30°C ~ 60˚C
Humidity
0% ~ 95%RH (Non-condensing)
Drop Durability
1.8 M
Ambient Light
100,000 Lux (Sunlight)
Decode Capability
Symbologies
1D Symbologies:
UPC-A/UPC-E, EAN-8/EAN-13, ISBN, ISSN, Code 128, Code 39, Code 32, Code 93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Standard 2 of 5, MSI, Code 11, Codabar, GS1 DataBar, GS1 Composite

2D Symbologies:
QR Code, Micro QR Code, Data Matrix, PDF417, MicroPDF417, Aztec, MaxiCode, Han Xin
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge
EMC/RF
TBA
Safety Approval
TBA
Environmental
WEEE, RoHS 2.0
Accessory
Cable
RJ45(M) to USB A(M) Cable, 1.8M, Gray
(P/N: 7042-0320000, QTY: 1)
Charging Cradle
Charging Cradle
(P/N: 9019-3500000, QTY: 1)
