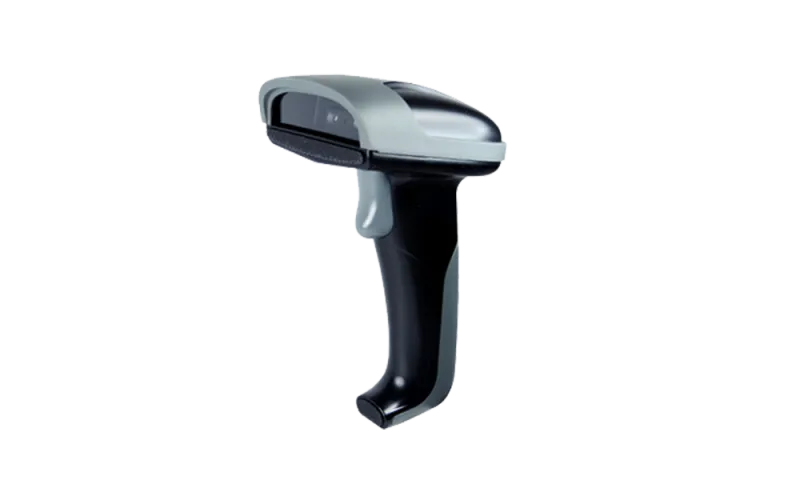

MT3000L SBR Laser Scanner

  • MT3000L_Handheld_Scanner
  • MT3000L3mil-barcode-1
  • MT3000L-ASUS-1
  • MT3000L-stock
  • MT3000_shop
  • MT3000L_Handheld_Scanner
  • MT3000L3mil-barcode-1
  • MT3000L-ASUS-1
  • MT3000L-stock
  • MT3000_shop

Long Range Laser Barcode Scanner
MT3000L high-density handheld scanner delivers fast and reliable scanning performance with a robust, ergonomic housing. MT3000L is a durable, affordable long range 1D barcode scanner that helps users to increase the productivity in manufacturing, inventory and retail applications.



。1D / 280sps / Long Range / SBR Laser

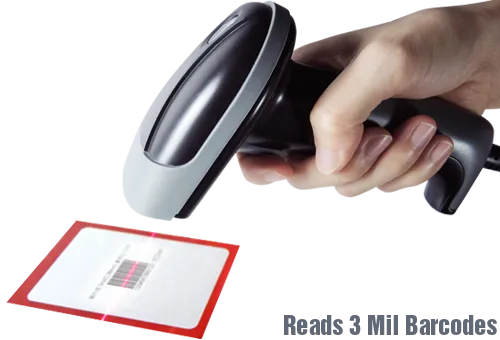

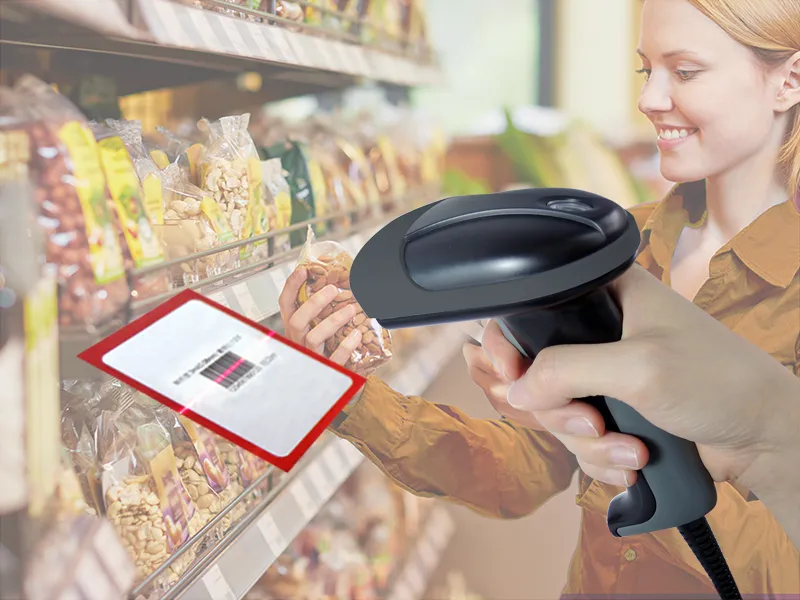

。Read 3mil high-density barcodes
。Long reading distance up to 530mm
。Read screen barcode with laser

Application

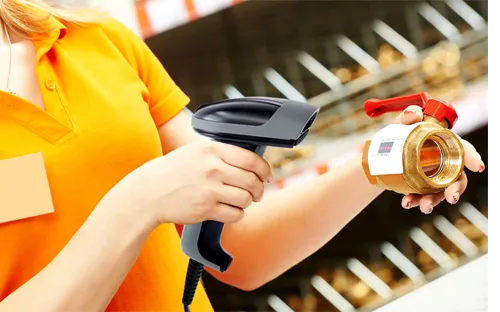

  • Retail
    Retail
  • Manufacturing
    Manufacturing

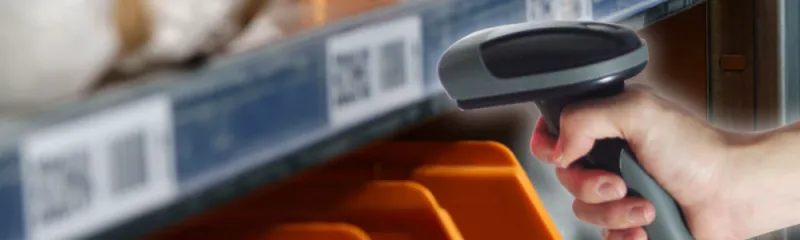

  • Inventory
    Inventory
Share:

FEATURES

High Performance Scanning
Built with high-performance optical architecture and outstanding decode algorithm, the MT3000L long-range handheld scanner has optimal scanning efficiency and accuracy with scanning width of 20cm and the reading distance of MT3000L up to 53cm on commodity barcodes. Besides, MT3000L supports high-density barcode up to 3mil (0.075mm) on limited space. MT3000L has auto-adaptive high-speed scanning at a maximum of 280 scans per second based on environment lighting.

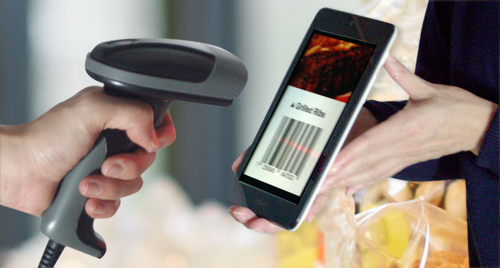

On-Screen Barcode Readability
The MT3000L SBR (Screen Barcode Readable) laser scanner is equipped with a thin, sharp, and safe class 1 laser aimer which helps users to accurately aim at barcodes. With Marson's patented laser technology, no moving parts, configurable brightness, and auto-adaptive illumination, the MT3000L long-range handheld scanner ensures accurate barcode capture of either printed or on-screen (LCD) barcodes.


Rugged and Robust Design
The ruggedized design of the MT3000L long-range handheld scanner includes industrial-class protection with a rubber bezel in the front and 1.8 meters drop resistance which ensures that MT3000L withstands the impact of everyday drops and bumps and prevents the scanner window from any damage or scratch in all kinds of working environments.


The Better User Experience
As classified by Laser Safety Standard EN/IEC 60825-1 (Class 1), FDA, the light source of MT3000L is completely safe for human eyes even after long hours of operation. With built-in buzzer and LED, the MT3000L long-range handheld scanner provides a full variety of Good Read responses such as audible and visual feedback. MT3000L is also easily configured on the host computer by Marson's free user-friendly software tool, Ez Utility®.

SPECIFICATIONS

Optic & Performance
Light Source
650nm visible red Laser
Visible white LED
Sensor
Linear Image Sensor
Resolution
3Mil/ 0.075mm
Scan Angle
41°
Pitch Angle
±60°
Skew Angle
±30°
Roll Angle
±20°
Print Contrast Ratio
30%
Width of Field
200mm (13Mil Code39)
Typical D.O.F (Environment: 800 lux)
Code39
3 Mil : 45 ~ 92 mm
4 Mil : 40 ~ 132 mm
5 Mil : 35 ~ 172 mm
10 Mil: 18 ~ 350 mm
15 Mil: 26 ~ 533 mm
UPC/EAN
13 Mil: 27 ~ 310 mm
Physical Characteristics
Dimension
L166 x W71 x H84 mm
Weight
170g
Color
Black or White
Material
ABS
Connector
USB Type A
Cable
2.1M (Fixed Cable)
Trigger
Scan Button
Indicator
LED, Buzzer
Electrical
Operation Voltage
5 VDC ± 5%
Working Current
< 160mA
Standby Current
< 80mA
Connectivity
Interface/Profile
RS232
USB HID
USB VCP
User Environment
Operating Temperature
0 ~ 40˚C
Storage Temperature
-10 ~ 60˚C
Humidity
0% ~ 95%RH (Non-condensing)
Drop Durability
1.8 M
Sealing
IP42
Ambient Light
50,000 Lux (Sunlight)
Decode Capability
Symbologies
UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge
EMC/RF
FCC Part 15B Class B, CE EN55022/24/32
Safety Approval
EN/IEC60825-1 (Class 1), FDA
Environmental
WEEE, RoHS 2.0, REACH
