Marson Barcode Scanner Brand Story

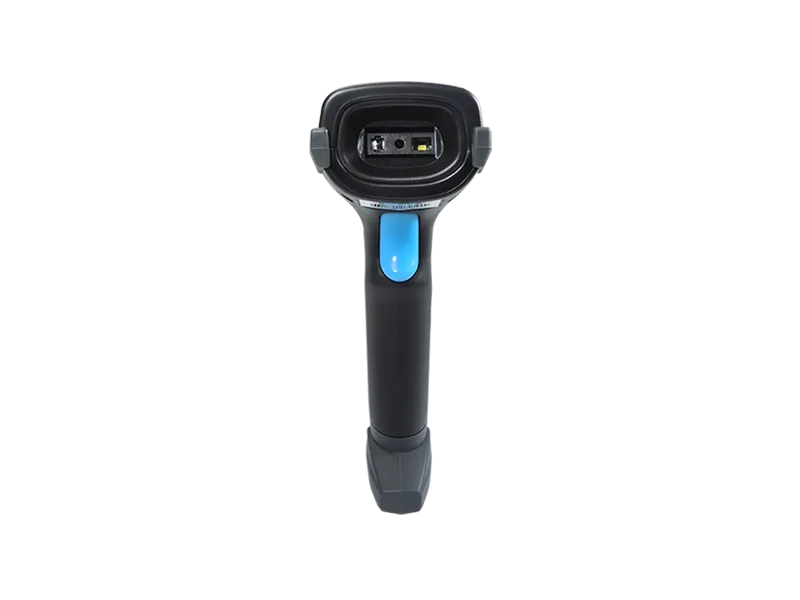

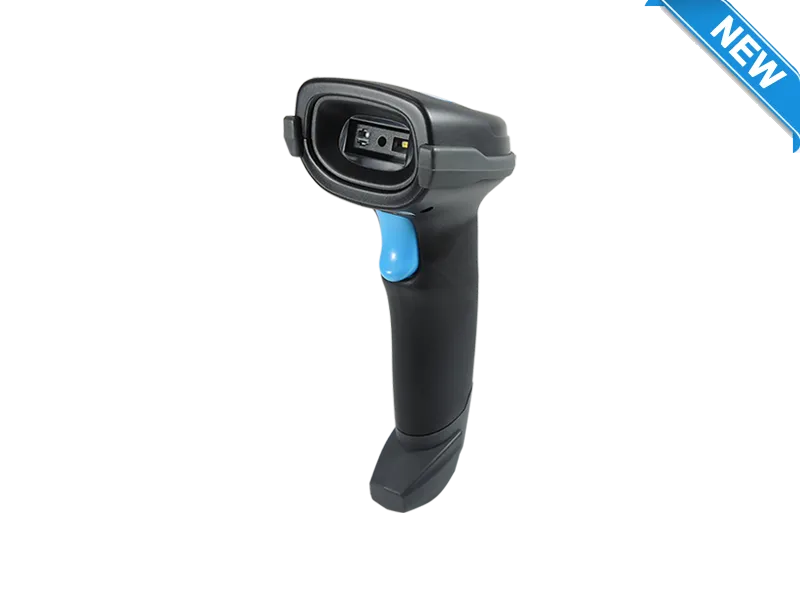

MT8120 2D Handheld Scanner

  • MT8120_2D_Handheld_Scanner_R_New
  • MT8120_2D_Handheld_Scanner_F_2025-2-6
  • MT8120_2D Handheld Scanner_LL_800x600
  • MT8210_Mobile_Friendly_Scanning
  • MT8120_2D_Handheld_Scanner_R_New
  • MT8120_2D_Handheld_Scanner_F_2025-2-6
  • MT8120_2D Handheld Scanner_LL_800x600
  • MT8210_Mobile_Friendly_Scanning

Durable and Affordable Barcode Scanning

MT8120 2D handheld scanner is a cost-effective and efficient solution for all your barcode scanning needs. Capable of decoding all major 2D barcodes as well as 1D barcodes, MT8120 delivers exceptional performance without breaking the budget. Its reliability and affordability make it the ideal choice for a wide range of applications, including retail point-of-sale, e-ticketing, manufacturing, and mobile payment.



  • Scans all major 1D/2D barcodes quickly
  • Immune to ambient light interference
  • Reads barcodes from paper or screens
  • Ergonomic and durable design
  • Fast scanning with minimal downtime
Application
  • Retail
    Retail
  • Logistics
    Logistics
  • Manufacturing
    Manufacturing
Share:

FEATURES

Superior Barcode Data Capture
MT8120 2D Handheld Scanner sets a high standard for barcode data capture, effortlessly decoding all major 1D and 2D symbologies, including GS1 Composite, MaxiCode, Aztec, and more. With a lightning-fast scanning speed of approximately 1/10 of a second, it delivers quick and accurate barcode reading from any orientation. This exceptional performance enhances productivity and minimizes downtime, making it an invaluable tool for enterprises seeking efficiency and reliability.



Environmental Interference Immunity
MT8120 2D Handheld Barcode Scanner is perfect for both indoor and outdoor scanning applications, thanks to its immunity to ambient light interference. Engineered to automatically adjust its parameters for optimal performance, MT8120 enables seamless barcode scanning in a wide range of lighting conditions—from direct sunlight to complete darkness—offering unparalleled flexibility and reliability.



Mobile-Friendly Scanning
With its advanced optical design and cutting-edge decoding algorithm, MT8120 2D Handheld Barcode Scanner effortlessly reads barcodes from any surface, whether on paper labels or mobile phone displays. This versatility makes it perfect for applications such as eCoupons, eTickets, digital ID cards, and mobile payments, empowering businesses to stay ahead in an ever-evolving technological landscape.



Durable and Robust Design
MT8120 2D Handheld Barcode Scanner features a durable housing with a rubber bezel on the front, providing excellent protection for the scanner window against damage or scratches. Built to withstand the rigors of daily use in even the toughest environments, it boasts a robust design capable of enduring drops from heights of up to 1.5 meters onto concrete, ensuring reliable performance and longevity.

SPECIFICATIONS

Optic & Performance
Light Source
6500K White LED, 617nm Red LED
Sensor
640 x 480
Pitch Angle
±60°
Skew Angle
±60°
Roll Angle
360°
Print Contrast Ratio
25%
Typical D.O.F (Environment: 800 lux)
4 Mil Code 39 : 41 ~ 97mm
13 Mil UPC/EAN: 37 ~ 309mm
20 Mil QR Code: 22 ~ 303mm
Physical Characteristics
Dimension
L173 x W70 x H82 mm
Weight
220g
Color
Black
Material
ABS
Connector
USB Type A
Cable
RJ45 to USB A(M) Cable, 1.8M
Trigger
Scan Button
Indicator
LED, Buzzer
Electrical
Operation Voltage
5 VDC ± 5%
Working Current
< 250mA
Standby Current
< 100mA
Connectivity
Interface/Profile
USB HID, USB VCP, RS232
User Environment
Operating Temperature
-20°C ~ 50°C
Storage Temperature
-30°C ~ 60°C
Humidity
0%~95% RH (Non-condensing)
Drop Durability
1.5M
Ambient Light
100,000 Lux (Sunlight)
Decode Capability
Symbologies
1D Symbologies:
UPC-A/UPC-E, EAN-8/EAN-13, ISBN, ISSN, Code 128, Code 39, Code 32, Code 93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Standard 2 of 5, MSI, Code 11, Codabar, GS1 DataBar, GS1 Composite
2D Symbologies:
QR Code, Micro QR Code, Data Matrix, PDF417, MicroPDF417, Aztec, MaxiCode, Han Xin
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge
EMC/RF
TBA
Safety Approval
TBA
Environmental
WEEE, RoHS 2.0
