MT8230B 2D Wireless Scanner

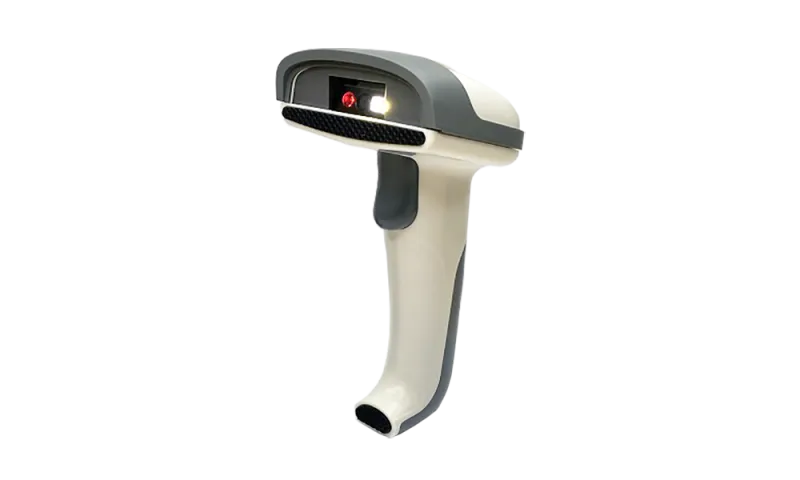

  • MT8230B_Handheld_Scanner_1000x600

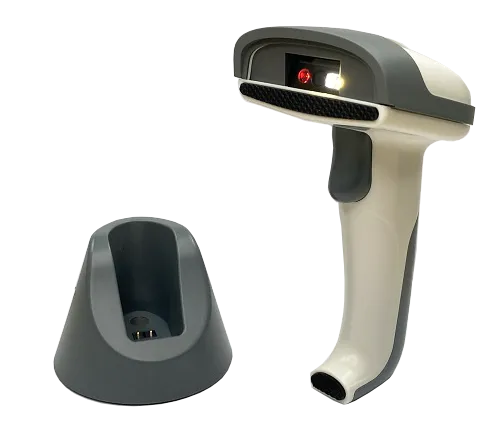

  • MT8210B-1
  • MT8210B-4-2
  • MT8210B-3
  • MT8210B-2
  • MT8230B_Handheld_Scanner_1000x600
  • MT8210B-1
  • MT8210B-4-2
  • MT8210B-3
  • MT8210B-2

Instant Wireless Connectivity
MT8230B is a 2D wireless handheld scanner that delivers fast and reliable scanning performance in a robust, ergonomic housing. MT8230B can capture all 1D and 2D barcodes from paper surface or mobile display in one-tenth of a second. The charging cradle of MT8230B can work as Bluetooth transponder and instantly provides wireless connectivity to any host device to boost productivity and efficiency in manufacturing, inventory and retail applications.



。2D / Long Range / Wireless
。Charging cradle with wireless transponder
。Mobile barcode readability
。Aggressive scanning performance

Application
  • Retail
    Retail
  • Logistics
    Logistics
  • Manufacturing
    Manufacturing
  • Inventory
    Inventory
Share:

FEATURES

Flexible Operations of Data Collection
2D Wireless Scanner MT8230B 2D wireless handheld scanner is versatile with the advantage of conducting flexible data collection operations of both online wireless mode and off-line memory mode including multiple communication interfaces (BT HID/ BT SPP/ USB HID/ USB VCP). With built-in memory, the MT8230B 2D Wireless Scanner can also store scanned data and perform inventory checks.


Industrial-class Protection
The ruggedized design of 2D Wireless Scanner MT8230B includes industrial-class protection with a rubber bezel in the front and 1.2 meters drop resistance which ensures that MT8230B handheld barcode scanner withstands the impact of everyday drops and bumps and prevents the scanner window from any damage or scratch in all kinds of working environments.

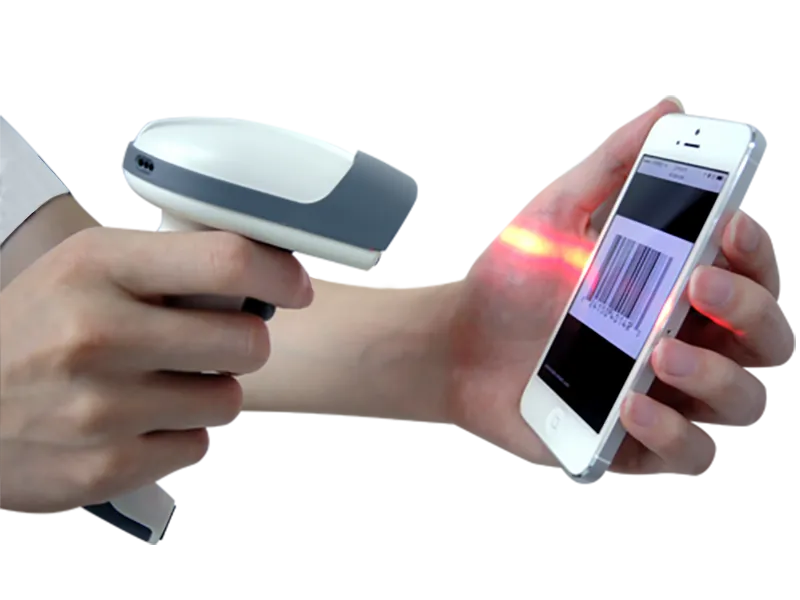

Mobile-Friendly Scanning
With enhanced optical design and the latest decode algorithm, the MT8230B 2D Wireless Scanner virtually scans all 1D and 2D barcodes printed on any surface, either paper-based label with either matte or glossy surface or mobile phone display and LCD screen. As a result, users may expand their business into many new applications such as eCoupon, eTicket, Digital ID cards, and mobile payments.

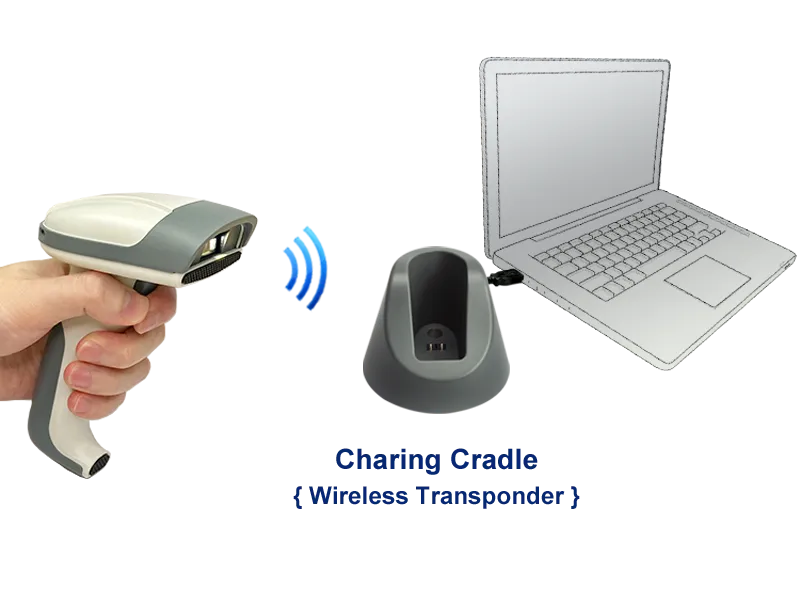

Charging Cradle with Wireless Transponder
MT8230B 2D wireless handheld scanner comes with a charging cradle that serves as a home place for the scanner when not in use. With a built-in wireless transponder, the charging cradle can also transmit barcode data from the scanner to the host device with a USB or RS232 cable, which provides wireless connectivity to the host device that does not support Bluetooth communication.

SPECIFICATIONS

Optic & Performance
Light Source
White LED
Visible red LED
Sensor
640 x 480
Resolution
4Mil/ 0.1mm
Scan Angle
Horizontal 38°
Vertical 29°
Pitch Angle
±55°
Skew Angle
±55°
Roll Angle
360°
Print Contrast Ratio
30%
Width of Field
161mm (13Mil Code39)
Memory
20,000 EAN-13 barcode
Typical D.O.F (Environment: 800 lux)
5 Mil Code39 : 27 ~ 170 mm
13 Mil UPC/EAN: 36 ~ 331 mm
15 Mil QR Code: 15 ~ 208 mm
6.67 Mil PDF417: 21 ~ 138 mm
10 Mil Data Matrix: 25 ~ 123 mm
Physical Characteristics
Dimension
L166 x W71 x H84 mm (Scanner)
D82 x H84mm (Cradle)
Weight
148g (Scanner)
238g (Cradle)
Color
White
Material
ABS
Connector
Micro USB Port
Cable
Option 1: Micro(M) to USB A(M) Cable, 1.5M
Option 2: Micro(M) to D-sub9(F) Cable, 2.1M
Trigger
Scan Button
Indicator
LED, Buzzer, Vibrator
Electrical
Operation Voltage
3.7 VDC ± 5%
Working Current
< 240mA
Standby Current
< 70mA
Battery
3.7V, 2000mAh, Li-Polymer Battery
Number of Scan (per full charge)
12,000 scans or 16 hours
(1 scan/ 5 secs, Bluetooth connected)
Connectivity
Radio
Bluetooth 4.2 & 3.0 (Class 2)
Range
33 ft / 10m (line of sight)
Interface/Profile
Scanner:
BT HID / BT SPP / Cradle Mode / Memory Mode
Cradle:
USB HID / RS232 (Factory configured)
User Environment
Operating Temperature
0 ~ 40˚C
Storage Temperature
-10 ~ 60˚C
Humidity
0% ~ 95%RH (Non-condensing)
Drop Durability
1.2 M
Sealing
IP42
Ambient Light
100,000 Lux (Sunlight)
Decode Capability
Symbologies
1D Symbologies: UPC-A/UPC-E, EAN-8/EAN-13, ISBN, Code 128, GS1-128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Standard 2 of 5, Codabar, MSI Plessey, GS1 Databar, GS1 Composite

2D Symbologies: QR Code, Micro QR Code, Data Matrix, PDF417, Aztec, MaxiCode, Han Xin
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge
EMC/RF
FCC Part15C
CE EN301489-1/-17, EN300328
Safety Approval
EN/IEC62368
Environmental
WEEE, RoHS 2.0
Accessory
Cable
USB Version:
Micro USB(M) to USB A(M) Cable, 1.5M, Black
(P/N: 7005-9892A50, QTY: 1)
RS232 Version:
Micro USB(M) to D-sub 9(F) Cable, 2.1M, Black
(P/N: 7040-2204000, QTY: 1)
Charging Cradle
USB Version:
Charging Cradle
(P/N: 282C-0010000, QTY: 1)
RS232 Version:
Charging Cradle
(P/N: 282C-0020000, QTY: 1)
