MT8251B 2D Wireless Scanner

  • MT8251B_Scanner_Charging
  • MT8251B_Scanner_Cradle
  • MT8251B_Handheld_Scanner_F
  • MT8251B_wireless_transponder
  • MT8251B_Flexible_Data_Collection
  • MT8210B-2
  • MT8251B_Scanner_Charging
  • MT8251B_Scanner_Cradle
  • MT8251B_Handheld_Scanner_F
  • MT8251B_wireless_transponder
  • MT8251B_Flexible_Data_Collection
  • MT8210B-2

Elevating Wireless Scanning Experience
MT8251B 2D Wireless Scanner offers exceptional performance, capturing barcodes from various distances with its auto-adaptive snappy scanning. Equipped with Bluetooth 5.0 technology, it provides effortless wireless connectivity up to 50 meters, with an extended 100-meter range via its charging base. With a robust 2000mAh battery, it ensures uninterrupted operation for over 17 hours with flexible data collection capabilities. It is ideal for a wide range of applications including retail, logistics, manufacturing and inventory management.



  • 2D / Long Range / Wireless / GS1 UDI & Dotcode
  • Best scanning performance
  • Bluetooth 5.0 with 100M coverage
  • Online and offline versatile operation



360_View_Icon_20241210 View photo: https://scankit.istaging.com/20241204-MS-007/20241204-MS-007.html



New product available for free testing. For detailed conditions, please contact our sales representative.

Application

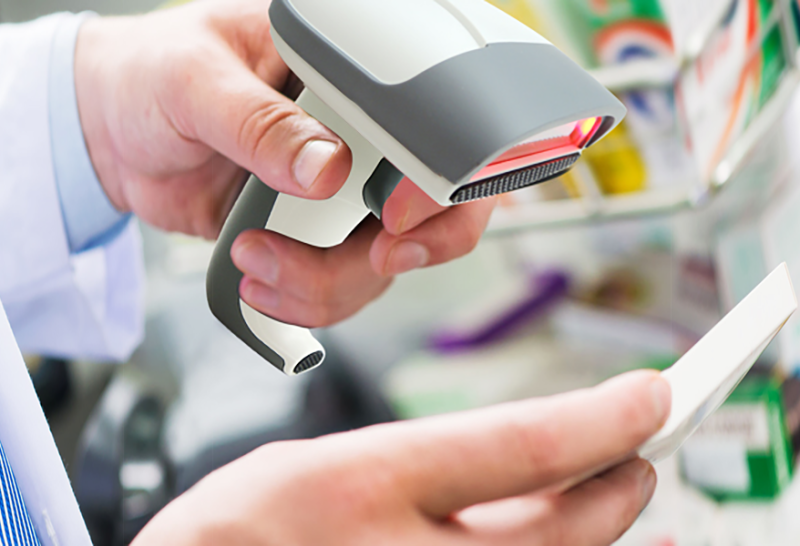

  • Retail
    Retail
  • Logistics
    Logistics
  • Manufacturing
    Manufacturing
  • Inventory
    Inventory
Share:

FEATURES

Outstanding Performance across All Distances
MT8251B delivers exceptional performance in logistics and warehouse applications. Its auto-adaptive snappy scanning capability ensures efficient barcode scanning from near to far distances. Built with high-quality optics and a superior sensor, MT8251B can read high-density barcodes as small as 3mil and capture commodity barcodes up to 475mm away. Additionally, MT8251B supports various barcode formats, including Multicode, GS1 UDI, and Dotcode.


Increasing Mobile Productivity

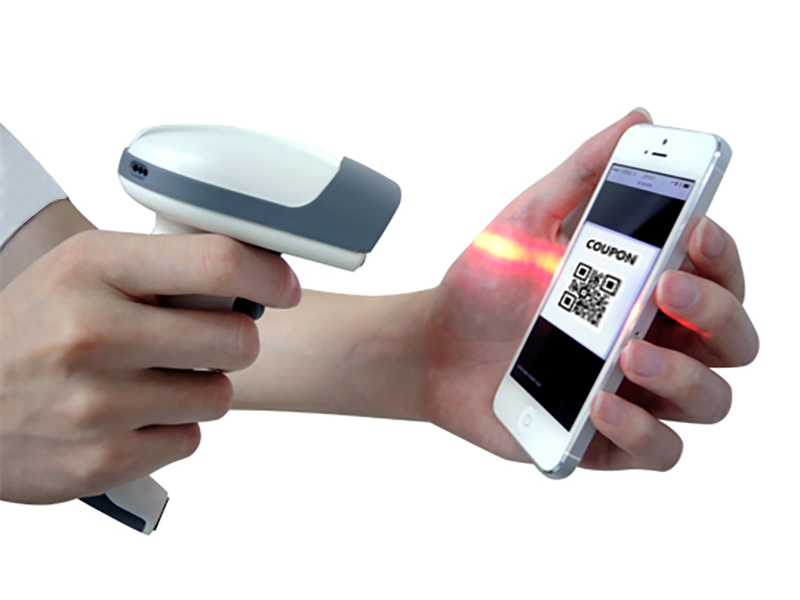

MT8251B 2D Wireless Scanner is the ultimate solution for swift barcode data capture, whether from printed labels or on-screen displays. With a robust 2000mAh battery, the MT8251B keeps you productive throughout your busiest shifts, ensuring uninterrupted operation for over 17 hours of continuous use.


Flexible Data Collection Capabilities
Unlock limitless data collection possibilities with the MT8251B Wireless Scanner. Seamlessly switch between online wireless mode and offline memory mode, featuring a range of communication interfaces (BT HID, BT SPP, Cradle Mode, and Memory Mode). With its built-in memory, MT8251B ensures convenient storage and upload of barcode data, empowering users with unparalleled flexibility and ease of use.


Wireless Connectivity Made Easy

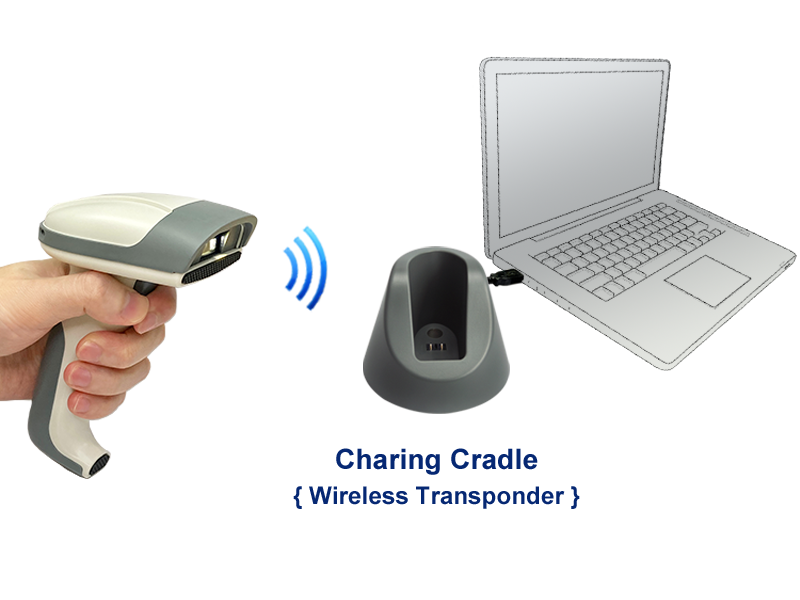

Built with Bluetooth 5.0® technology, the MT8251B 2D Wireless Scanner offers effortless wireless connectivity. Seamlessly transmit data to your host device from distances of up to 50 meters when utilizing Bluetooth capability. In situations where your host device lacks wireless connectivity, MT8251B comes to the rescue, instantly providing an extended 100-meter range via its charging base, ensuring uninterrupted workflow efficiency.


Elevating Safety and Efficiency
MT8251B sets the standard for safety and convenience. Adhering to the rigorous Photo-biological Safety Standard EN/IEC 62471, the scanner's light source ensures total eye safety during prolonged use. Stay informed and efficient with built-in buzzer, LED indicators, and vibrator, providing clear feedback on wireless connection status and successful scans. MT8251B can also be configured by user-friendly tool, Ez Utility® that enables complex settings such as data editing and symbology settings to be programmed in the easiest way possible.

SPECIFICATIONS

Optic & Performance
Light Source
White LED
Visible red LED
Sensor
1280 x 800
Resolution
3mil/ 0.075mm (1D)
7mil/ 0.178mm (2D)
Scan Angle
Horizontal 46°
Vertical 29°
Pitch Angle
±60°
Skew Angle
±60°
Roll Angle
360°
Print Contrast Ratio
20%
Width of Field
250mm (13Mil Code39)
Memory
2MB (20,000 barcodes)
Typical D.O.F (Environment: 800 lux)
4 Mil Code39 : 37 ~ 170 mm
13 Mil UPC/EAN: 37 ~ 475 mm
15 Mil QR Code: 15 ~ 321 mm
6.67 Mil PDF417: 33 ~ 235 mm
10 Mil Data Matrix: 33 ~ 245 mm
Physical Characteristics
Dimension
L166 x W71 x H84 mm (Scanner)
D82 x H84mm (Cradle)
Weight
148g (Scanner)
242g (Cradle)
Color
White
Material
ABS
Connector
Micro USB Port
Cable
Micro(M) to USB A(M) Cable, 1.5M
Trigger
Scan Button
Indicator
LED, Buzzer, Vibrator
Electrical
Operation Voltage
3.7 VDC ± 5%
Working Current
< 380mA
Standby Current
< 70mA
Battery
3.7V, 2000mAh, Li-Polymer Battery
Number of Scan (per full charge)
12500 scans
(1 scan/ 5 secs, Bluetooth connected)
Connectivity
Radio
Bluetooth 5.0 (Dual Mode)
Range
328 ft / 100m (line of sight)
Interface/Profile
Scanner: BT HID / BT SPP / Cradle Mode / Memory Mode
Cradle: USB HID / RS232 VCP
User Environment
Operating Temperature
-10˚C ~ 50˚C
Storage Temperature
-20˚C ~ 60˚C
Humidity
0% ~ 95%RH (Non-condensing)
Drop Durability
1.5 M
Sealing
IP42
Ambient Light
100,000 Lux (Sunlight)
Decode Capability
Symbologies
1D Symbologies:
UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code39, Code 93, Code 32, Code11, Codabar , Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode , GS1 Databar, Composite CC-A/B/C

2D Symbologies:
PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR Code, Aztec, MaxiCode, DotCode
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge
EMC/RF
FCC Part15C, TELEC
Safety Approval
TBA
Environmental
WEEE, RoHS 2.0
Accessory
Cable
Micro(M) to USB A(M) Cable, 1.5M, Black
(P/N: 7005-9892A50, QTY: 1)
Charging Cradle
Charging Cradle
(P/N: 2825-0080000, QTY: 1)
