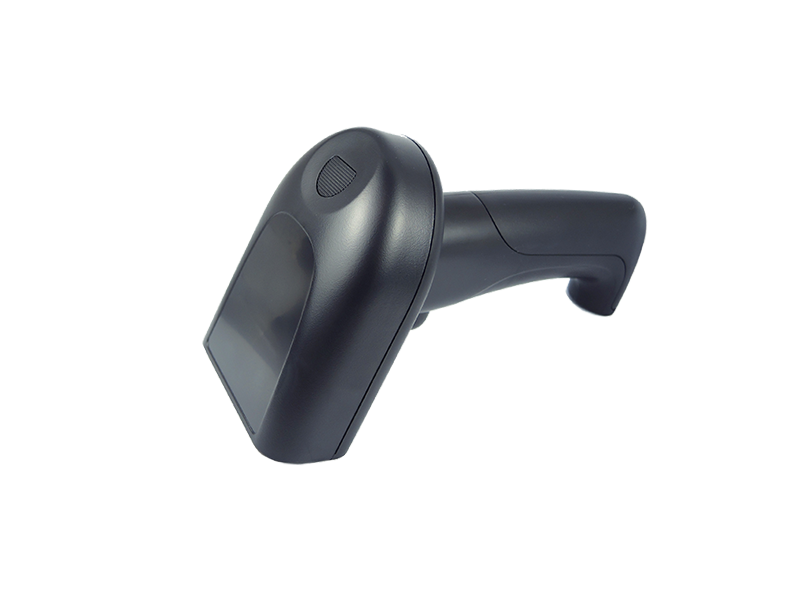

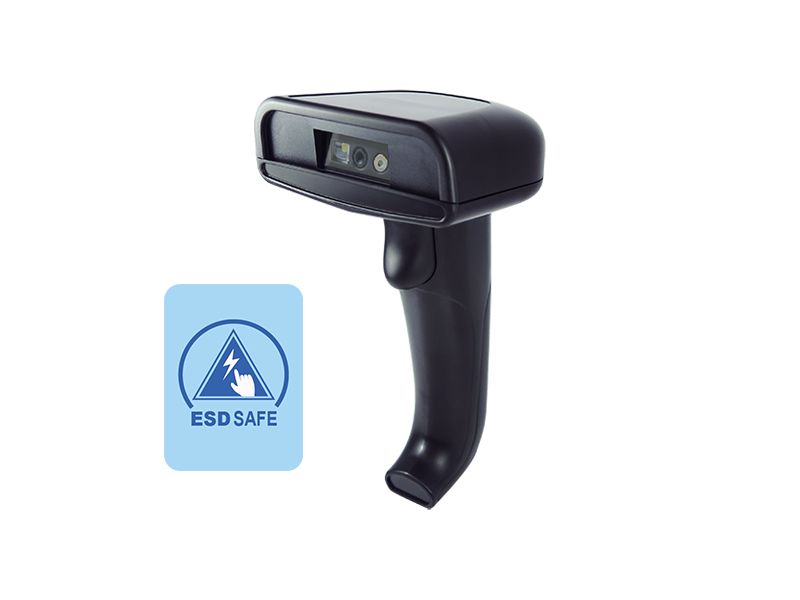

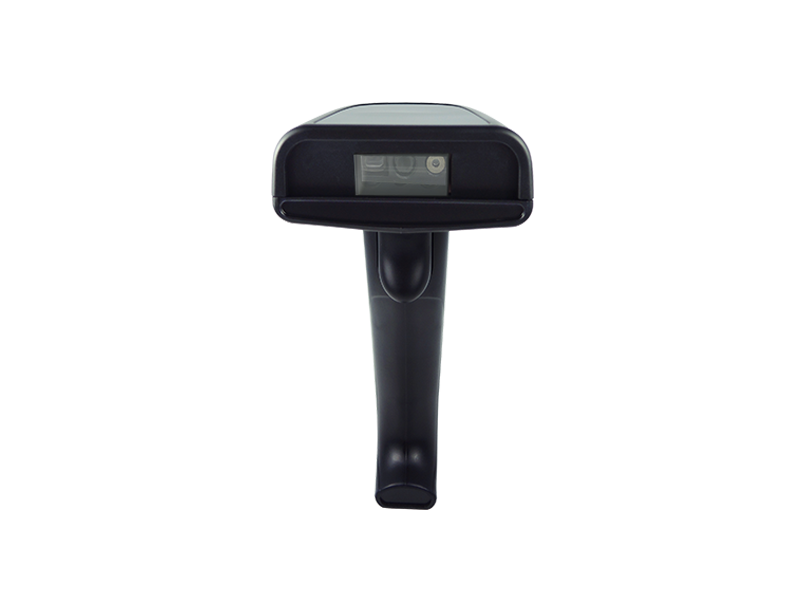

MT8258LE 2D ESD-safe Handheld Scanner

  • MT8258LE_2D_ESD-Safe_Handheld_Scanner_Marson_R
  • MT8258LE_2D_ESD-Safe_Handheld_Scanner_Marson_F
  • MT8258LE_2D_ESD-Safe_Handheld_Scanner_Marson_down
  • MT8258LE_2D_ESD_Safe_Handheld_Scanner_Long_Term_ESD_Protection_Marson
  • MT8258LE_2D_ESD_Safe_Handheld_Scanner_Outstanding_Scanning_Performance_Marson
  • MT8258LE_2D_ESD_Safe_Handheld_Scanner_Safe_ Easy_Use_Marson
  • MT8258LE_2D_ESD-Safe_Handheld_Scanner_Marson_R
  • MT8258LE_2D_ESD-Safe_Handheld_Scanner_Marson_F
  • MT8258LE_2D_ESD-Safe_Handheld_Scanner_Marson_down
  • MT8258LE_2D_ESD_Safe_Handheld_Scanner_Long_Term_ESD_Protection_Marson
  • MT8258LE_2D_ESD_Safe_Handheld_Scanner_Outstanding_Scanning_Performance_Marson
  • MT8258LE_2D_ESD_Safe_Handheld_Scanner_Safe_ Easy_Use_Marson

Reliable ESD-Safe Scanning for Industrial Applications
MT8258LE is a high-performance 2D handheld scanner built with ESD-safe housing and cable, ideal for electronics manufacturing and static-sensitive environments. With megapixel optics, mobile-friendly scanning and robust ambient light immunity, it delivers exceptional accuracy and versatility. User-focused features include visual, audible, and tactile feedback, ensuring seamless integration into high-volume workflows without compromising safety or productivity.



  • Megapixel sensor, Laser aimer
  • ESD-safe for electronics manufacturing
  • Scans 3.3mil & up to 720mm away
  • Supports data editing and haptic feedback



New product available for free testing. For detailed conditions, please contact our sales representative.

Application
  • Manufacturing
    Manufacturing
Share:

FEATURES

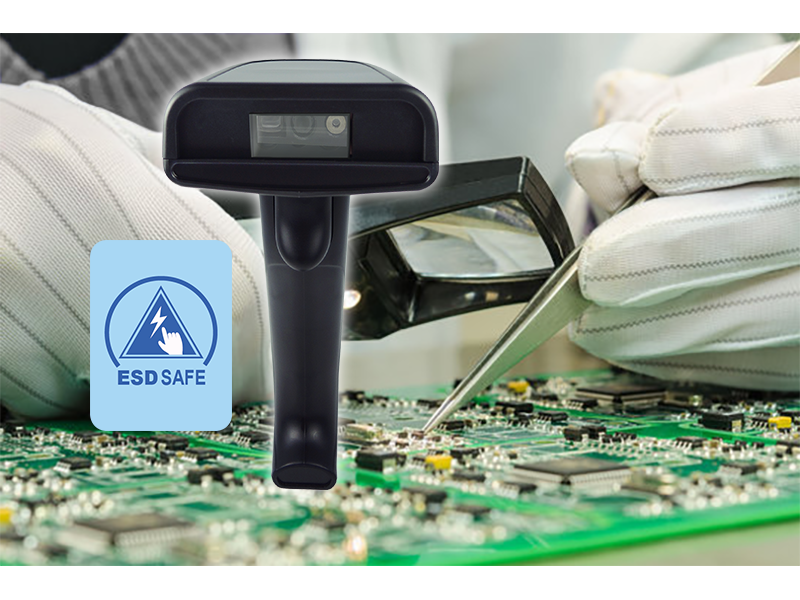

Long-Lasting ESD Protection
integrates antistatic agents directly into its housing and cable during molding. This provides long-lasting ESD protection with surface resistivity up to 10⁵~10¹⁰ Ω/sq, safeguarding sensitive components in electrostatic-sensitive environments.

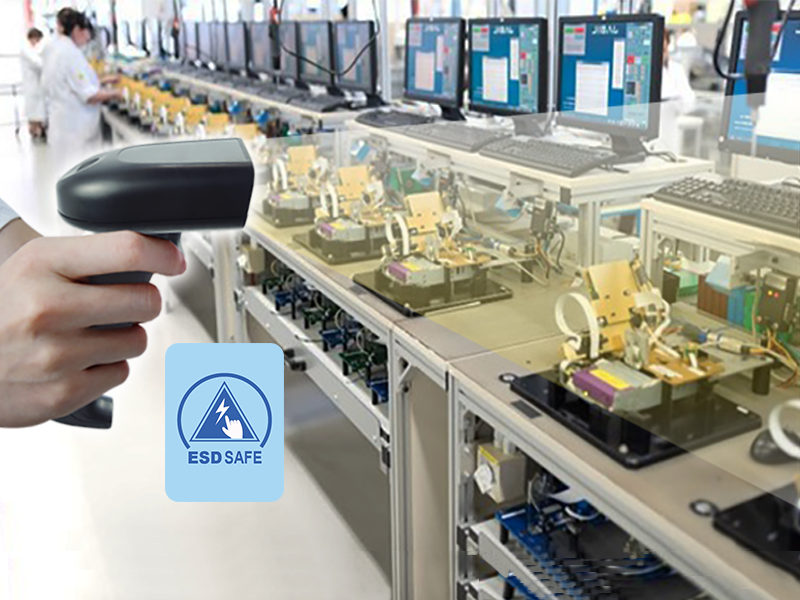

Powerful Scanning Performance
With a megapixel sensor and precision decoding algorithm, MT8258LE 2D ESD-safe Handheld Scanner captures high-density barcodes down to 3.3 mil and reads from up to 72cm away, maximizing scanning flexibility across short and extended distances.



Mobile and Screen Scanning
Enhanced optics and decoding power allow MT8258LE 2D ESD-safe Handheld Scanner to read barcodes from paper labels, glossy surfaces, and mobile or LCD screens. It supports digital workflows by enabling label-free scanning directly from electronic displays.



Ambient Light Immunity
MT8258LE 2D ESD-safe Handheld Scanner adapts dynamically to lighting—from pitch dark to direct sunlight—making it suitable for various lighting conditions in indoor or outdoor manufacturing lines, warehouses, and repair facilities.



Multi-Feedback Indicators
Operators receive instant Good Read confirmation through LED lights, buzzer sounds, and vibration alerts. This ensures accurate performance even in noisy or dim environments and helps reduce scanning errors and repetition.

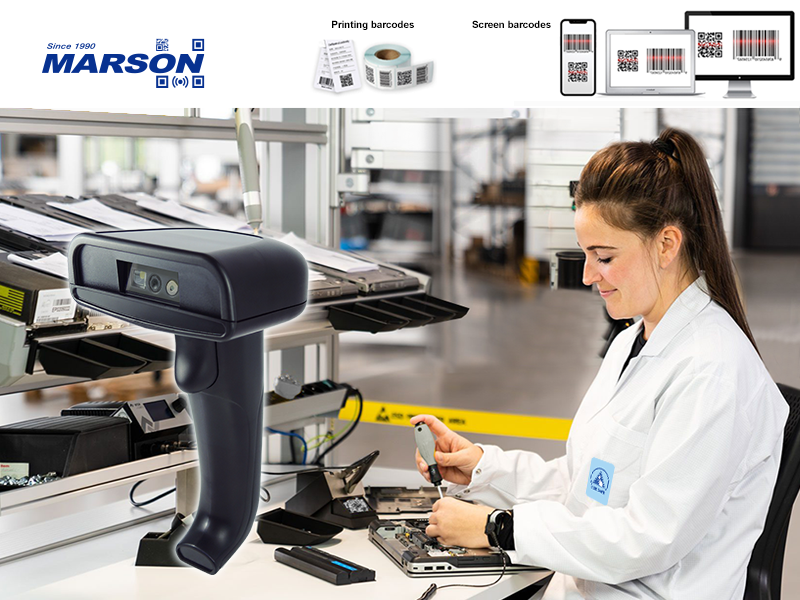

Safe and Easy to Use
Compliant with EN/IEC 60825-1 Laser safety standards and configurable via Ez Utility® software, MT8258LE 2D ESD-safe Handheld Scanner ensures both operator safety and effortless deployment into existing systems using USB HID or VCP interfaces.

SPECIFICATIONS

Optic & Performance
Light Source
White LED
Visible red Laser
Sensor
1280 x 800
Resolution
3.3mil
Scan Angle
Horizontal 39°
Vertical 26°
Pitch Angle
±60°
Skew Angle
±60°
Roll Angle
360°
Print Contrast Ratio
10%
Width of Field
TBA
Typical D.O.F (Environment: 800 lux)
3.3 Mil Code39: 100 ~ 200mm
5 Mil Code39: 70 ~ 320mm
13 Mil UPC/EAN: 50 ~ 720mm
15 Mil QR Code: 30 ~ 400mm
6.67 Mil PDF417: 95 ~ 270mm
Physical Characteristics
Dimension
L166 x W71 x H84 mm
Weight
170g
Color
Black
Material
ABS
Connector
USB Type A
Cable
2.1M Fixed Cable
Trigger
Scan Button
Indicator
LED, Buzzer, Vibrator
Electrical
Operation Voltage
5VDC ± 5%
Working Current
< 270mA
Standby Current
< 70mA
Connectivity
Interface/Profile
USB HID
USB VCP
User Environment
Operating Temperature
-20 ~ 55°C
Storage Temperature
-20 ~ 65°C
Humidity
0% ~ 95%RH (Non-condensing)
Drop Durability
1.5M
Sealing
< 10^11
Ambient Light
100,000 Lux (Sunlight)
Decode Capability
Symbologies
1D Symbologies:
Code128, Code39, Code93, EAN-13, EAN-8, UPC-E, UPC-A, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar, Codabar, MSI Plessey, Code 11, Standard 2 of 5, Plessey, ChinaPost 2 of 5, Code 16K, Code49, GS1 Composite

2D Symbologies:
PDF417, MicroPDF417, Data Matrix, MaxiCode, QR Code, Micro QR Code, Aztec, Han Xin, GridMatrix

Postal Codes:
Japanese Post, Australian Post, Korean35, MailMark, Netherlands KIX, UK Postal, US Postal, US Planet, USPS_4CB

OCR:
OCR-B (Passport MRZ)
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge
EMC/RF
TBA
Safety Approval
TBA
Environmental
RoHS 2.0
