MT8159B 2D Wireless Scanner

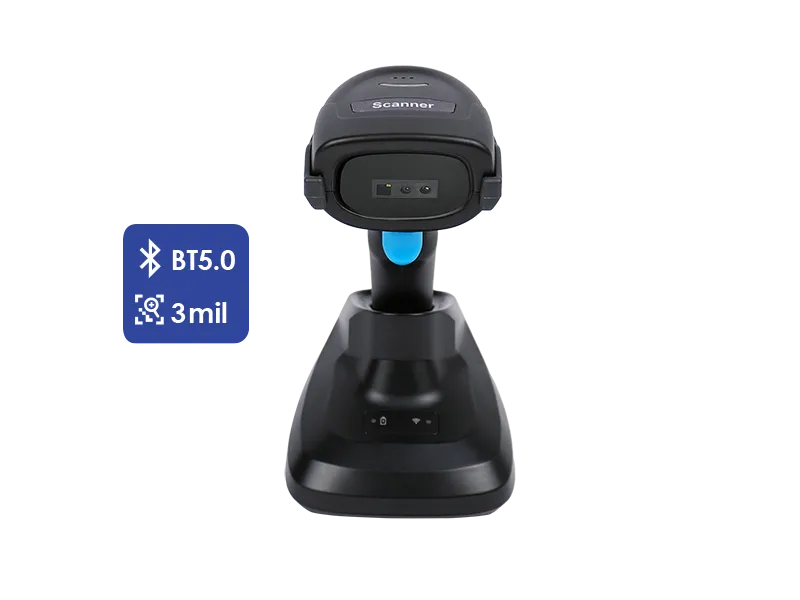

  • MT8159B_2D Wireless_Scanner_Charger_Marson_800x600

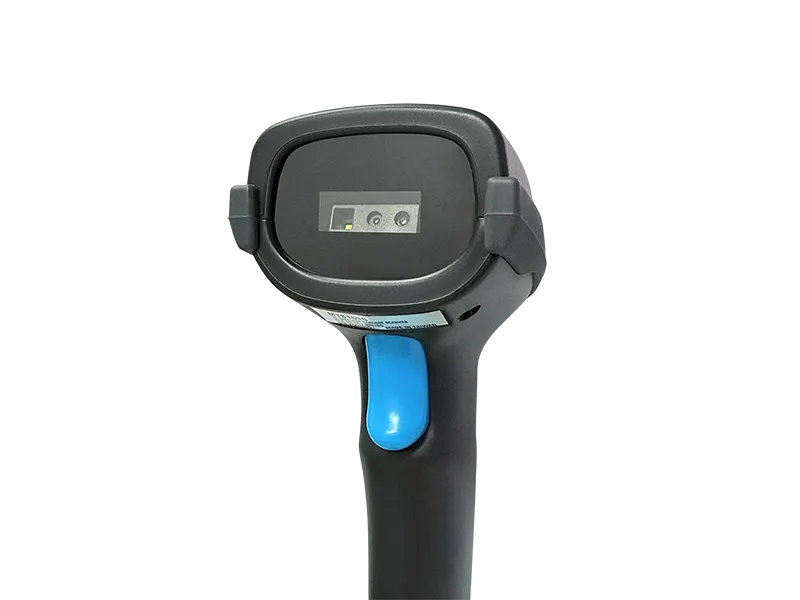

  • 2D_Wireless_Handheld_Scanner_Marson_800x600

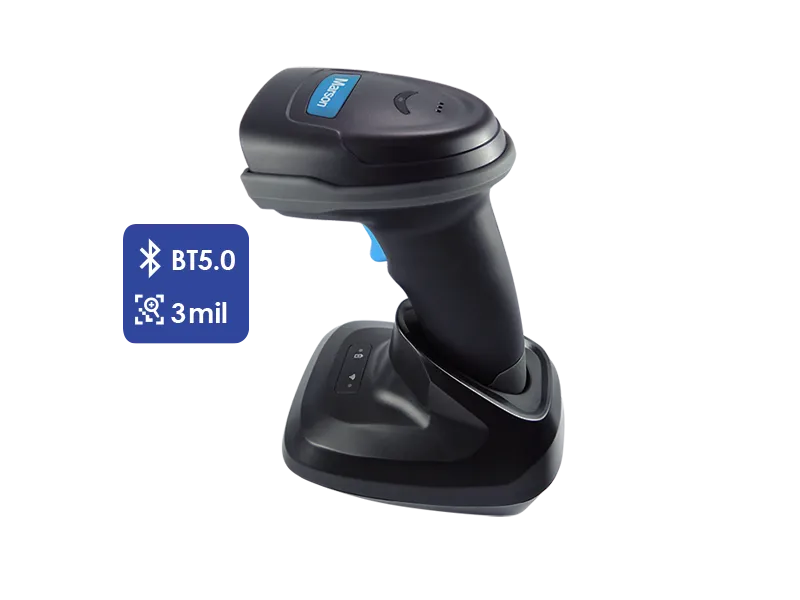

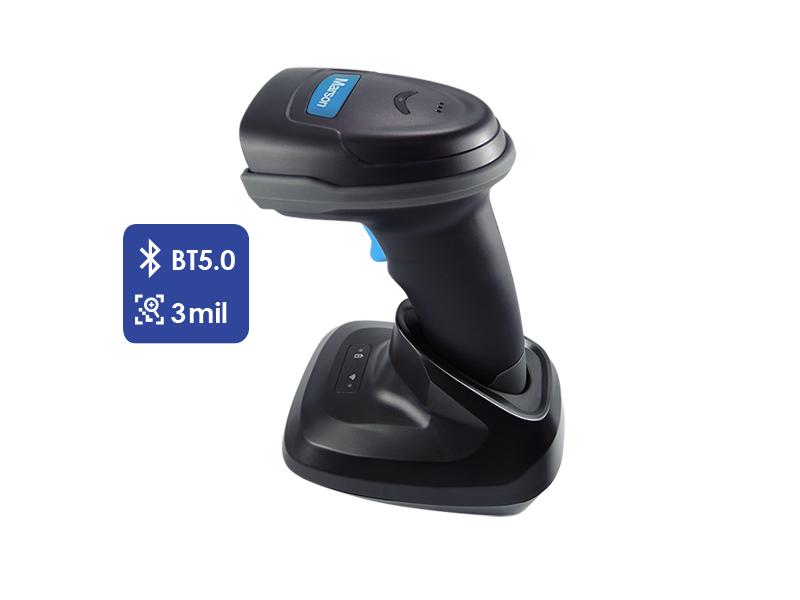

  • MT8159B_2D_Wireless_Scanner_18000_scans_per full_Charge

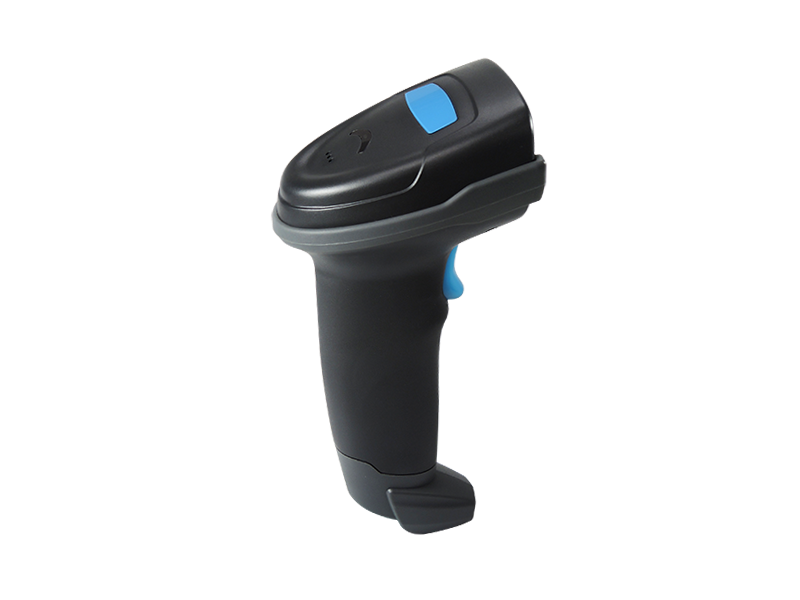

  • MT8159B_2D Wireless Scanner_Marson_RR_800x600
  • 2D_Barcode_Wireless_Scanner_onhand_MT8159B_Marson_800x600
  • MT8159B_2D_Wireless_Handheld_Scanner_Library_Marson
  • MT8159B_2D_Wireless_Scanner_Manufacturing_Marson_800x600
  • MT8159B_2D_Wireless_Handheld_Barcode_Scanner_Inventory_Marson

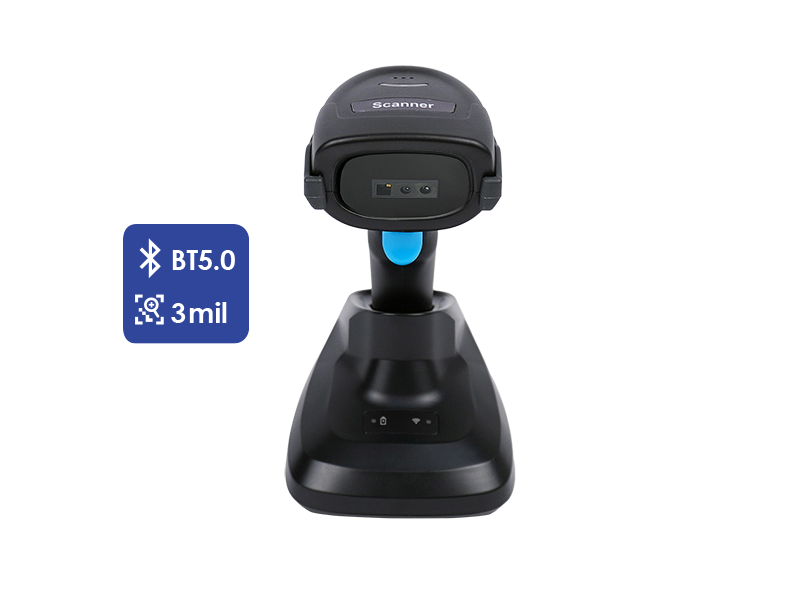

  • MT8159B_2D Wireless_Scanner_Charger_Marson_800x600

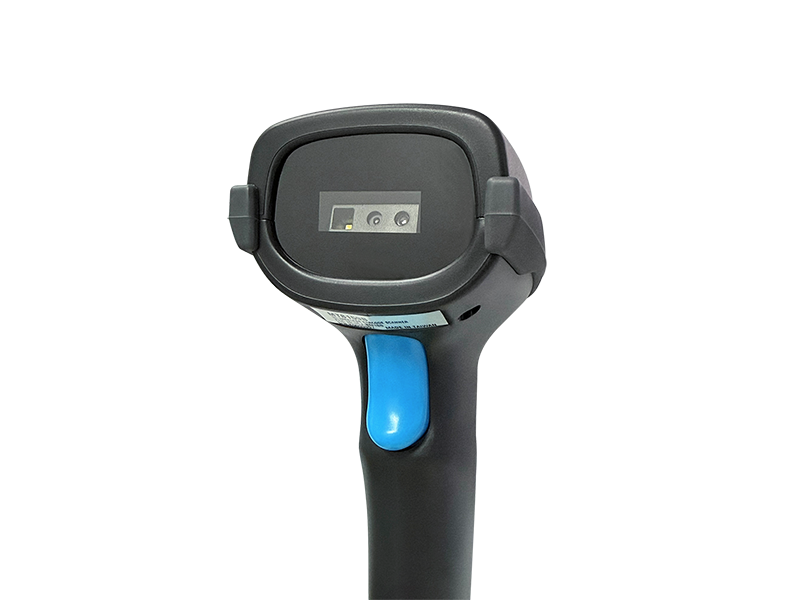

  • 2D_Wireless_Handheld_Scanner_Marson_800x600
  • MT8159B_2D_Wireless_Scanner_18000_scans_per full_Charge

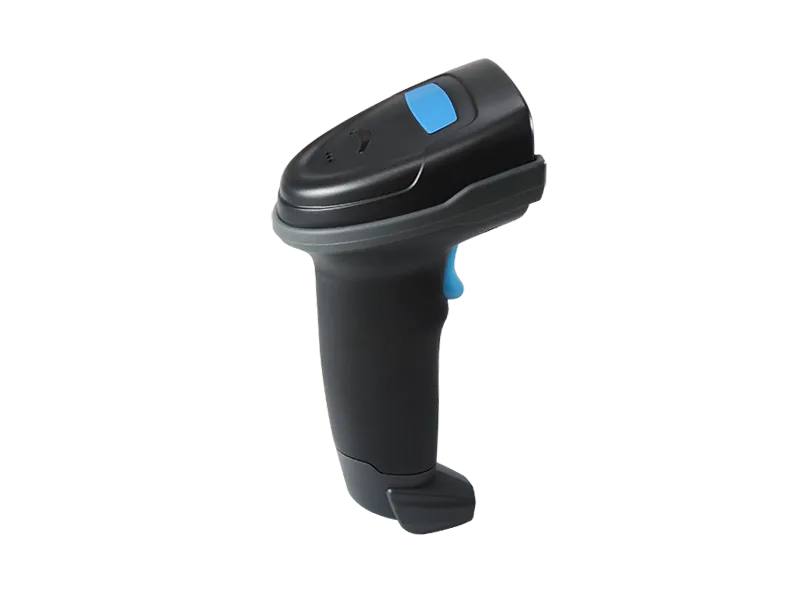

  • MT8159B_2D Wireless Scanner_Marson_RR_800x600

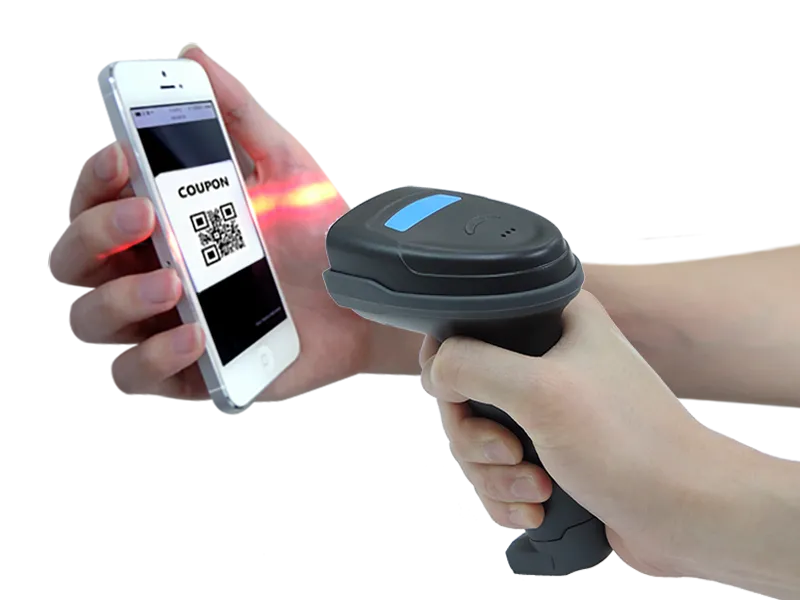

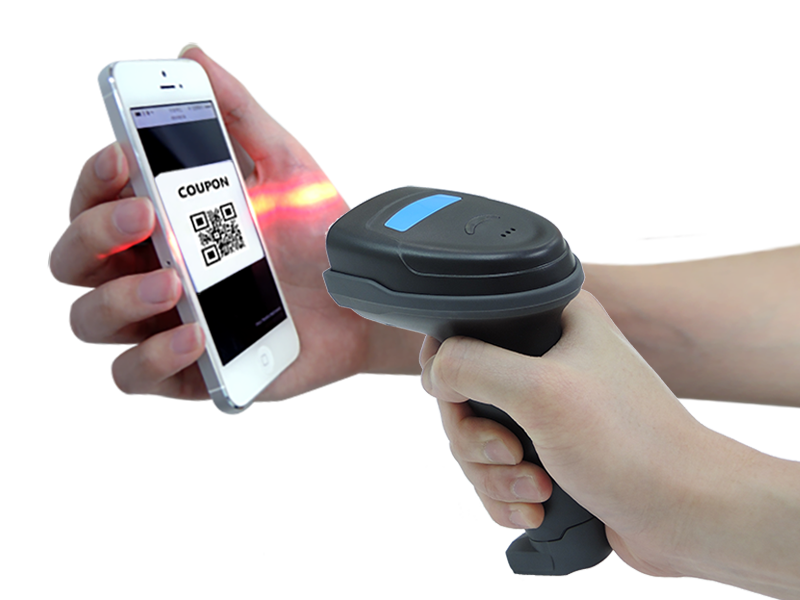

  • 2D_Barcode_Wireless_Scanner_onhand_MT8159B_Marson_800x600

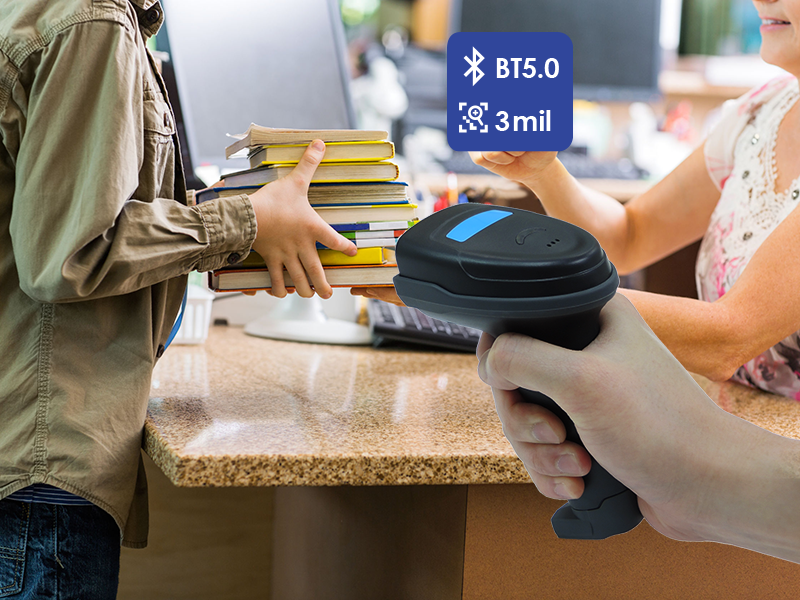

  • MT8159B_2D_Wireless_Handheld_Scanner_Library_Marson

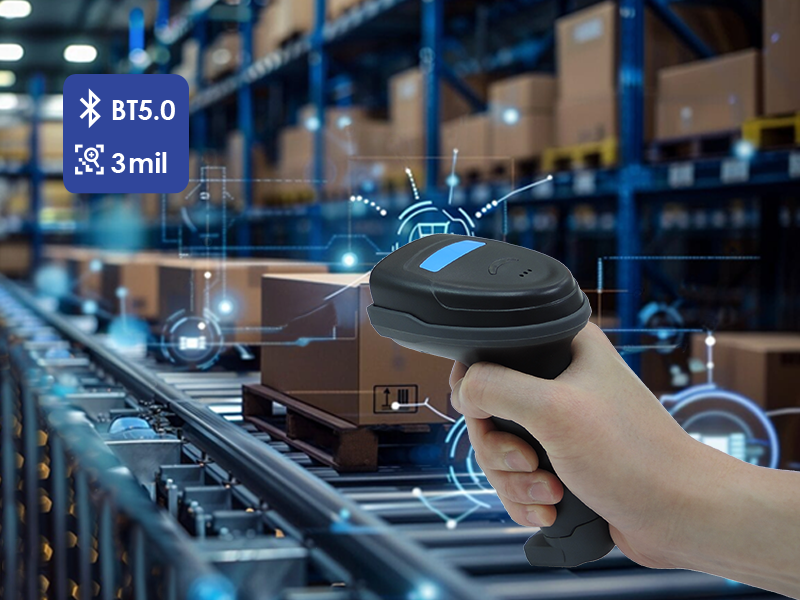

  • MT8159B_2D_Wireless_Scanner_Manufacturing_Marson_800x600

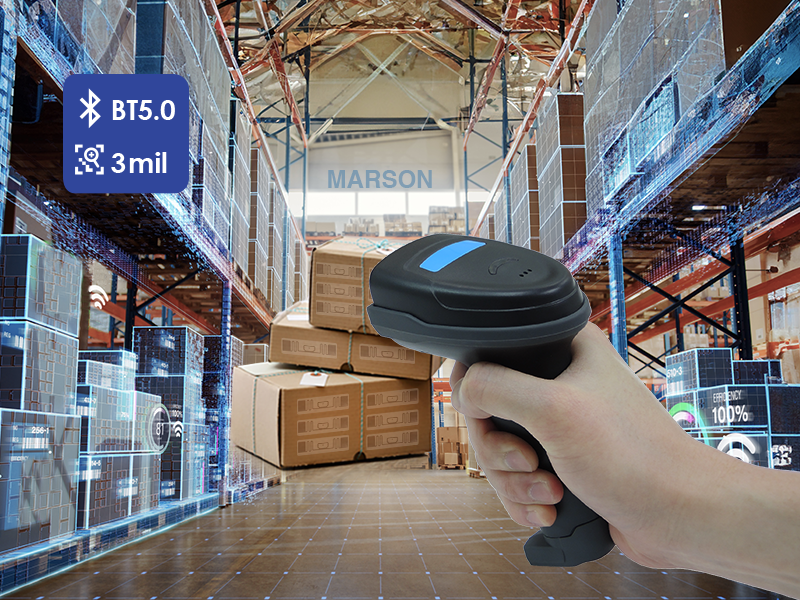

  • MT8159B_2D_Wireless_Handheld_Barcode_Scanner_Inventory_Marson

Instant Wireless Connectivity

Experience seamless connectivity with the MT8159B 2D Wireless Scanner, featuring both built-in Bluetooth and charging base transceiver technology. Effortlessly transmit data to your host device from up to 50 meters away using Bluetooth, or use USB connectivity through the convenient charging cradle. Designed for comfort and flexibility, this ergonomic scanner is your ideal companion for daily operations across retail, manufacturing and inventory management.



  • 2D with BT5.0 & Cradle Connectivity
  • Up to 50M of BT5.0 coverage
  • 18,000 scans per full charge
  • Supports data editing and haptic feedback



360_View_Icon_20241210 View Black photo: https://scankit.istaging.com/20241204-MS-001/20241204-MS-001.html

360_View_Icon_20241210 View White photo: https://scankit.istaging.com/20241204-MS-001/20241204-MS-001.html

* New product available for free testing. For detailed conditions, please contact our sales representative.

Application
  • Retail
    Retail
  • Manufacturing
    Manufacturing
  • Inventory
    Inventory
Share:

FEATURES

Enhanced Scanning Precision and Speed
The lightning-fast scanning of MT8159B boasts an impressive scan time of just 1/10 second on average. Whether it's linear barcodes or major 2D barcodes, MT8159B delivers unparalleled scanning accuracy and efficiency. Its superior scanning capabilities coupled with the ability to scan in any orientation, result in reduced downtime and increased productivity for enterprises of all sizess.


Increasing Mobile Productivity
MT8159B 2D Wireless Scanner is the ultimate solution for swift barcode data capture, whether from printed labels or on-screen displays. With a robust 2000mAh battery, the MT8159B keeps you productive throughout your busiest shifts, ensuring uninterrupted operation for over 20 hours of continuous use.


Flexible Data Collection Capabilities
Unlock limitless data collection possibilities with the MT8159B Wireless Scanner. Seamlessly switch between online wireless mode and offline memory mode, featuring a range of communication interfaces (BT HID, BT SPP, BT BLE, Cradle Mode and Memory Mode). With its built-in memory, MT8159B ensures convenient storage and upload of barcode data, empowering users with unparalleled flexibility and ease of use.


Wireless Connectivity Made Easy
Built with Bluetooth® technology, the MT8159B 2D Wireless Scanner offers effortless wireless connectivity. Seamlessly transmit data to your host device from distances of up to 50 meters when utilizing Bluetooth capability. In situations where your host device lacks wireless connectivity, MT8159B comes to the rescue, instantly providing an USB connectivity through its charging base, ensuring uninterrupted workflow efficiency.

SPECIFICATIONS

Optic & Performance
Light Source
White LED
Visible red LED
Sensor
Image Sensor
Resolution
3mil/ 0.075mm
Scan Angle
Horizontal 43°
Vertical 33°
Pitch Angle
±55°
Skew Angle
±55°
Roll Angle
360°
Width of Field
176mm (13Mil Code39)
Memory
2MB (20,000 barcodes)
Typical D.O.F (Environment: 800 lux)
5 Mil Code39: 42 ~ 204mm
13 Mil UPC/EAN: 45 ~ 350mm
15 Mil QR Code: 28 ~ 246mm
6.67 Mil PDF417: 46 ~ 152mm
10 Mil Data Matrix: 37 ~ 150mm
Physical Characteristics
Dimension
L167 x W70 x H86 mm (Scanner)
L123 x W94 x H72 mm (Cradle)
Weight
146g (Scanner)
180g (Cradle)
Color
Black
Material
ABS
Connector
RJ45
Cable
RJ45 to USB A(M) Cable, 2.1M
Trigger
Scan Button
Indicator
LED, Buzzer, Vibrator
Electrical
Operation Voltage
3.7 VDC ± 5%
Working Current
< 200mA
Standby Current
< 60mA
Number of Scan (per full charge)
> 18,000 scans
(1 scan/ 5 secs, Bluetooth connected)
Connectivity
Radio
Bluetooth 5.0 (Dual Mode)
Range
164 ft/ 50m (line of sight)
Interface/Profile
Scanner: BT HID / BT SPP / BT BLE / Cradle Mode / Memory Mode
Cradle: USB HID / USB COM
User Environment
Operating Temperature
-10 ~ 50°C
Storage Temperature
-20 ~ 60°C
Humidity
0% ~ 95%RH (Non-condensing)
Drop Durability
1.8M
Ambient Light
100,000 Lux (Sunlight)
Decode Capability
Symbologies
1D Symbologies:
Code 128, EAN-13, EAN8-, UPC-E, UPC-A, ISBN, ISSN, Code 11, Interleaved 2 of 5, Code 39, Code 93, Code 32, Codabar, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI Plessey, GS1 Databar, Febraban, Composite

2D Symbologies:
QR Code. Micro QR Code, PDF417, MicroPDF417, Data Matrix, Aztec, MaxiCode, HanXin, Dotcode
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge
EMC/RF
TELEC, FCC Part15C
Safety Approval
IEC62471 (Exempt Group)
Environmental
RoHS 2.0
Accessory
Cable
RJ45(M) to USB A(M) Cable, 1.8M, Gray
(P/N: 7042-0320000, QTY: 1)
Charging Cradle
Charging Cradle
(P/N: 2815-0010001, QTY: 1)
