Marson Barcode Scanner Brand Story

MT850 2D Pocket Wireless Scanner

  • Wireless_Scanner_MT850_L_Marson_800x600
  • Wireless_Scanner_MT850_2D_Portable_Marson_800x600
  • MT850-3
  • MT850-2
  • MT1227L-retail
  • Wireless_Scanner_MT850_L_Marson_800x600
  • Wireless_Scanner_MT850_2D_Portable_Marson_800x600
  • MT850-3
  • MT850-2
  • MT1227L-retail

High Performance at Great Value

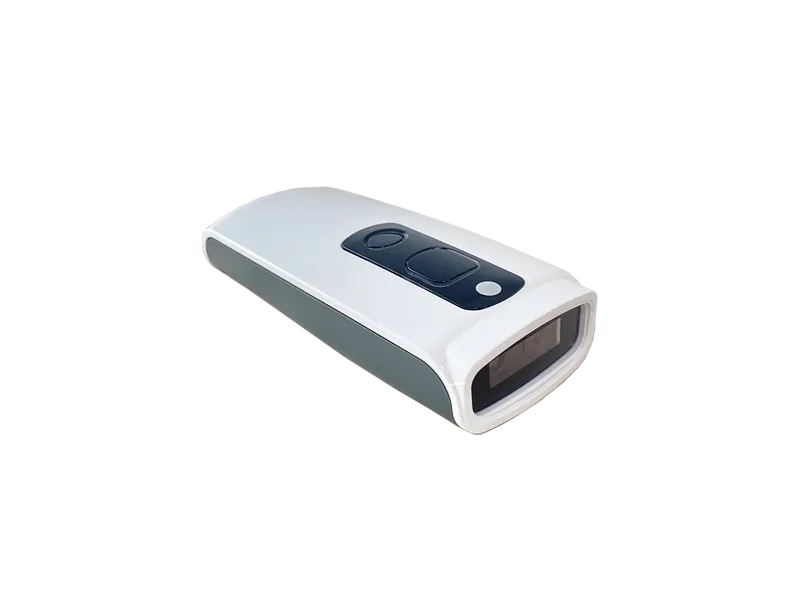

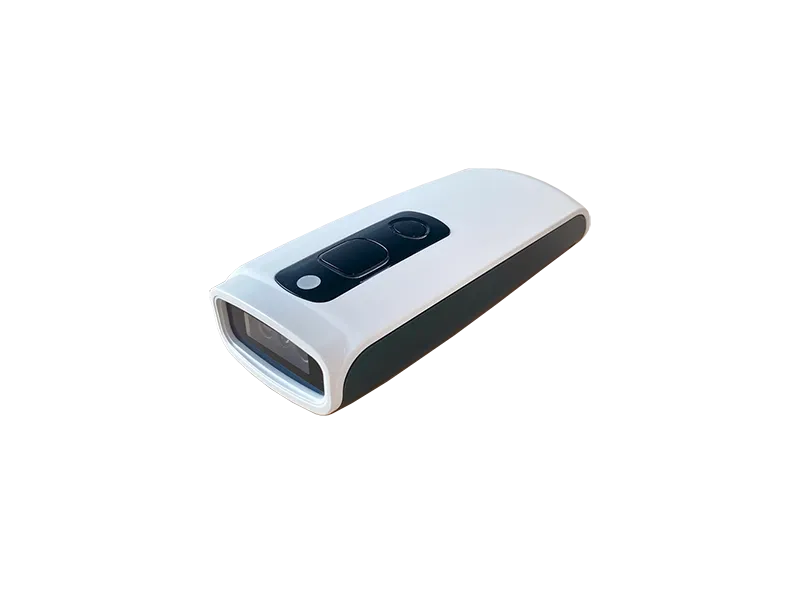

MT850 is a 2D portable scanner featuring Bluetooth® 5.0 technology, fast and reliable scanning performance, and robust, ergonomic design at affordable cost. MT850 can capture all 1D and 2D barcodes from paper surfaces or mobile displays in one-tenth of a second. MT850 2D Portable Scanner delivers high efficiency, especially for users who work with iOS and Android mobile devices. It is ideal for a wide range of applications including retail, mobile POS, healthcare, inventory and access control.



  • 2D / Long Range / IP55 / Medical
  • Bluetooth 5.0 technology
  • Disinfectant-ready housing
  • Waterproof and dust-resistant
Application
  • Retail
    Retail
  • Healthcare
    Healthcare
  • Mobile POS
    Mobile POS
  • Access Control
    Access Control
  • Inventory
    Inventory
Share:

FEATURES

Fast and Versatile Barcode Scanning Anywhere

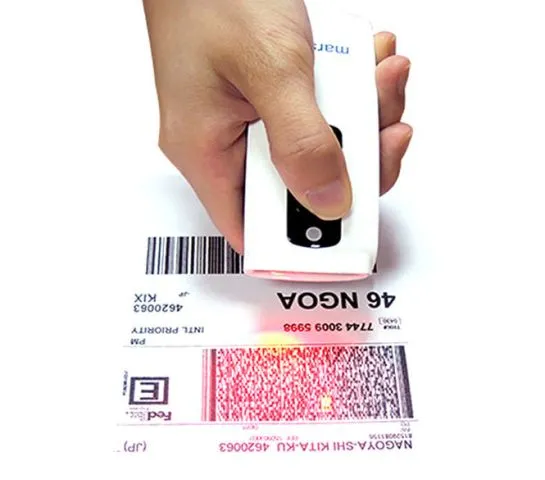

MT850, on an average of 1/10 seconds, scans all linear barcodes and major 2D codes including PDF417, MicroPDF417, DataMatrix, QR Code, Micro QR Code, and Aztec printed on labels with either matte or glossy surface or displayed on a mobile phone or LCD screen. MT850 portable scanner also provides ambient light immunity which is ideal for both indoor and outdoor scanning applications.



Anti-Microbial Design for Healthcare

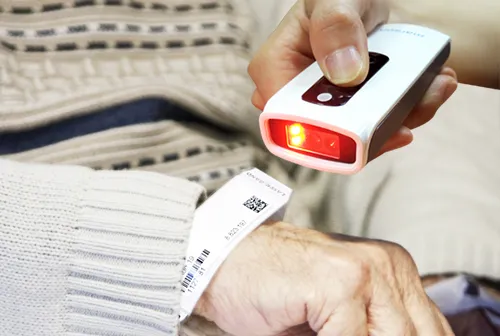

Built with anti-microbial technology, MT850 can endure repeated alcohol or bleach cleaning and keeps preventing the reproduction and spread of bacteria among nurses in hospital. The disinfectant-ready MT850 portable scanner enables caregivers to quickly identify patients and dispense medications, keep up-to-date record and manage medical supplies inventory in an error-free manner.
Medical Certifications: ISO 22196 (JIS Z 2801); ISO 11737-1, ISO 11737-2


Mobile-Friendly Scanning
With enhanced optical design and the latest decode algorithm, MT850 virtually scans all 1D and 2D barcodes printed on any surface, either paper-based label with either matte or glossy surface, or mobile phone display and LCD screen. As a result, users may expand their business into many new applications such as Inventory, eCoupon, eTicket, Digital ID cards, and mobile payments.


Flexible Operations of Data Collection
MT850 is versatile with the advantage of conducting flexible data collection operations of both on-line wireless mode and off-line memory mode including multiple communication interfaces (BT HID/ BT SPP/ USB HID/ USB VCP). With a built-in memory of 2MB, the MT850 portable scanner can store up to 20,000 data scanned in user-friendly file format when it is operated in memory mode.


Industrial-class Protection
The ruggedized design of MT850 includes industrial-class protection with a rubber bezel in the front and 1.5 meters drop resistance which ensures that the MT850 handheld barcode scanner withstands the impact of everyday drops and bumps and prevents the scanner window from any damage or scratch in all kinds of working environments.

SPECIFICATIONS

Optic & Performance
Light Source
White LED
Visible red LED
Sensor
640 x 480
Resolution
3mil / 0.075mm
Scan Angle
Horizontal 40°
Vertical 30°
Pitch Angle
±60°
Skew Angle
±50°
Roll Angle
360°
Print Contrast Ratio
20%
Width of Field
141mm (13Mil Code39)
Memory
2MB (20,000 barcodes)
Typical D.O.F (Environment: 800 lux)
3 Mil Code 39 : 65 ~ 95 mm
5 Mil Code 39: 41 ~ 152 mm
13 Mil UPC/EAN : 45 ~ 285 mm
15 Mil QR Code : 40 ~ 210 mm
6.67 Mil PDF417 : 50 ~ 145 mm
10 Mil DataMatrix : 40~ 140 mm
Physical Characteristics
Dimension
W42.5 x L102 x H21.5 mm
Weight
71g
Color
White
Material
PC
Connector
Type-C USB Port
Cable
Type-C(M) to USB A(M) Cable, 1.5M
Trigger
Scan Button(Trigger)
Function Button(iSO Hotkey/Delete Button)
Indicator
LED, Buzzer, Vibrator
Electrical
Operation Voltage
3.7 VDC ± 5%
Working Current
< 330mA
Standby Current
< 60mA
Battery
3.7V, 1000mAh, Li-Polymer Battery
Number of Scan (per full charge)
> 10,000 scans
(1 scan/ 5 secs, Bluetooth connected)
Connectivity
Radio
Bluetooth® 5.0 dual mode (Class 2)
Range
66 ft/ 20M (line of sight)
Interface/Profile
BT HID
BT SPP
USB HID
USB VCP
Memory
User Environment
Operating Temperature
-10 ~ 50˚C
Storage Temperature
-20 ~ 60˚C
Humidity
0% ~ 95%RH (Non-condensing)
Drop Durability
1.5M
Sealing
IP55
Ambient Light
70,000 Lux (Sunlight)
Decode Capability
Symbologies
1D Symbologies: UPC-A/ UPC-E, EAN-8/ EAN-13, Code128, GS1-128, Code 39, Code32, Code 93, Code11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Codabar, MSI, GS1 Databar

2D Symbologies: QR Code, Micro QR Code, Data Matrix, PDF417, MicroPDF417, Aztec, MaxiCode
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge
EMC/RF
FCC Part15C, TELEC
Safety Approval
EN/IEC62471 (Exempt Group)
Environmental
WEEE, RoHS 2.0
Medical Compliance
ISO 22196 (JIS Z 2801), ISO 11737-1/2
Accessory
Cable
Type-C USB Cable, 1.5M, Black
(P/N: 7040-2820000, QTY: 1)
Hand Strap
Large Hand Strap, 0.53M, Black
(P/N: 8001-1002X00, QTY: 1)
