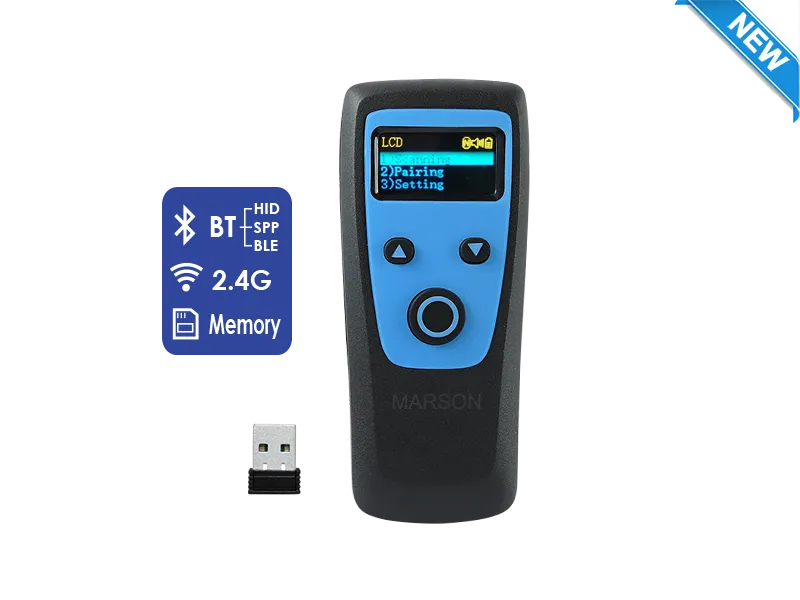

MT810 2D Pocket Data Collector
Empowering mobile data collection on-the-go
Experience seamless connectivity with MT810's Bluetooth® and 2.4G technology, providing effortless data transmission up to 30 meters away. Equipped with advanced megapixel scan engine, it ensures exceptional performance across all distances. It also increases mobile productivity with battery power supporting more than 13 hours of continuous operation. With flexible data collection capabilities and a bright LCD screen, MT810 delivers unmatched user experience.
- Easy-to-read LCD display screen
- 10,000 scans per full charge
- 16MB (2 million) memory capacity
- 2.4G and Bluetooth connection
View photo: https://scankit.istaging.com/20241204-MS-003/20241204-MS-003.html
New product available for free testing. For detailed conditions, please contact our sales representative.
-

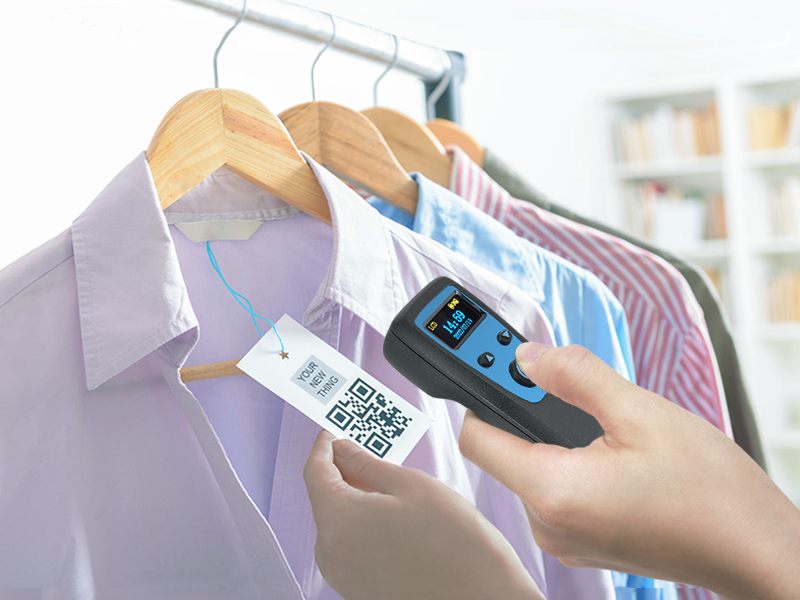

Retail -
Field Service -
Mobile POS -
Access Control -
Inventory -
Asset Management
FEATURES

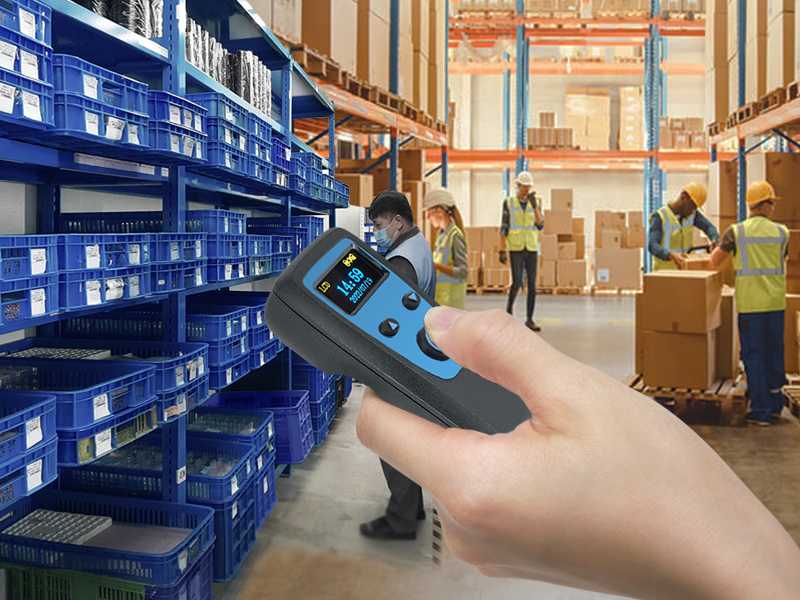

Wireless Connectivity Made Easy
Built-in with Bluetooth® and 2.4G technology, MT810 2D Wireless Scanner offers effortless wireless connectivity. Seamlessly transmit data to your host device from distances of up to 10 meters when utilizing Bluetooth capability. In situations where your host device lacks wireless connectivity, MT810 comes to the rescue, instantly providing an extended 30-meter range via its 2.4G dongle, ensuring uninterrupted workflow efficiency.
Outstanding Performance across All Distances
MT810 is equipped with a powerful scan engine which delivers exceptional performance in logistics and warehouse applications. Its auto-adaptive snappy scanning capability ensures efficient barcode scanning from near to far distances. With high-quality optics and a superior sensor, MT810 can read high-density barcodes as small as 3 mil and capture commodity barcodes up to 394mm away.
Increasing Mobile Productivity

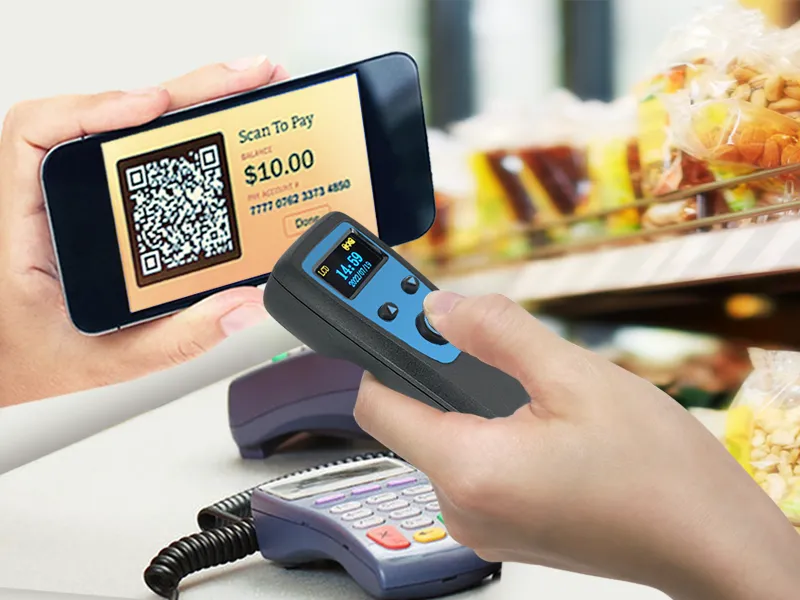

MT810 2D Portable Data Collector is the ultimate solution for swift barcode data capture, whether from printed labels or on-screen displays. Supported by 800mAh battery, the MT810 keeps you productive throughout your busiest shifts, ensuring uninterrupted operation for over 13 hours of continuous use.
Flexible Data Collection Capabilities
Unlock limitless data collection possibilities with the MT810 2D Portable Data Collector. Seamlessly switch between online wireless mode and offline memory mode, featuring a range of communication interfaces (2.4G, BT HID, BT SPP, BT BLE, and Memory). With its built-in 16MB memory that stores over 2 million digits of barcode data, MT810 ensures convenient storage and upload of barcode data, empowering users with unparalleled flexibility and ease of use.
Better User Experience
MT810 sets the standard for safety and convenience. Adhering to the rigorous Photo-biological Safety Standard EN/IEC 62471, the scanner's light source ensures total eye safety during prolonged use. Stay informed and efficient with built-in buzzer, vibrator and LCD screen, providing clear feedback on wireless connection status and successful scans. Crafted with user comfort in mind.
SPECIFICATIONS
Visible red LED
Vertical 30°
5 Mil Code39: 31 ~ 173mm
13 Mil UPC/ EAN: 40 ~ 394mm
15 Mil QR Code: 16 ~ 241mm
6.67 Mil PDF417: 43 ~ 159mm
10 Mil Data Matrix: 43 ~ 154mm
(1 scan/ 5 secs, Bluetooth connected)
BT: 32.8 ft/ 10m (line of sight)
BT HID
BT SPP
BT BLE
Memory
UPC-A/ UPC-E, EAN-8/ EAN-13, Code128, GS1-128, Code 39, Code32, Code 93, Code11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Codabar, MSI, GS1 Databar
2D Symbologies:
QR Code, Micro QR Code, Data Matrix, PDF417, MicroPDF417, Aztec, MaxiCode
(P/N: 7040-2820001)
(P/N: 8009-0084000)
(P/N: 8010-0091000)
(P/N: 9001-3900000)
