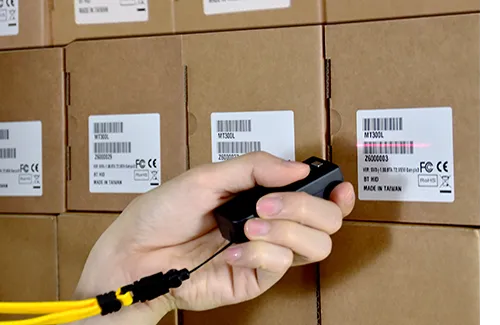

  • MT110L-warehouse
  • MT110L-onscreen2
  • MT110LM-hospital-1

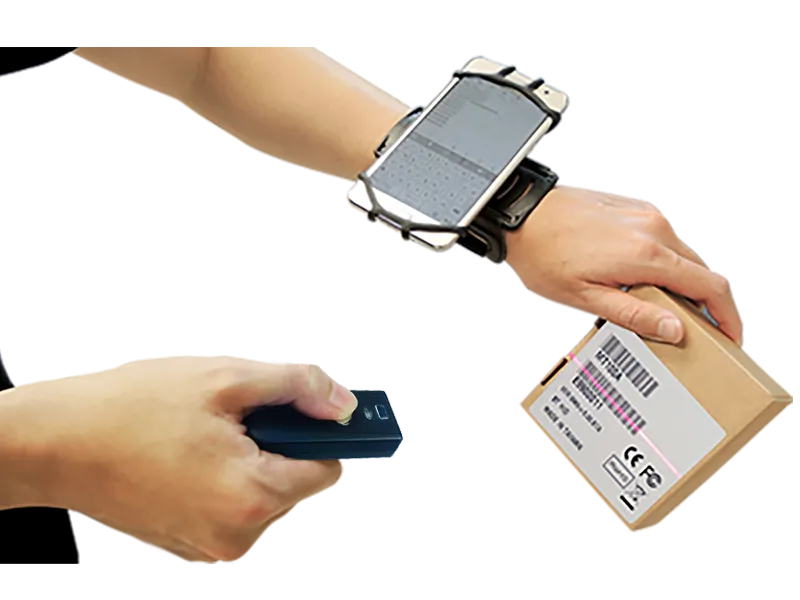

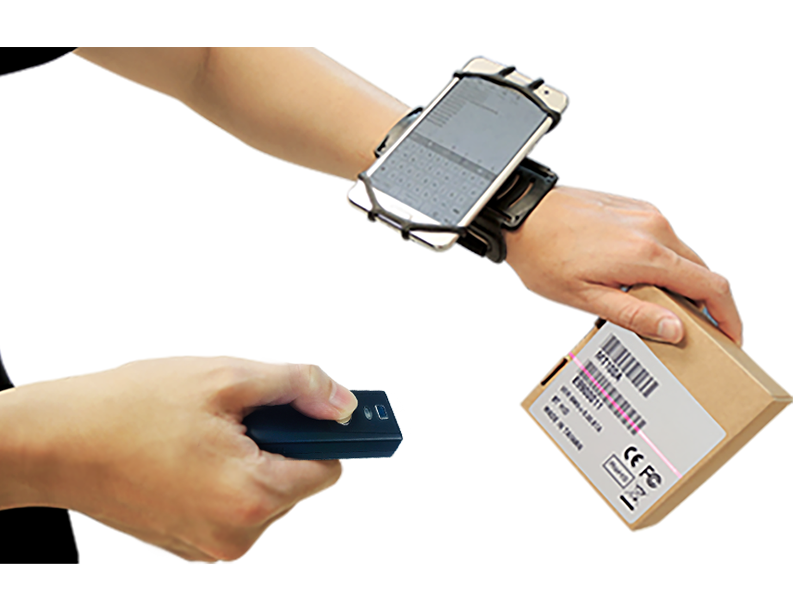

  • MT62-hand-MT110L-2a
  • MT110L_LM_SBR_Laser_Scanner_1000x600
  • KeyRing-2
  • MT110L-barcode-scanner-bag
  • MT110L-warehouse
  • MT110L-onscreen2
  • MT110LM-hospital-1
  • MT62-hand-MT110L-2a

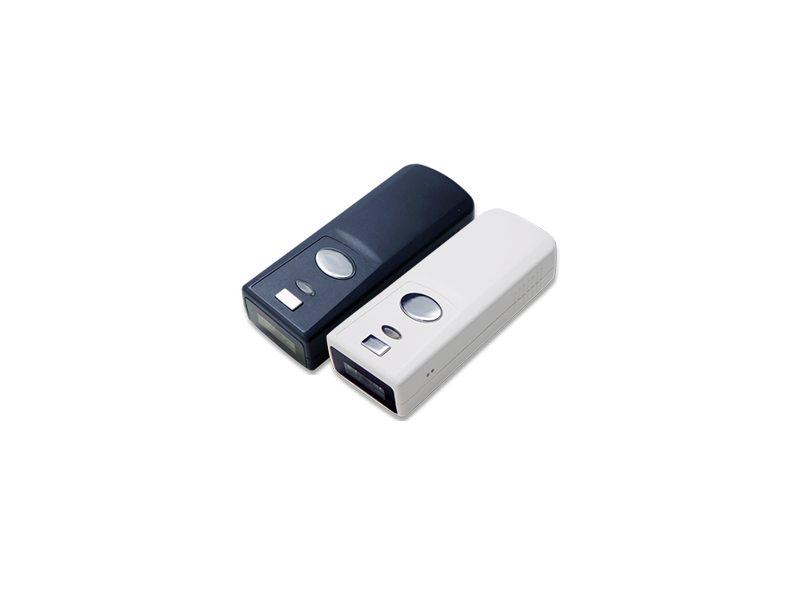

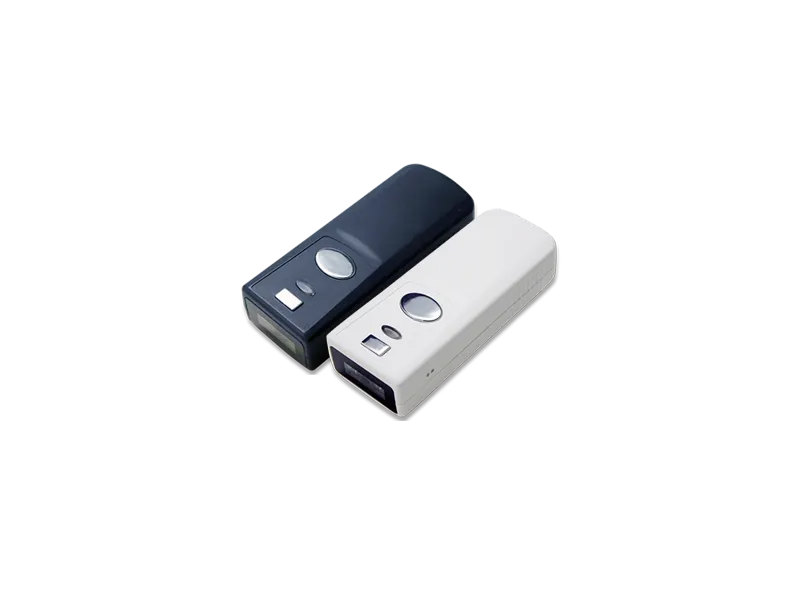

Mini Companion Barcode Scanner
With built-in Bluetooth® technology, MT110L/LM mini scanner can send data to the host up to 20 meters away. This pocket-sized lightweight wireless 1D barcode scanner is a dexterous mini companion for mobile POS which works on laptops, tablets, smart phones or other mobile devices with iOS®, Android® and Windows®. It is ideal for a wide range of applications including retail, field service, mobile POS, healthcare and inventory management.



。1D / 380sps / Middle Range / Medical / SBR Laser
。Read on-screen barcode with laser
。Multiple connection options
。LED, audio and haptic feedback

Application
  • Retail
    Retail
  • Field Service
    Field Service
  • Healthcare
    Healthcare
  • Mobile POS
    Mobile POS
  • Inventory
    Inventory
Share:

FEATURES

Increasing Mobile Productivity
MT110L wireless barcode scanner is designed to enable users to quickly capture any 1D barcodes data in either printed or on-screen (LCD) format. Built with power saving technology, MT110L can help user operate around the clock with less downtime ensuring mobile productivity during the entire busy shift for more than 5400 scans.


Flexible Operations of Data Collection
MT110L wireless barcode scanner is versatile with the advantage of conducting flexible data collection operations of both on-line wireless mode and off-line memory mode including multiple communication interfaces (BT HID/ BT SPP/ USB HID/ USB VCP). With a built-in memory of 2MB, MT110L can store up to 20,000 data scanned in user-friendly file format when it is operated in memory mode.

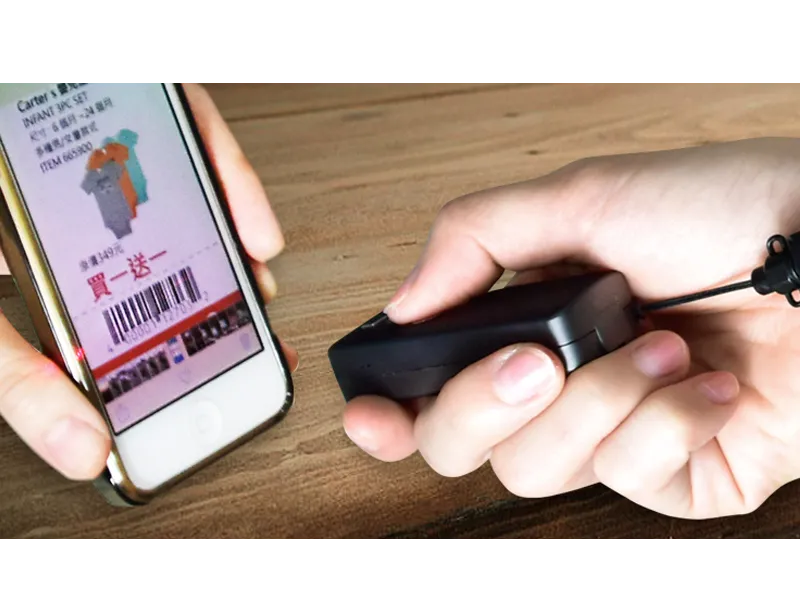

On-Screen Barcode Readability
The MT110L SBR (Screen Barcode Readable) laser scanner is equipped with a thin, sharp and safe class 1 laser aimer which helps users to accurately aim at barcodes. With Marson's patented laser technology, no moving parts, configurable brightness and auto-adaptive illumination, MT110L wireless barcode scanner ensures accurate barcode capture of either printed or on-screen (LCD) barcodes.


Scanning Barcode Anytime, Anywhere

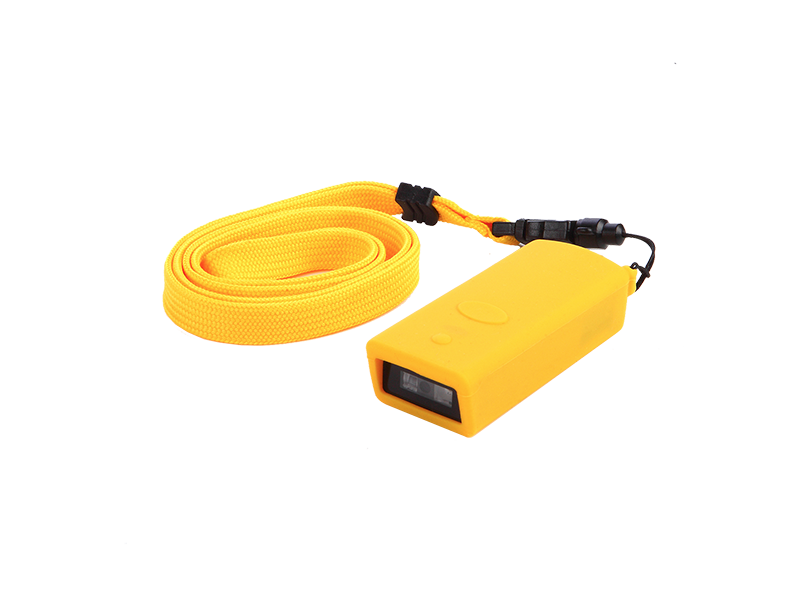

At the size of a chewing gum pack and with the weight of only 27g, MT110L can be easily carried around in a pocket or on a lanyard. MT110L wireless barcode scanner is also built with state-of-the-art optic design and outstanding algorithm to immunize ambient light impact and extend working range from indoor to outdoor and even under direct sunlight. Besides, MT110L is shipped with useful accessories including a silicone cover which prevents the scanner from the infiltration of dust and water spray.

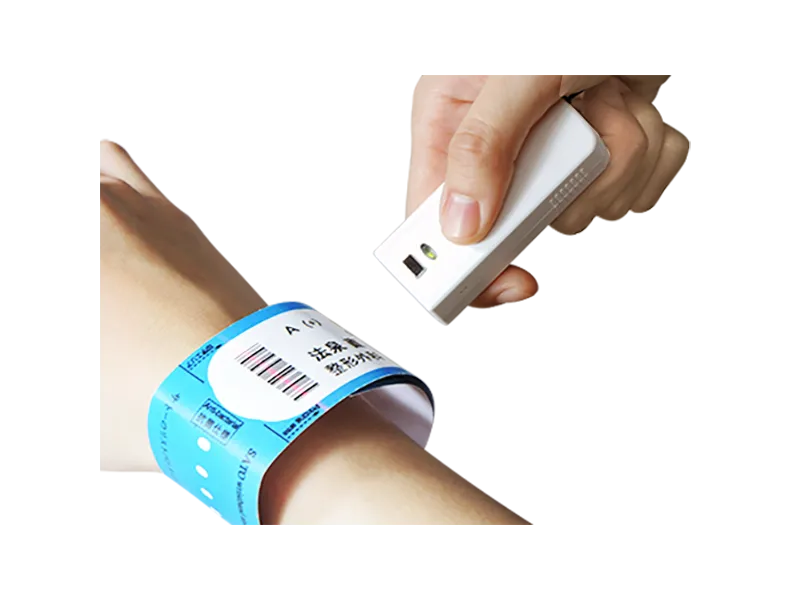

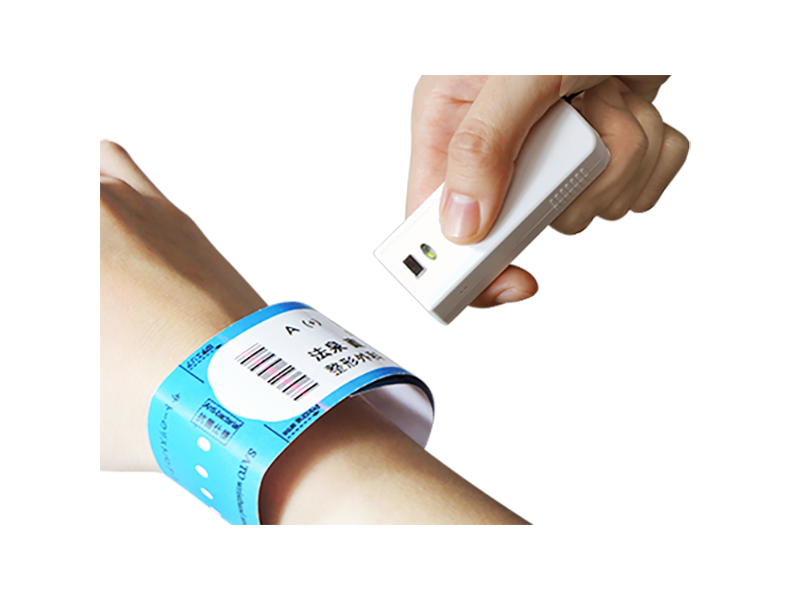

Anti-Microbial Scanner for Healthcare
Built with anti-microbial technology, MT110LM (medical model) wireless barcode scanner can endure repeated alcohol or bleach cleaning and keeps preventing the reproduction and spread of bacteria among nurses in hospital. The disinfectant-ready MT110LM (medical model) enables caregivers to quickly identify patients and dispense medications, keep up-to-date record and manage medical supplies inventory in an error-free manner.
Medical Certifications: ISO 22196 (JIS Z 2801); ISO 11737-1, ISO 11737-2


The Better User Experience
As classified by Laser Safety Standard EN/IEC 60825-1 (Class 1), FDA, the light source of MT110L is completely safe for human eyes even after long hours operation. With built-in buzzer, LED and vibrator, MT110L wireless barcode scanner provides full variety of Good Read responses such as audible, visual and haptic feedback. MT110L is also easily configured on the host computer by Marson's free user-friendly software tool, Ez Utility®.

SPECIFICATIONS

Optic & Performance
Light Source
650nm visible red Laser
visible white LED
Sensor
Linear Image Sensor
Scan Rate
380 Scans/ sec
Resolution
4Mil/ 0.1mm
Scan Angle
41°
Pitch Angle
±30°
Skew Angle
±40°
Roll Angle
±20°
Print Contrast Ratio
30%
Width of Field
141mm (13Mil Code39)
Memory
2MB
Typical D.O.F (Environment: 800 lux)
Code 39
4 Mil : 30 ~ 86 mm
5 Mil : 28 ~ 111 mm
10 Mil: 27 ~ 213 mm
15 Mil: 41 ~ 318 mm
UPC/EAN
13 Mil: 40 ~ 241 mm
Physical Characteristics
Dimension
W27.5 x L68.4 x H16.2 mm
Weight
29g
Color
Black / White
Material
PC
Connector
Type-C USB Port
Cable
Type-C(M) to USB A(M) Cable, 1.5M
Trigger
Scan Button, Function Button
Indicator
Buzzer, LED, Vibrator
Electrical
Operation Voltage
3.7 VDC ± 5%
Working Current
< 210mA
Standby Current
< 60mA
Battery
3.7V, 400mAh, Li-Polymer Battery
Number of Scan (per full charge)
5400 scans
(1 scan/ 5 secs, Bluetooth connected)
Connectivity
Radio
Bluetooth® 5.0 (Class2)
Range
66 ft/ 20M (line of sight)
Interface/Profile
BT HID
BT SPP
USB HID
USB VCP
Memory
User Environment
Operating Temperature
-10°C ~ 50°C
Storage Temperature
-20°C ~ 60°C
Humidity
0% ~ 95%RH (Non-condensing)
Drop Durability
1.5M
Ambient Light
50,000 Lux (Sunlight)
Decode Capability
Symbologies
UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge
EMC/RF
FCC Part 15B Class B, Part 15C, CE EN55022/24/32, EN301489-1-17, EN300328 V2.1.1
Safety Approval
EN/IEC60825-1 (Class 1), FDA, EN/IEC60950-1
Environmental
WEEE, RoHS 2.0, PAHs
Medical Compliance
ISO 22196 (JIS Z 2801)
ISO 11737-1/2
Patent
Taiwan
M 395218
M 432094
M 457244
China
ZL 201020287072.6
ZL 2012 2 0056120.X
ZL 2013 2 0042893.7
United States
US 8,220,712 B2
US 8,770,845
Japan
3176098
3183429
3198782
Germany
202012101013.5
202013100644.0
Accessory
Cable
Type-C(M) to USB Cable, 1.5M, Black
(P/N: 7040-2820000, QTY: 1)

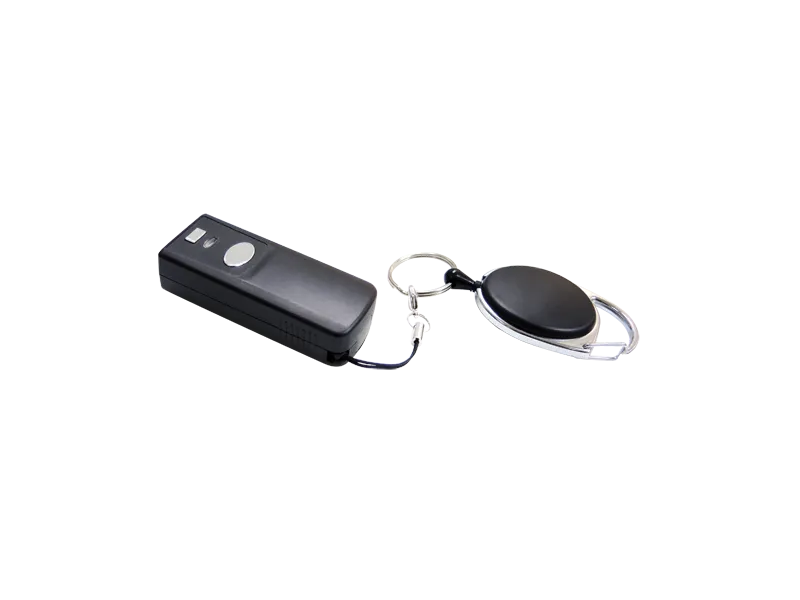

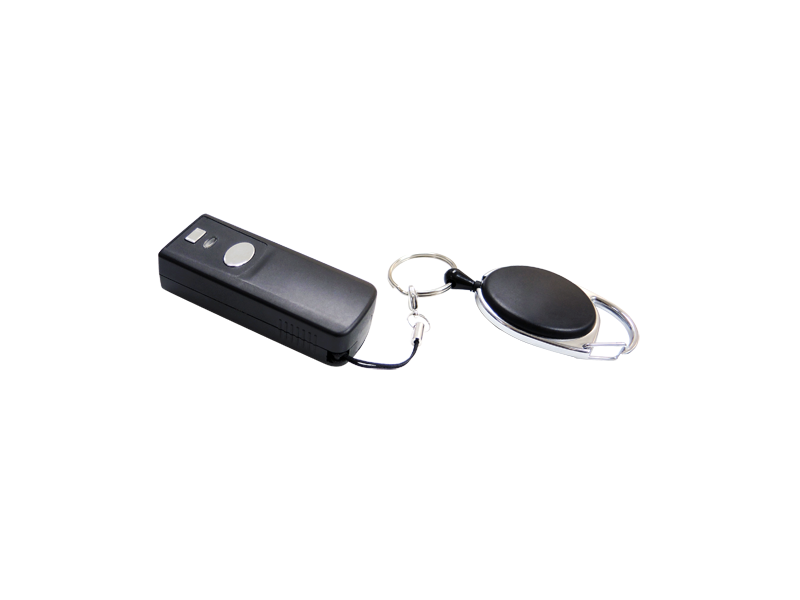

Hand Strap
Retractable Short Strap, Black
(P/N: 8009-0021000, QTY: 1)
Retractable Carabiner Badge Holder Reels, Black
(P/N: 8009-00ZZ000, QTY: 1)
MT110L: Large Hand Strap, 0.53M, Yellow
(P/N: 8001-1004X00, QTY: 1)
MT110LM: Large Hand Strap, 0.53M, Green
(P/N: 8001-1003X00, QTY: 1)

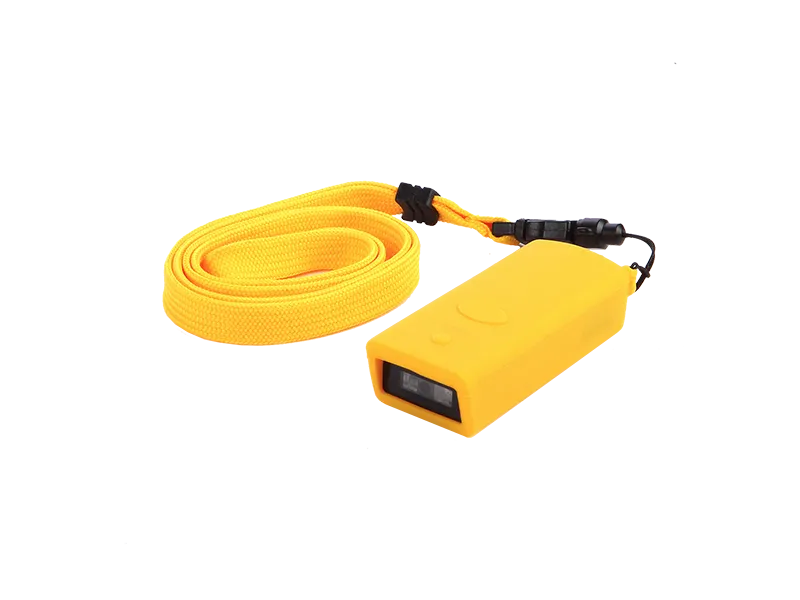

Silicone Cover
MT110L: Silicone Cover, Waterproof, Yellow
(P/N: 3020-1006X00, QTY: 1)
MT110LM: Silicone Cover, Anti-microbial, Transparent
(P/N: 3020-1011X00, QTY: 1)
