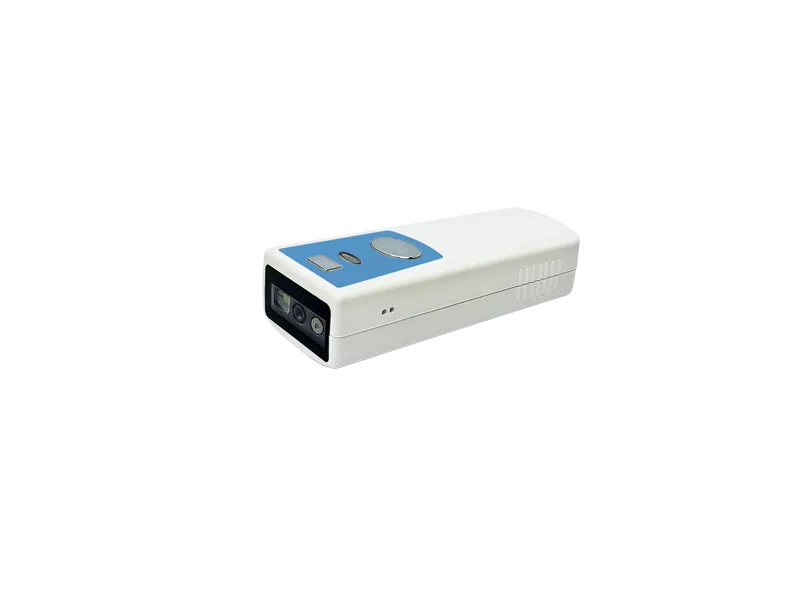

MT828L 2D Wireless Pocket Scanner

  • MT828L_2D_Pocket_Scanner_800x600
  • MT828L_MT828LM_Wireless_Scanner_800x600
  • Healthcare_MT828L_2D_Pocket_Scanner_Marson_800x600
  • MT820_2D_Mini_Wireless_Scanner_onhand
  • Wireless_Scanner_MT820_MT100A_wristband
  • MT828L_2D_Wireless_Scanner_KeyRing_800x600
  • MT828L_Wireless_Scanner_360 view
  • MT828L_2D_Pocket_Scanner_800x600
  • MT828L_MT828LM_Wireless_Scanner_800x600
  • Healthcare_MT828L_2D_Pocket_Scanner_Marson_800x600
  • MT820_2D_Mini_Wireless_Scanner_onhand
  • Wireless_Scanner_MT820_MT100A_wristband
  • MT828L_2D_Wireless_Scanner_KeyRing_800x600
  • MT828L_Wireless_Scanner_360 view

Why Pocket Scanner are the 2D Wireless Scanning Solution
MT828L are ultra-compact 2D wireless pocket scanners featuring Bluetooth® 5.0, high-performance scanning, and MT828LM disinfectant-ready options for healthcare, retail, and mobile POS. Their megapixel sensor ensures excellent motion tolerance and high-density reading.



How Pocket Scanner Enhance Your Application Performance
With multiple interfaces, memory mode for offline capture, and visual/audio/haptic feedback, MT828L/MT828LM support fast, accurate, and hygienic data collection, and transfer without being tethered to a cable, making them efficient for tasks like inventory management, retail, and field work.



  • Megapixel sensor, Laser aimer
  • Visual, audio, haptic feedback
  • Disinfectant-ready, antimicrobial housing
  • Lightweight, ergonomic pocket design



   Marson_Compare_with_Benchmark_icon_175x36

360_View_Icon_20241210 View Black photo: https://scankit.istaging.com/20241204-MS-005/20241204-MS-005.html

360_View_Icon_20241210 View White photo: https://scankit.istaging.com/20241204-MS-004/20241204-MS-004.html

Application
  • Retail
    Retail
  • Healthcare
    Healthcare
  • Mobile POS
    Mobile POS
  • Access Control
    Access Control
  • Inventory
    Inventory
Share:

FEATURES

Wireless Freedom, Mobile Convenience
With Bluetooth® 5.0, MT828L 2D Wireless Pocket Scanner transmits data up to 20 meters, supporting iOS, Android, and Windows devices. Weighing only 29g, it's ideal for pocket carry or lanyard wear, enabling mobile workers to scan on the go indoors or outdoors with no cables or limitations.


High-Performance Scanning Near and Far
Equipped with a 1280 x 800 megapixel sensor and advanced optics, MT828L 2D Wireless Pocket Scanner captures barcodes from 3 mil to 730mm away. Its crosshair laser aimer ensures precision targeting, while the engine adapts to varying distances for fast, accurate reads across all barcode types.


Healthcare-Ready, Hygienic Design
MT828LM variant features anti-microbial housing and withstands regular disinfection using alcohol or bleach. Certified to ISO 22196 and ISO 11737 standards, it supports error-free data capture in clinical environments for patient ID, medication tracking, and inventory.
Medical Certifications: ISO 22196 (JIS Z 2801); ISO 11737-1, ISO 11737-2


Scan Now, Upload Later
MT828L 2D Wireless Pocket Scanner supports both real-time and batch scanning with a 2MB memory that stores up to 20,000 scans. Compatible with BT HID, BT SPP, USB HID, and USB VCP, it offers flexible modes to match dynamic work environments even without a live connection.


Ready for Any Environment
Built for indoor and outdoor use, MT828L 2D Wireless Pocket Scanner resists ambient light up to 100,000 lux and survives 1.5-meter drops. Its silicone cover offers additional protection from dust and water spray, ensuring reliable operation in harsh or mobile environments.


User-Centric Feedback and Safety
Designed for continuous use, MT828L 2D Wireless Pocket Scanner complies with EN/IEC 60825-1 Laser safety standards. Visual (LED), audible (buzzer), and tactile (vibration) indicators provide versatile feedback for every scan. Configuration is simple using Marson's free Ez Utility® software tool.

SPECIFICATIONS

Optic & Performance
Light Source
White LED
Visible red Laser
Sensor
1280 x 800
Resolution
3mil
Scan Angle
Horizontal 39°
Vertical 26°
Pitch Angle
±60°
Skew Angle
±60°
Roll Angle
360°
Print Contrast Ratio
10%
Width of Field
200mm (13Mil Code39)
Memory
2MB (20,000 barcodes)
Typical D.O.F (Environment: 800 lux)
3 Mil Code39: 100 ~ 190mm
5 Mil Code39: 53 ~ 334mm
13 Mil UPC/EAN: 57 ~ 730mm
15 Mil QR Code: 22 ~ 422mm
10 Mil Data Matrix: 74 ~ 286mm
6.67 Mil PDF417: 86 ~ 287mm
Physical Characteristics
Dimension
W27.5 x L68.4 x H16.2 mm
Weight
29g
Color
MT828L: Black
MT828LM: White
Material
PC+ABS
Connector
Type-C USB Port
Cable
Type-C(M) to USB A(M) Cable, 1.5M
Trigger
Scan Button, Function Button
Indicator
LED, Buzzer, Vibrator
Electrical
Operation Voltage
3.7VDC ± 5%
Working Current
< 360mA
Standby Current
< 50mA
Battery
3.7V, 400mAh, Li-Polymer Battery
Number of Scan (per full charge)
5000 scans
(1 scan/ 5 secs, Bluetooth connected)
Connectivity
Radio
Bluetooth 5.0 (Class 2)
Range
66 ft/ 20m (line of sight)
Interface/Profile
BT HID
BT SPP
USB HID
USB VCP
Memory
User Environment
Operating Temperature
-10 ~ 50°C
Storage Temperature
-20 ~ 60°C
Humidity
0% ~ 95%RH (Non-condensing)
Drop Durability
1.5M
Ambient Light
100,000 Lux (Sunlight)
Decode Capability
Symbologies
1D Symbologies:
Code128, Code39, Code93, EAN-13, EAN-8, UPC-E, UPC-A, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar, Codabar, MSI Plessey, Code 11, Standard 2 of 5, Plessey, ChinaPost 2 of 5, Code 16K, Code49, GS1 Composite

2D Symbologies:
PDF417, MicroPDF417, Data Matrix, MaxiCode, QR Code, Micro QR Code, Aztec, Han Xin, GridMatrix

Postal Codes:
Japanese Post, Australian Post, Korean35, MailMark, Netherlands KIX, UK Postal, US Postal, US Planet, USPS_4CB

OCR:
OCR-B (Passport MRZ)
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge
EMC/RF
FCC Part15C, TELEC
Safety Approval
IEC60825-1 (Class 1)
Environmental
RoHS 2.0
Medical Compliance
JIS Z 2801 (MT828LM only)
