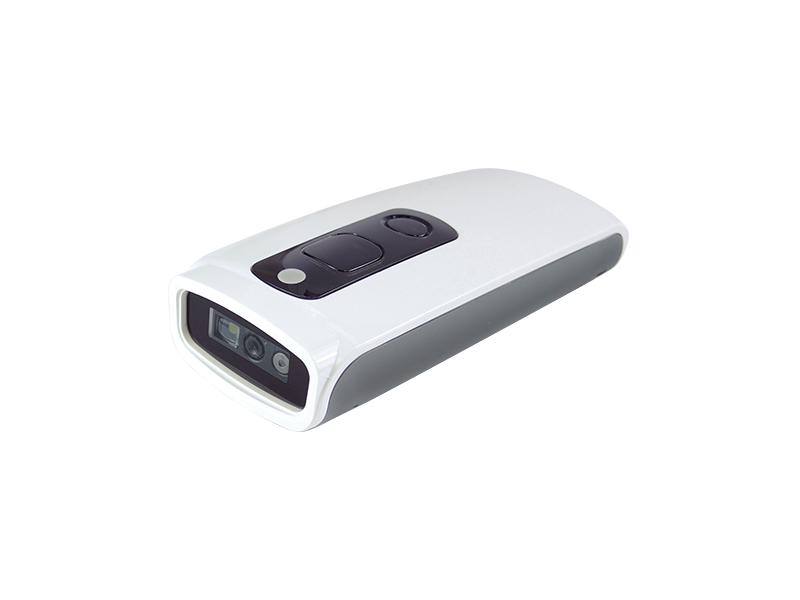

MT858L 2D Pocket Wireless Scanner

  • MT858L_2D_Pocket_Wireless_Scanner_Marson_800x600
  • MT858L_2D_Pocket_Wireless_Scanner_ Inventory_Marson_800x600
  • MT858L_2D_Pocket_Wireless_Scanner_Inventory_Scanner_Medical_Marson_800x600
  • MT858L _2D_Pocket_Wireless_Scanner_Precision_Crosshair_Laser_Aiming_Ticket_Marson_800x600
  • MT858L_2D_Pocket_Wireless_Scanner_Megapixel_High_Resolution_Performance_Marson_800x600
  • MT858L_2D_Pocket_Wireless_Scanner_IP55_Marson_800x600
  • MT858L_2D_Pocket_Wireless_Scanner_Marson_800x600
  • MT858L_2D_Pocket_Wireless_Scanner_ Inventory_Marson_800x600
  • MT858L_2D_Pocket_Wireless_Scanner_Inventory_Scanner_Medical_Marson_800x600
  • MT858L _2D_Pocket_Wireless_Scanner_Precision_Crosshair_Laser_Aiming_Ticket_Marson_800x600
  • MT858L_2D_Pocket_Wireless_Scanner_Megapixel_High_Resolution_Performance_Marson_800x600
  • MT858L_2D_Pocket_Wireless_Scanner_IP55_Marson_800x600

Why Wireless Pocket Scanners Excel in Industry
Wireless pocket scanners provide unmatched convenience and mobility for users who need quick and reliable data capture on the go. Their compact, handheld form allows for effortless scanning in tight or fast-moving environments such as hospitals, warehouses, retail floors, and field operations, improving workflow efficiency while reducing physical strain.



How 2D Scanning Improves Industrial Efficiency
Advanced 2D imaging technology allows fast and accurate decoding of both standard and complex barcodes. The integrated crosshair laser aimer ensures precise targeting of codes, improving first-read rates on damaged, low-contrast, or screen-displayed barcodes. This reduces scanning errors and ensures smoother data collection, faster processing, and increased overall operational productivity.



  • Megapixel scanning, laser aiming
  • Reading distance up to 690mm
  • High motion tolerance for fast-moving barcodes
  • IP55 industrial-grade durability
  • Medical-grade anti-microbial housing
  • Long battery life of up to 10000 scans
  • Bluetooth 5.0 with up to 20M wireless coverage
  • Supports 1D, 2D, postal codes, and OCR



* New product available for free testing. For detailed conditions, please contact our sales representative.

Application
  • Retail
    Retail
  • Logistics
    Logistics
  • Field Service
    Field Service
  • Healthcare
    Healthcare
  • Mobile POS
    Mobile POS
  • Access Control
    Access Control
  • Inventory
    Inventory
Share:

FEATURES

Designed for Healthcare Applications
Anti-microbial pocket scanner withstands repeated disinfectant cleaning, preventing bacterial spread. Ideal for hospitals, it enables caregivers to quickly identify patients, dispense medications, update records, and manage medical supplies efficiently and accurately.

Medical Certifications: ISO 22196/JIS Z 2801; ISO 11737-1/2

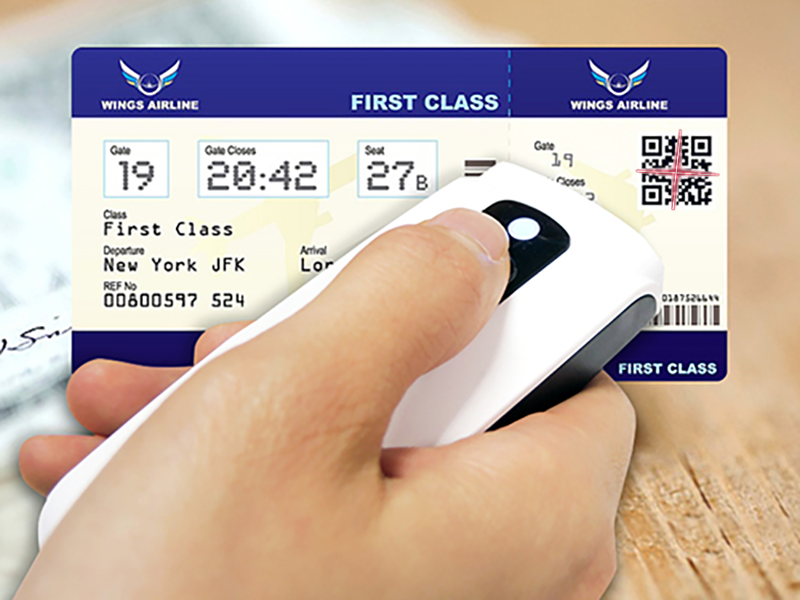

Precision Crosshair Laser Aiming
Integrated crosshair laser guides users to align barcodes quickly and accurately, reducing rescans and boosting first-pass read rates. This ensures precise scanning even on small, high-density, or difficult-to-position codes in fast-paced environments.

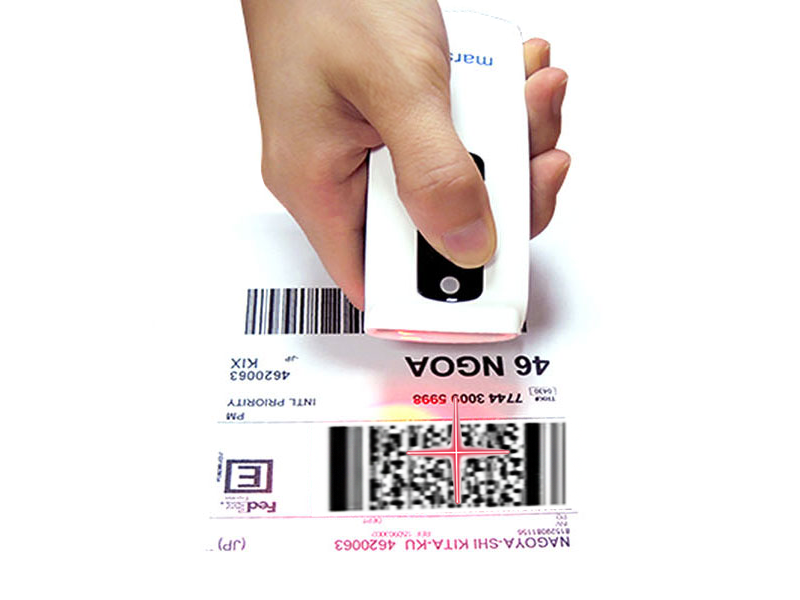

Megapixel High-Resolution Performance
A high-resolution megapixel image sensor enables the scanner to capture fine barcode details with superior clarity. It accurately reads both 1D and 2D codes, including small, high-density symbols, making it ideal for demanding data collection environments.


Extended Reading Distance Capability
With a decoding range reaching up to 690mm, it allows users to scan barcodes across counters, boxes, or shelves without precise alignment. This extended working distance improves speed and reduces unnecessary hand movement.


Flexible Wireless & Wired Connectivity
Bluetooth 5.0 provides stable wireless data transmission for mobile operations, while USB HID and VCP modes support reliable wired connectivity. This versatility ensures smooth integration across various host devices and system platforms.

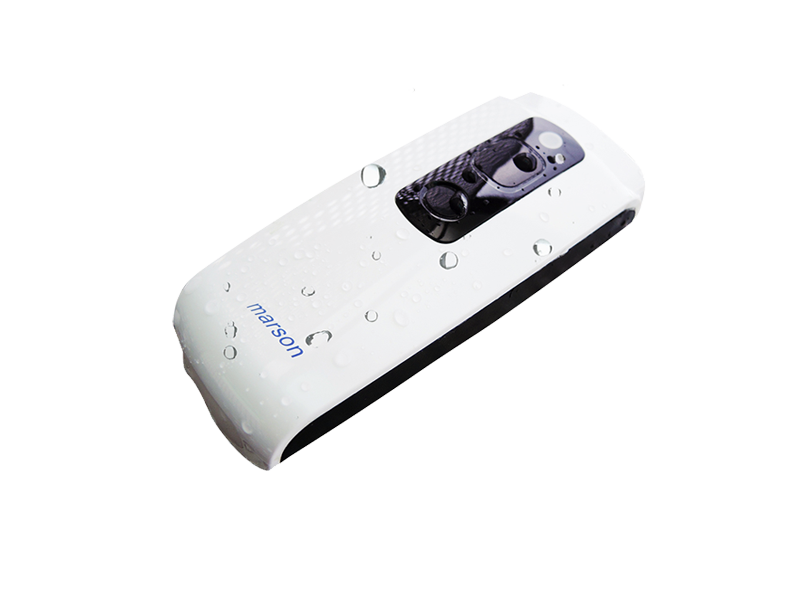

Industrial-Grade Durability
IP55 sealing protects the device from dust and water spray, while 1.5-meter drop resistance enhances durability in real-world working conditions. This rugged construction supports consistent performance in both indoor and outdoor environments.


Multi-Mode User Feedback
Visual LED, audible buzzer, and vibration alerts provide clear confirmation of every successful scan. These feedback options improve usability in noisy, low-light, or high-traffic conditionss.

SPECIFICATIONS

Optic & Performance
Light Source
White LED
Visible red LED
Sensor
1280 x 800
Scan Rate
3mil
Scan Angle
Horizontal 39°
Vertical 26°
Pitch Angle
±60°
Skew Angle
±60°
Roll Angle
360°
Print Contrast Ratio
10%
Width of Field
200mm (13Mil Code39)
Memory
2MB (20,000 barcodes)
Typical D.O.F (Environment: 800 lux)
3 Mil Code39: 100 ~ 180mm
5 Mil Code39: 80 ~ 300mm
13 Mil UPC/EAN: 60 ~ 690mm
15 Mil QR Code: 40 ~ 380mm
10 Mil Data Matrix: 90 ~ 260mm
6.67 Mil PDF417: 100 ~ 250mm
Physical Characteristics
Dimension
W42.5 x L102 x H21.5 mm
Weight
68g
Color
White
Material
PC
Connector
Type-C USB Port
Cable
Type-C(M) to USB A(M) Cable, 1.5M
Trigger
Scan Button, Function Button
Indicator
LED, Buzzer, Vibrator
Electrical
Operation Voltage
3.7VDC ± 5%
Working Current
< 400mA
Standby Current
< 70mA
Battery
3.7V, 1000mAh, Li-Polymer Battery
Number of Scan (per full charge)
10000 scans
(1 scan/ 5 secs, Bluetooth connected)
Connectivity
Radio
Bluetooth 5.0 (Class 2)
Range
66 ft/ 20m (line of sight)
Interface/Profile
BT HID
BT SPP
USB HID
USB VCP
Memory
User Environment
Operating Temperature
-10 ~ 50°C
Storage Temperature
-20 ~ 60°C
Humidity
0% ~ 95%RH (Non-condensing)
Drop Durability
1.5M
Sealing
IP55
Ambient Light
100,000 Lux (Sunlight)
Decode Capability
Symbologies
1D Symbologies:
Code128, Code39, Code93, EAN-13, EAN-8, UPC-E, UPC-A, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar, Codabar, MSI Plessey, Code 11, Standard 2 of 5, ChinaPost 2 of 5, GS1 Composite

2D Symbologies:
PDF417, MicroPDF417, Data Matrix, MaxiCode, QR Code, Micro QR Code, Aztec, Han Xin, GridMatrix

Postal Codes:
Japanese Post, Australian Post, Korean35, MailMark, Netherlands KIX, UK Postal, US Postnet, US Planet, USPS_4CB

OCR:
OCR-B (Passport MRZ)
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge
EMC/RF
FCC Part15C, TELEC
Safety Approval
IEC60825-1 (Class 1)
Environmental
RoHS 2.0
