Wearable Design for Hands-Free Scanning

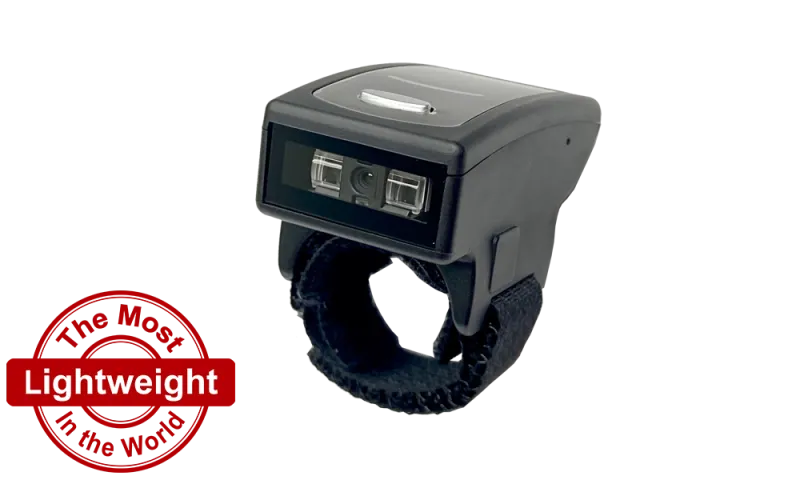

Wearable ring scanner weighing 20.5g, MT500 is the most lightweight wearable wireless 1D barcode scanner in the world that enables hands-free scanning for mobile operators who work with laptops, tablets, smartphones, or other mobile devices with iOS, Android, and Windows. With built-in Bluetooth 5.0 technology, the MT500 wearable ring scanner can send data to the host up to 20 meters away. It is ideal for a wide range of applications including logistics, field service and inventory management.



。1D / 650sps / Wireless
。The most lightweight in the world
。Touch-activated scan switch
。Hands-free barcode scanning

Application
  • Logistics
    Logistics
  • Field Service
    Field Service
  • Inventory
    Inventory
Share:

FEATURES

Wearable Design for Hands-Free Scanning
Wearable ring scanner weighing at 20.5g, MT500 is the most lightweight wearable wireless 1D barcode scanner in the world that enables both hands-free scanning for mobile operators who work with laptops, tablets, Smartphone, or other mobile devices with iOS®, Android®, and Windows®. With built-in Bluetooth® 5.0 technology, the MT500 wearable ring scanner can send data to the host up to 20 meters away.



Right and Left-Handed, With or Without Glove
MT500 wearable ring scanner allows mobile operators to wear on either their right or left hand according to user's preferences, and the operator can wear gloves or don't. MT500 wearable ring scanner is designed to enable users to quickly capture any 1D barcode data in either printed or on-screen (LCD) format.



Ergonomic Design for Mobile Operators
MT500 Wearable ring scanner provides the user freedom of movement to perform barcode scanning tasks comfortably while keeping both hands free. Thanks to the patented dual touch-activated switches ,the Velcro strap doesn't have to be tied too tightly, it prevents poor blood circulation and occupational injury as well as increases operators' satisfaction.



Flexible Operations of Data Collection
MT500 wearable ring scanner is versatile with the advantage of conducting flexible data collection operations of both online wireless mode and offline memory mode including multiple communication interfaces (BT HID/ USB HID/ USB VCP). With a built-in memory of 2MB, the MT500 Wearable wing scanner can store up to 20,000 data scanned in user-friendly file format when it is operated in memory mode.



Preventing Occupational Injury
Weighing only 20.5g, the MT500 wearable scanner is multiple times lighter than the counterparts of other brands. Since wearing a ring of over 20g for a long period of time may cause injury to the finger, MT500 as the most lightweight ring scanner, plus the patented double strap design shown in the above picture, ensures that the operator's finger feels no burden and has no contact with the hard plastic case, preventing occupational injury and discomfort.



The Better User Experience
As classified by LED Safety Standard EN/IEC 62471 (Exempt Group), the light source of the MT500 wearable scanner is completely safe for human eyes even after long hours of operation. With a built-in buzzer and LED, MT500 provides a full variety of Good Read responses such as audible and visual feedback. MT500 wearable ring scanner is also easily configured on the host computer by Marson's free user-friendly software tool, Ez Utility®. MT500 wearable ring scanner is shipped with three spare Velcro straps which are easy to be replaced for individual users to prevent infection. MT500 wearable scanner can be paired with an optional accessory MT612 Charging Cradle.



SPECIFICATIONS

Optic & Performance
Light Source
625nm visible red LED
Sensor
Linear Image Sensor
Scan Rate
650 Scans/Sec
Resolution
4mil/ 0.1mm
Scan Angle
41°
Pitch Angle
±30°
Skew Angle
±40°
Roll Angle
±20°
Print Contrast Ratio
30%
Width of Field
140mm (13Mil Code39)
Memory
2MB (20,000 barcodes)
Typical D.O.F (Environment: 800 lux)
Code39
4 Mil : 35 ~ 83 mm
5 Mil : 32 ~ 106 mm
10 Mil: 28 ~ 207 mm
15 Mil: 41 ~ 305 mm
UPC/EAN
13 Mil: 39 ~ 234 mm
Physical Characteristics
Dimension
W27.6 x L46.2 x H26.8 mm
Weight
20.5g
Color
Black
Material
PC+ABS
Connector
Type-C USB Port
Cable
Type-C(M) to USB A(M) Cable, 1.5M
Trigger
Touch Switches, Function Button
Indicator
LED, Buzzer
Electrical
Operation Voltage
3.7 VDC ± 5%
Working Current
< 110mA
Standby Current
< 25mA
Battery
3.7V, 240mAh, Li-Polymer Battery
Number of Scan (per full charge)
6000 scans
(1 scan/ 5 secs, Bluetooth connected)
Connectivity
Radio
Bluetooth 5.0® (Class 2)
Range
66 ft/ 20m (line of sight)
Interface/Profile
BT HID
BT SPP
USB HID
USB VCP
Memory
User Environment
Operating Temperature
-10 ~ 50˚C
Storage Temperature
-20 ~ 60˚C
Humidity
0% ~ 95%RH (Non-condensing)
Drop Durability
1.5M
Sealing
IP42
Ambient Light
70,000 Lux (Sunlight)
Decode Capability
Symbologies
UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge
EMC/RF
FCC Part15C, TELEC
Safety Approval
IEC62471 (Exempt Group)
Environmental
WEEE, RoHS 2.0
Accessory
Cable
Type-C USB Cable, 1.5M, Black
(P/N: 7040-2820000, QTY: 1)
Silicone Cover
Silicone Cover, Transparent
(P/N: 3087-6541000, QTY: 1)
Velcro Strap
Velcro Strap, Black
(P/N: 30G0-6539001, QTY: 3)
