MTB24 Mobile Computer Scanner

  • Mobile_Computer_Scanner_MTB24_800x600
  • Mobile_Computer_Scanner_Unbreakable_Magnetic_Connector_800x600
  • MTB24_Mobile_Computer_Scanner_Snappy_1D_2D_Data_Capture
  • Mobile_Computer_Scanner_Flexible_Unbreakable_onhand_Kept_in_place_while_charging
  • MTB24_Caplocks_Drop_free_attachment
  • Mobile_Computer_Scanner_MTB24_800x600
  • Mobile_Computer_Scanner_Unbreakable_Magnetic_Connector_800x600
  • MTB24_Mobile_Computer_Scanner_Snappy_1D_2D_Data_Capture
  • Mobile_Computer_Scanner_Flexible_Unbreakable_onhand_Kept_in_place_while_charging
  • MTB24_Caplocks_Drop_free_attachment

Instant Data Terminal

Mobile Computer/Smartphone Scanner is a portable, magnetically connected, miniaturized barcode scanner that transforms a smartphone into a business-class data terminal via USB Type-C port.



Mobile Computer => Smartphone + MTB24 Scanner

  • Middle Range / Magnetic USB-C
  • Outstanding 1D/2D scanning
  • Work with Android smartphone
  • Support on-screen button (ScanKey®)

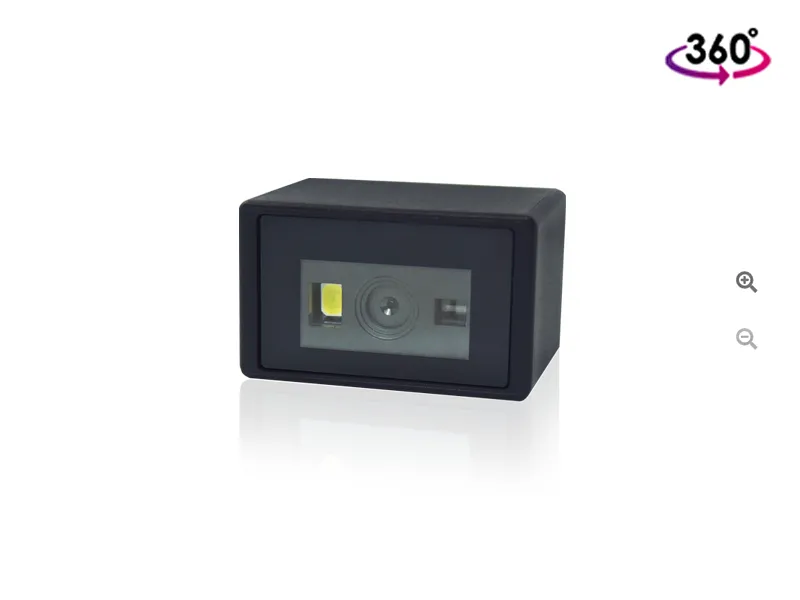

360_View_Icon_20241210 View photo: https://scankit.istaging.com/20241204-MS-010/20241204-MS-010.html



It is ideal for a wide range of applications including logistics, field service, healthcare, mobile POS, access control, and inventory management.

* New product is available for free testing. For detailed conditions, please contact our sales representative.

Application
  • Logistics
    Logistics
  • Field Service
    Field Service
  • Healthcare
    Healthcare
  • Mobile POS
    Mobile POS
  • Access Control
    Access Control
  • Inventory
    Inventory
Share:

FEATURES



Snappy 1D & 2D Data Capture
Mobile Computer/Smartphone Scanner, on an average of 1/10 seconds, scans all 1D barcodes, and major 2D barcodes including PDF417, QR Code, PDF417, MicroPDF417, Data Matrix, Aztec, MaxiCode, Han Xin, and, Code16K. MTB24 mobile computer smartphone Scanner delivers superior scanning and mobility to many applications which benefits enterprises with less downtime as well as increasing productivity.



Unbreakable Magnetic Connector
MTB24 Mobile Computer/Smartphone Scanner is designed with an innovative unbreakable magnetic USB-C connector. This feature ensures a seamless and instant connection to your smartphone or PDA via USB Type-C port, eliminating the risk of connector damage from everyday bumps and drops. MTB24 has also passed a rigorous 1.5-meter drop test, proving its exceptional durability. Despite its seemingly fragile appearance, MTB24 is built to last, providing reliable performance in any environment.



ScanKey® Trigger Button
ScanKey® is an Android® app designed to enable users to trigger the MTB24 Android Scanner with a semi-transparent on-screen button and receive the barcode data scanned without interrupting the operation of user's main application. The semi-transparent button will appear on the screen and continuously follow any app launched.



Mobile-Friendly Scanning
With enhanced optical design and latest decode algorithm, Mobile Computer/Smartphone Scanner MTB24 can scan all 1D and 2D barcodes printed on any surface, either paper-based label with matte or glossy surface, or mobile phone display and LCD screen. As a result users may expand their business into many mobile applications such as eCoupon, eTicket, Digital ID cards and mobile payments.



SPECIFICATIONS

Optic & Performance
Light Source
White LED
Red LED
Sensor
640 x 480
Resolution
5mil/ 0.125mm (1D)
10mil/ 0.25mm (2D)
Scan Angle
Horizontal 37°
Vertical 27.5°
Pitch Angle
±60°
Skew Angle
±60°
Roll Angle
360°
Print Contrast Ratio
40%
Width of Field
141mm (13Mil Code39)
Typical D.O.F (Environment: 800 lux)
5 Mil Code39: 61 ~ 102mm
13 Mil UPC/EAN: 52 ~ 294mm
15 Mil QR Code: 52 ~ 405mm
6.67 Mil PDF417: 54 ~ 133 mm
10 Mil Data Matrix: 44 ~ 103mm
Physical Characteristics
Dimension
W23.1x L15.9 x H14 mm (when plugged into Smartphone)
Weight
6g
Trigger
On-screen Button (ScanKey®)
Color
Black
Material
PC
Connector
USB Type-C
Electrical
Operation Voltage
5.0 VDC ± 5%
Working Current
< 195mA
Standby Current
< 85mA
Connectivity
Interface/Profile
USB HID
Compatibility
Android 7.1 or later version
User Environment
Operating Temperature
-20°C ~ 50°C
Storage Temperature
-40°C ~ 70°C
Humidity
0% ~ 95% RH (Non-condensing)
Drop Durability
1.5M
Ambient Light
100,000 Lux (Sunlight)
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge (requires housing that is designed for ESD protection and stray from electric fields)
EMC/RF
FCC Part 15B Class B, CE EN55024/32
Safety Approval
EN/IEC62471 (Exempt Group)
Environmental
WEEE, RoHS 2.0
Decode Capability
Symbologies
1D Symbologies: UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, IATA Code, GS1-128, MSI Plessey Code, UK Plessey Code, GS1 Databar

2D Symbologies: QR Code, Micro QR Code, PDF417, MicroPDF417, Data Matrix, Aztec, MaxiCode, Han Xin, Code16K
Patent
Taiwan
M626830
Accessory
Cable
Magnetic Type-C USB Cable, 1M, Black
(P/N: 7040-2720000, QTY: 1)
Hand Strap
Short Strap, Black
(P/N: 8009-0085000, QTY: 1)
Silicone Cover
Silicone Cover, Transparent
(P/N: 3087-8841000, QTY: 1)
