MT588 2D Wearable Scanner

  • Wearable_Ring_wireless_Scanner_MT588_Most_Light_weight_Marson_800x600
  • Wireless_Ring_Scanner_MT588_onhand_Marson_800x600
  • MT588_2D_Wearable_Ring_Scanner_Healthcare_Marson_800x600
  • MT588_2D_Wearable_Ring_Scanner_Touch_Activated_Operatio_with_Gloves_On_800x600
  • 2D_Wireless_Ring_Scanner_Preventing_Occupational_Injury_MT588_Marson_800x600
  • MT588_2D_Wearable_Ring_Scanner_charger_straps_Marson_800x600
  • Wearable_Ring_wireless_Scanner_MT588_Most_Light_weight_Marson_800x600
  • Wireless_Ring_Scanner_MT588_onhand_Marson_800x600
  • MT588_2D_Wearable_Ring_Scanner_Healthcare_Marson_800x600
  • MT588_2D_Wearable_Ring_Scanner_Touch_Activated_Operatio_with_Gloves_On_800x600
  • 2D_Wireless_Ring_Scanner_Preventing_Occupational_Injury_MT588_Marson_800x600
  • MT588_2D_Wearable_Ring_Scanner_charger_straps_Marson_800x600

Why Wearable Scanners Redefine Hands-Free Efficiency
This 2D wearable scanner delivers fast, accurate data capture using a high-resolution megapixel sensor and advanced decoding technology. Designed for hands-free operation, it keeps both hands available for tasks while ensuring reliable reading of 1D and 2D barcodes in fast-moving workflows. Its lightweight design and ergonomic fit increase comfort for long shifts in logistics, inventory, healthcare, and field service environments.

How 2D Scanning Enhances Mobile Productivity
With an extended reading distance of up to 640mm for commodity barcodes, the scanner captures high-density, low-contrast, or damaged codes with ease, including those displayed on mobile screens. Bluetooth 5.0 and USB connectivity enable seamless integration with mobile devices and host systems. Dual touch-activated triggers offer flexible, fatigue-free operation to improve efficiency and reduce repetitive strain.



  • Megapixel high-resolution scanning
  • Reading distance up to 640mm
  • Ultra-lightweight for all-day wear
  • Dual touch-activated trigger design
  • Medical-grade anti-microbial housing
  • Bluetooth 5.0 and USB connectivity
  • Supports 1D, 2D, postal codes, and OCR



 360_View_Icon_20241210 View photo: https://scankit.istaging.com/TT-20221201-003/TT-20221201-003.html

Application
  • Logistics
    Logistics
  • Field Service
    Field Service
  • Healthcare
    Healthcare
  • Inventory
    Inventory
Share:

FEATURES

Megapixel Long-Range Scanning
Equipped with a high-resolution megapixel sensor, this wearable scanner delivers fast and accurate reading of both 1D and 2D barcodes. It supports an extended reading distance of up to 640mm for commodity codes, allowing users to scan items without precise alignment or close contact. This capability improves speed and accuracy in inventory management, patient identification, and field operations where efficiency is critical.

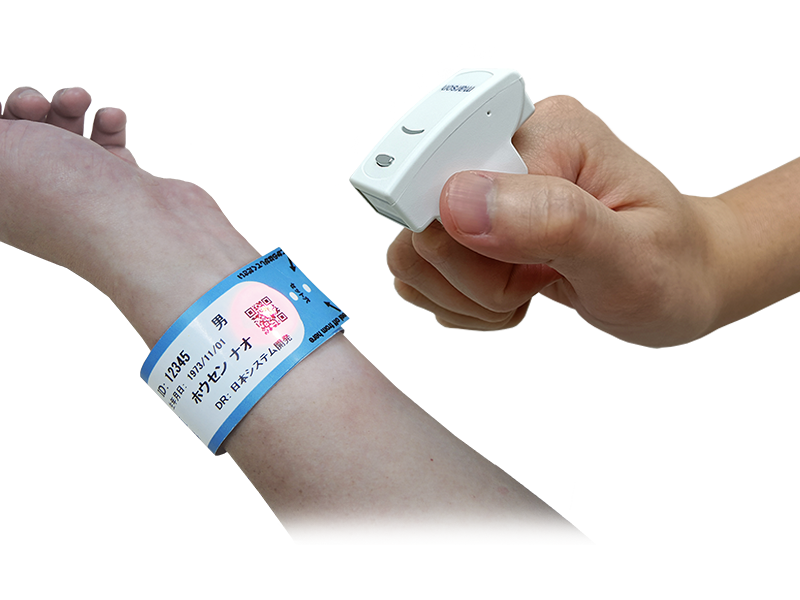

Anti-Microbial Scanner for Healthcare
Built with anti-microbial technology, MT588 wearable ring scanner can endure repeated alcohol or bleach cleaning and keep preventing the reproduction and spread of bacteria among nurses in the hospital. The disinfectant-ready MT588 2D wearable ring scanner enables caregivers to quickly identify patients and dispense medications, keep up-to-date records, and manage medical supplies inventory in an error-free manner.
Medical Certifications: ISO 22196 (JIS Z 2801); ISO 11737-1, ISO 11737-2

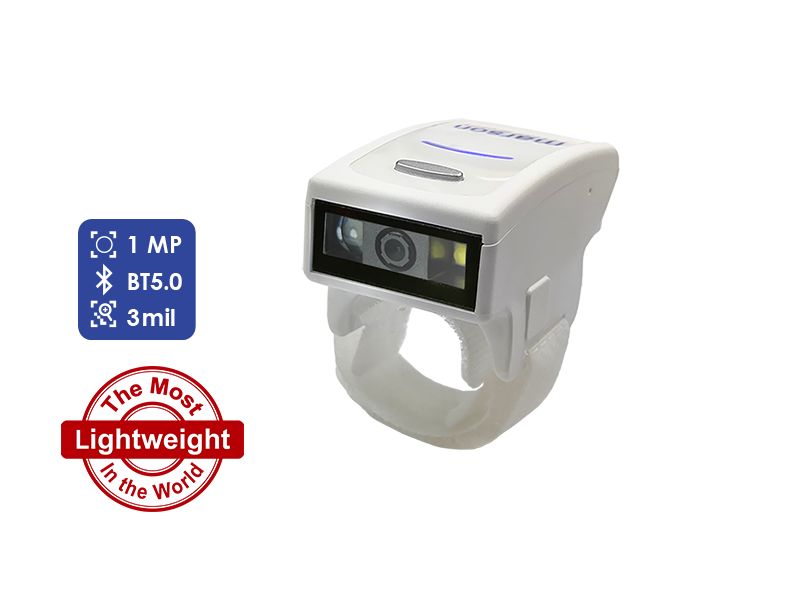

Ultra-Light Ergonomic Design
Weighing only a fraction of traditional handheld scanners, this wearable device is designed for continuous, all-day use. Its ergonomic structure fits comfortably on the finger while keeping both hands free for handling packages, tools, or equipment. The lightweight construction reduces finger strain and user fatigue, helping prevent repetitive-stress injuries in long shifts and high-volume working environments.

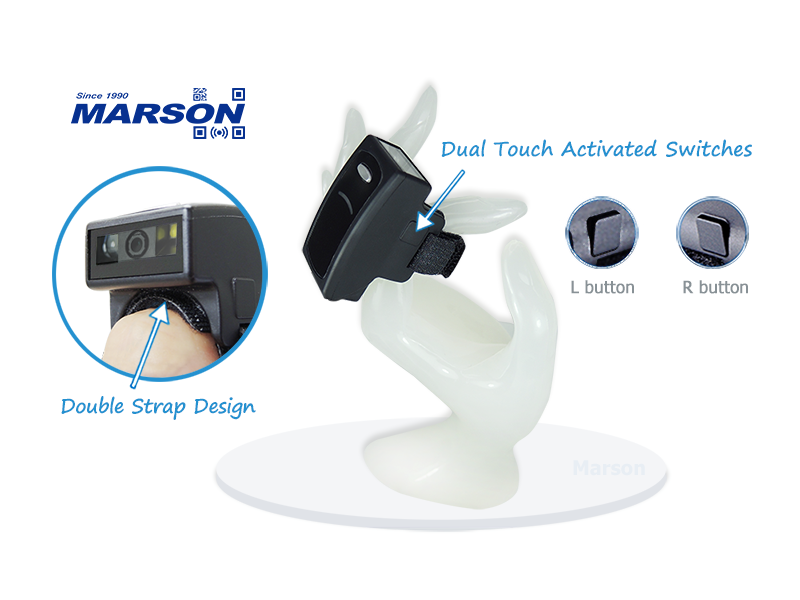

Dual Touch-Activated Trigger
Built with patented dual touch-activated switches, the wearable scanner offers flexible and intuitive control without requiring tight fastening. This thoughtful design improves comfort and safety by maintaining proper blood circulation while still ensuring a secure fit. The touch-based trigger allows workers to scan more naturally and efficiently, regardless of hand size or glove use

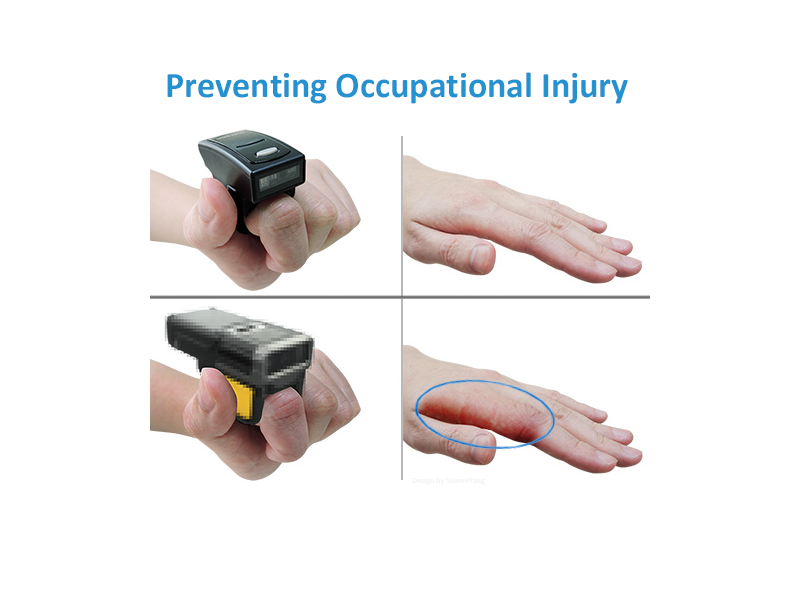

Preventing Occupational Injury
The wearable ring scanner is significantly lighter than competing products from other brands. Wearing a ring that weighs over 20.5 g for an extended period may cause finger strain or injury. As the most lightweight ring scanner on the market, combined with a patented double-strap design, it ensures that the operator’s finger experiences no burden and does not come into contact with the hard plastic casing, helping to prevent occupational injury and discomfort.

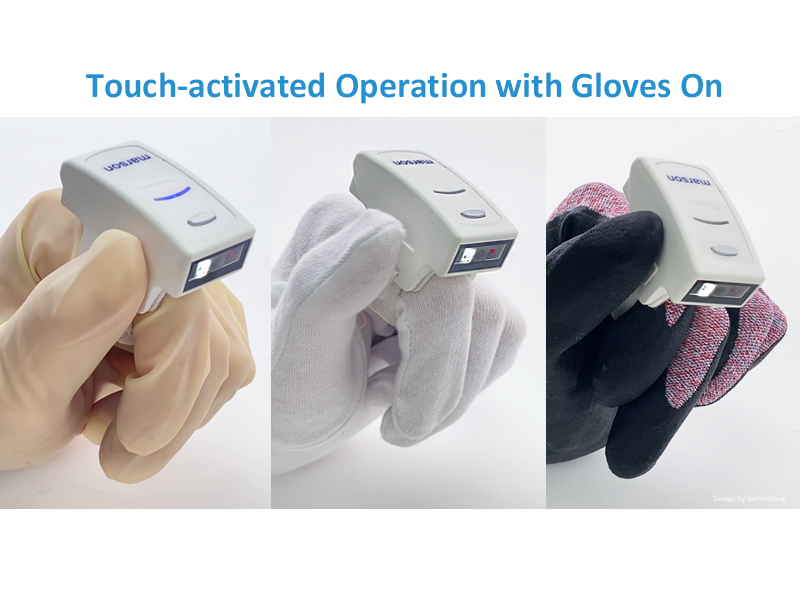

Ambidextrous and Glove-Friendly

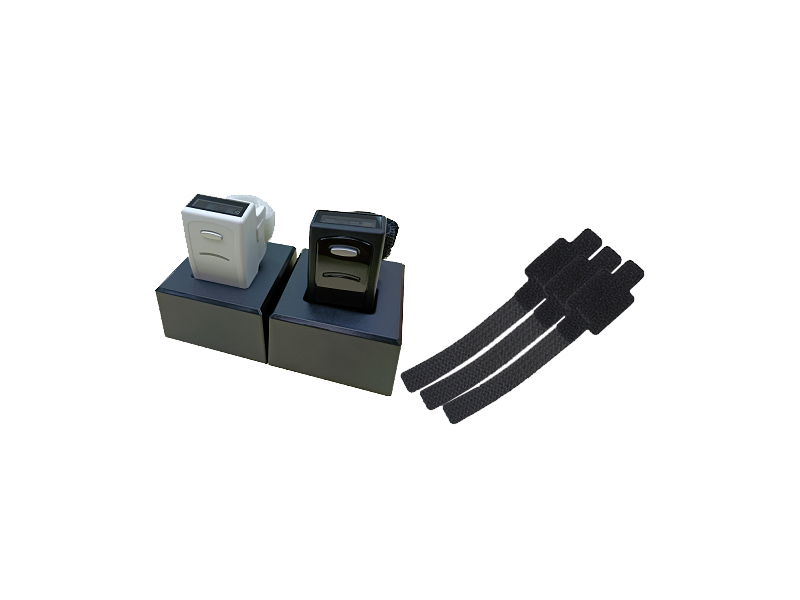

Designed for use on either the right or left hand, the wearable scanner operates smoothly with or without gloves. A built-in 2MB internal memory supports batch data storage when working in offline or memory mode, adding flexibility for mobile workers. The ring scanner is shipped with three spare Velcro straps which are easy to be replaced for the individual user to prevent infection.



Wireless & USB Connectivity
Supporting Bluetooth 5.0 and USB interface options, the wearable scanner integrates easily with smartphones, tablets, PCs, and industrial systems. Its stable wireless connection delivers up to 20 meters of range in line-of-sight conditions, while USB ensures seamless plug-and-play communication. These connectivity options streamline data transfer and reduce setup time across different workstations. It can also be paired with an optional accessory MT612 Charging Cradle.

SPECIFICATIONS

Optic & Performance
Light Source
White LED
Visible red LED
Sensor
1280 x 800
Resolution
3mil
Scan Angle
Horizontal 39°
Vertical 26°
Pitch Angle
±60°
Skew Angle
±60°
Roll Angle
360°
Print Contrast Ratio
10%
Width of Field
200mm (13Mil Code39)
Memory
2MB (20,000 barcodes)
Typical D.O.F (Environment: 800 lux)
3 Mil Code39: 100 ~ 190mm
5 Mil Code39: 60 ~ 310mm
13 Mil UPC/EAN: 60 ~ 640mm
15 Mil QR Code: 40 ~ 320mm
10 Mil Data Matrix: 60 ~ 270mm
6.67 Mil PDF417: 70 ~ 230mm
Physical Characteristics
Dimension
W27.6 x L46.2 x H26.8 mm
Weight
20.5g
Color
MT588: Black
MT588M: White
Material
PC+ABS
Connector
Type-C USB Port
Cable
Type-C(M) to USB A(M) Cable, 1.5M
Trigger
Scan Button, Function Button
Indicator
LED, Buzzer
Electrical
Operation Voltage
3.7VDC ± 5%
Working Current
< 350mA
Standby Current
< 35mA
Battery
3.7V, 240mAh, Li-Polymer Battery
Number of Scan (per full charge)
4000 scans
(1 scan/ 2 secs, Bluetooth connected)
Connectivity
Radio
Bluetooth 5.0 (Class 2)
Range
66 ft/ 20m (line of sight)
Interface/Profile
BT HID
BT SPP
USB HID
USB VCP
Memory
User Environment
Operating Temperature
-10 ~ 50°C
Storage Temperature
-20 ~ 60°C
Humidity
0% ~ 95%RH (Non-condensing)
Drop Durability
1.5M
Sealing
IP42
Ambient Light
100,000 Lux (Sunlight)
Decode Capability
Symbologies
1D Symbologies:
Code128, Code39, Code93, EAN-13, EAN-8, UPC-E, UPC-A, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar, Codabar, MSI Plessey, Code 11, Standard 2 of 5, ChinaPost 2 of 5, GS1 Composite

2D Symbologies:
PDF417, MicroPDF417, Data Matrix, MaxiCode, QR Code, Micro QR Code, Aztec, Han Xin, GridMatrix

Postal Codes:
Japanese Post, Australian Post, Korean35, MailMark, Netherlands KIX, UK Postal, US Postnet, US Planet, USPS_4CB

OCR:
OCR-B (Passport MRZ)
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge
EMC/RF
FCC Part15C, TELEC
Safety Approval
IEC62471 (RG2)
Environmental
RoHS 2.0
