Pen Scanner of Lasting Value
Reader MT52501 is a pen-style 1D barcode scanner that has been supplied to the market for over 30 years. The economical price point and ergonomic form factor offer lasting value. Due to the unique way of scanning through sweeping, MT52501 is capable of smoothly scanning barcodes which are too wide to read by traditional gun-style barcode scanners. It is ideal for applications including logistics, manufacturing and asset management.



  • Plastic Housing / RS232 / USB
  • Read wide barcodes
  • Supports all major 1D barcodes
  • Ergonomic and compact design
Application
  • Field Service
    Field Service
  • Manufacturing
    Manufacturing
  • Asset Management
    Asset Management
Share:

FEATURES

Ergonomic Design and Comfortable Grip
Built with ergonomic design, small profile, and compact size, MT52501 is comfortable to hold and easy to sweep. The rubber surface on both sides of MT52501 is not only comfortable to the grip, but also enables MT52501 to withstand 1.5 meter drops to concrete.


Easy and Flexible Operation
MT52501 is the best barcode scanning solution when an application requires for scanning multiple barcodes on the same sheet of paper because it is much easier to run a pen scanner across the correct barcodes than other alternatives. MT52501 also supports flexible sweeping speed with bi-direction therefore either at lower speed or higher speed, forward or backward, barcodes can still be captured easily and successfully.


Superior Optics with Great Reliability
MT52501 has a superior optics with great reliability. The pen tip of MT52501 is made of sapphire-class crystal which, due to its remarkable hardness and high transparency, can support countless sweeping against rugged surface for prolonged operation and get high first-read rates.


Easy Installation and Configuration

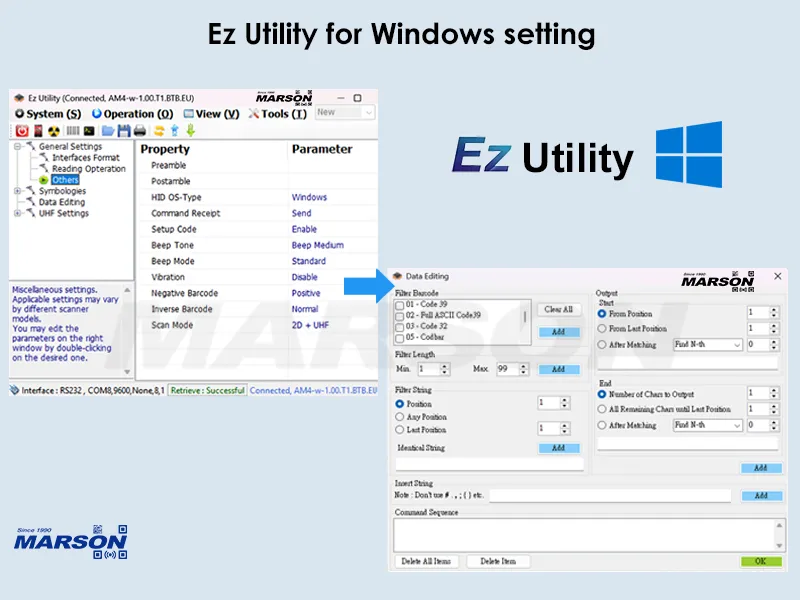

As a plug-and-play USB device, MT52501 emulates an USB keyboard and requires no drivers for installation. Simply plug MT52501 into the USB port of host computer and start scanning. MT52501 is also easily configured on the host computer by Marson's free user-friendly software tool, Ez Utility®.

SPECIFICATIONS

Optic & Performance
Light Source
650nm visible red LED
Sensor
Photo Diode
Resolution
5Mil/ 0.127mm
Print Contrast Ratio
45%
Typical D.O.F (Environment: 800 lux)
Code39
5 Mil : 0mm (Contact)
UPC/EAN
13 Mil : 0mm (Contact)
Physical Characteristics
Dimension
L150 x W29.6 x H22 mm
Weight
100g (USB)
110g (RS232)
Color
Blue
Material
ABS
Connector
USB Type A
Cable
2.1M (Fixed USB cable)
Indicator
Buzzer
Electrical
Operation Voltage
5 VDC ± 5%
Working Current
< 110mA (USB)
< 120mA (RS232)
Standby Current
< 110mA (USB)
< 120mA (RS232)
Connectivity
Interface/Profile
RS232
USB HID
USB VCP
User Environment
Operating Temperature
0 ~ 50˚C
Storage Temperature
-20 ~ 60˚C
Humidity
0% ~ 95%RH (Non-condensing)
Drop Durability
1.5M
Ambient Light
5,000 Lux
Decode Capability
Symbologies
UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge
EMC/RF
FCC Part 15B Class B, CE EN55032/35
Environmental
WEEE, RoHS 2.0
