MT412(i) Slot Reader

  • MT412_Slot_Reader_1000x600
  • MT412_Slot_Reader_Scan_Card_1000x600
  • MT412_Slot_Reader_Easy_Installation_Configuration
  • MT412_Solt_Reader_Higher_Security
  • MT412_Slot_Reader_1000x600
  • MT412_Slot_Reader_Scan_Card_1000x600
  • MT412_Slot_Reader_Easy_Installation_Configuration
  • MT412_Solt_Reader_Higher_Security

Best Partner for Access Control Applications
Reader MT412 is a durable and reliable barcode slot reader that can be easily integrated into the host system via USB or RS232 interface. MT412 is the best partner for access control applications such as ID check-in/check-out and time & attendance system (TNA). Both the red LED version (MT412) and the infrared LED version (MT412i) are available for reading ordinary barcodes and invisible barcodes.



。Red LED / Infrared LED / RS232 / USB
。Decodes invisible barcodes
。Reads all major 1D barcodes
。Support bi-directional swiping

Application
  • Access Control
    Access Control
Share:

FEATURES

Easy and Flexible Operation
Built with a large reading slot, MT412 can accept cards of various sizes. MT412 also supports flexible swiping speed from 47 to 470 mm per second with bi-direction therefore either at lower speed or higher speed, forward or backward, barcodes can still be captured easily and successfully.


Reliable and Affordable Solution
Housed in a rugged and reliable enclosure, MT412 can withstand 1.6 meter drops to concrete and is easy to wipe down and clean as well. Built with superior optics, MT412 can read all major 1D barcodes in the market and have the economical price point that make it a reliable and affordable solution of barcode slot reader.


Higher Security
The infrared LED version (MT412i) is available for reading invisible barcodes which is printed under an opaque security film. This feature provides higher security for access control applications such as ID check-in/check-out and time & attendance system (TNA).


Easy Installation and Configuration

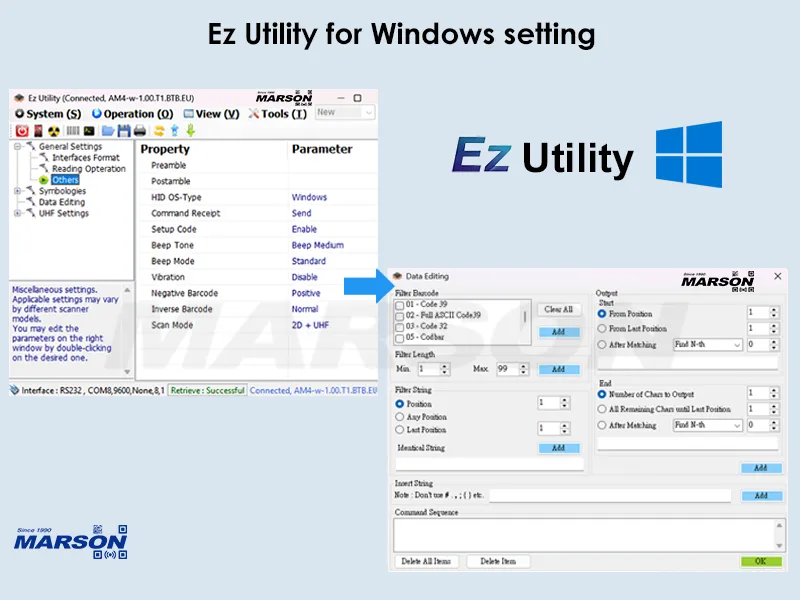

As a plug-and-play USB device, MT412 emulates an USB keyboard and requires no drivers for installation. Simply plug MT412 into the USB port of the host computer and start swiping. MT412 is also easily configured on the host computer by Marson's free user-friendly software tool, Ez Utility®.

SPECIFICATIONS

Optic & Performance
Light Source
660nm visible red LED (MT412)
850nm infrared LED (MT412i)
Sensor
Photo Diode
Scan Rate
47 to 470mm / sec
Resolution
5Mil/ 0.127mm
Print Contrast Ratio
60%
Typical D.O.F (Environment: 800 lux)
Code39
5 Mil: 0mm (Contact)
6 Mil: 0mm (Contact)
UPC/EAN
13 Mil: 0mm (Contact)
Physical Characteristics
Dimension
L124 x W61 x H33 mm
Weight
190g
Color
Black
Material
ABS
Connector
USB Type A
Cable
2.1M (Fixed cable)
Indicator
Buzzer, LED
Electrical
Operation Voltage
5 VDC ± 5%
Working Current
< 120mA (MT412)
< 110mA (MT412i)
Standby Current
< 120mA (MT412)
< 110mA (MT412i)
Connectivity
Interface/Profile
TTL
RS232
USB HID
USB VCP
User Environment
Operating Temperature
0 ~ 50˚C
Storage Temperature
-20 ~ 60˚C
Humidity
0% ~ 95%RH (Non-condensing)
Drop Durability
1.6M
Decode Capability
Symbologies
UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge
EMC/RF
FCC Part 15B Class B, CE EN55022/24/32
Environmental
WEEE, RoHS 2.0
