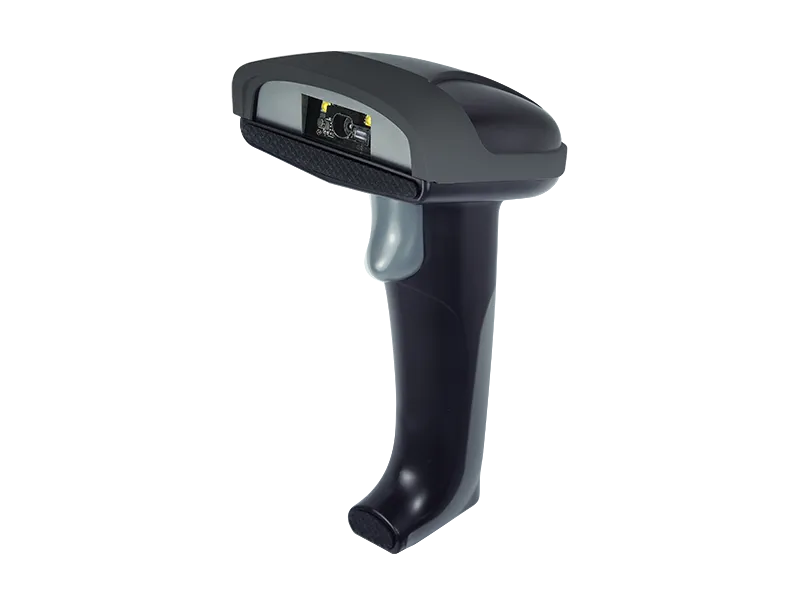

MT8360DPH DPM Industrial Scanner
 applications_Marson_800x600__26G01uDCuy.webp)
 applications_Marson_800x600__26G01uDCuy.webp)
Why Dedicated DPM Scanners Matter in Manufacturing
Direct Part Marking (DPM) codes are often engraved, etched, or permanently marked on metal and industrial components, making them difficult for conventional barcode scanners to decode. A dedicated DPM handheld scanner enables manufacturers to achieve fast, reliable traceability while maintaining production efficiency and quality control.
How DPM Handheld Scanner Excels in Manufacturing Applications
The DPM Handheld Scanner combines a high-resolution 1.3-megapixel global shutter sensor with advanced DPM decoding algorithms to accurately capture challenging direct part marks. Designed to read low-contrast, damaged, and incomplete codes, it also supports real-time image acquisition through Windows-based software, making it an ideal solution for manufacturing, quality inspection, and traceability applications.
- Purpose-built DPM Industrial solution
- Reads damaged and low-contrast codes
- 1.3MP global shutter imaging
- Real-time image optimization software
- Supports laser, dot peen, inkjet, and chemical etching
- Reliable decoding in demanding environments
- Designed for manufacturing traceability
-
Manufacturing
FEATURES
Purpose-Built for Direct Part Marking
Unlike conventional barcode scanners, MT8360DPH is specifically engineered for Direct Part Marking (DPM) applications. It reliably decodes permanent markings created by laser engraving, laser etching, dot peen, chemical etching, and inkjet printing, making it an ideal solution for manufacturing and product traceability.
Advanced DPM Decoding Performance
Powered by a high-resolution 1.3-megapixel global shutter sensor and robust decoding algorithms, MT8360DPH accurately reads incomplete, dirty, scratched, and low-contrast DPM codes. Its exceptional image quality ensures reliable barcode capture even under challenging industrial conditions.
Real-Time Image Optimization
The scanner supports real-time image acquisition through a Windows-based software application, allowing users to monitor, optimize, and fine-tune image settings for maximum decoding performance. This simplifies deployment and improves inspection efficiency across production environments.
Reliable Industrial Operation
Featuring USB HID and USB VCP interfaces, MT8360DPH integrates easily into existing manufacturing systems. Its stable performance, broad barcode compatibility, and industrial operating temperature range make it well suited for demanding production and quality control applications.
SPECIFICATIONS
Visible red LED
Vertical 34°
5 Mil Code39: 13 ~ 129mm
5 Mil Data Matrix: 27 ~ 98mm
13 Mil UPC/EAN: 147 ~ 240mm
UPC-A, UPC-E, EAN-8, EAN-13, Code 39, Code 93, Code 128, Codabar, ITF14, ITF25
2D Symbologies:
QR Code, Micro QR, Data Matrix, PDF417, Aztec, Han Xin
