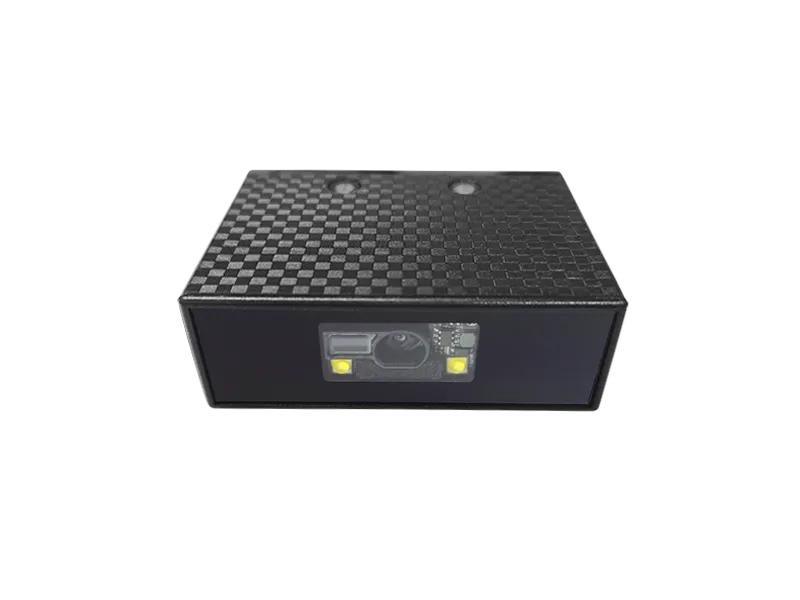

MT6283DPH DPM Fixed Mount Scanner
Why Fixed Mount DPM Scanners Improve Automated Traceability
As manufacturing processes become increasingly automated, accurate identification of permanently marked components is critical for quality control and product traceability. A dedicated fixed mount DPM scanner enables production equipment to reliably decode challenging direct part marks without slowing production, helping manufacturers improve efficiency while reducing manual inspection.
How Advanced DPM Technology Ensures Reliable Barcode Reading
MT6283DPH combines a high-resolution 1.3-megapixel global shutter sensor with advanced DPM decoding technology to capture difficult marks created by laser engraving, dot peen, chemical etching, and inkjet printing. Designed for seamless integration into industrial equipment, it delivers stable, high-speed performance with USB and RS232 connectivity, while its IP55-rated housing provides dependable operation in demanding factory environments.
- Purpose-built DPM Industrial solution
- Reads damaged and low-contrast codes
- 1.3MP global shutter imaging

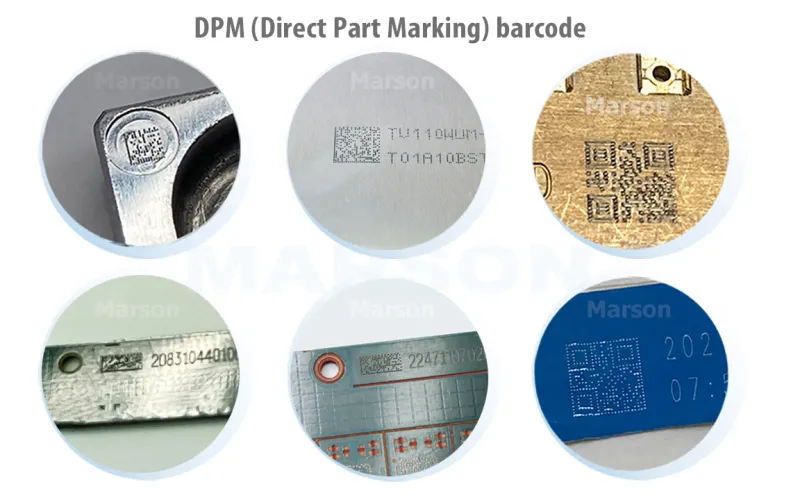

- Supports laser, dot peen, inkjet, and chemical etching
- USB and RS232 connectivity options
- IP55 dust and water resistance
- Designed for manufacturing traceability
-
Manufacturing
FEATURES
Reliable Decoding of Challenging DPM Codes
MT6283DPH is optimized for reading Direct Part Marking (DPM) industrial codes commonly found on metal parts and industrial components. Advanced image processing algorithms accurately decode damaged, scratched, dirty, or low-contrast marks, ensuring consistent identification even when code quality is compromised.
High-Resolution Imaging for Accurate Inspection
Equipped with a 1.3-megapixel global shutter sensor, MT6283DPH captures sharp, distortion-free images that improve decoding accuracy for both DPM and conventional 1D/2D barcodes. Its high-quality imaging performance helps maintain reliable inspection throughout demanding manufacturing processes.

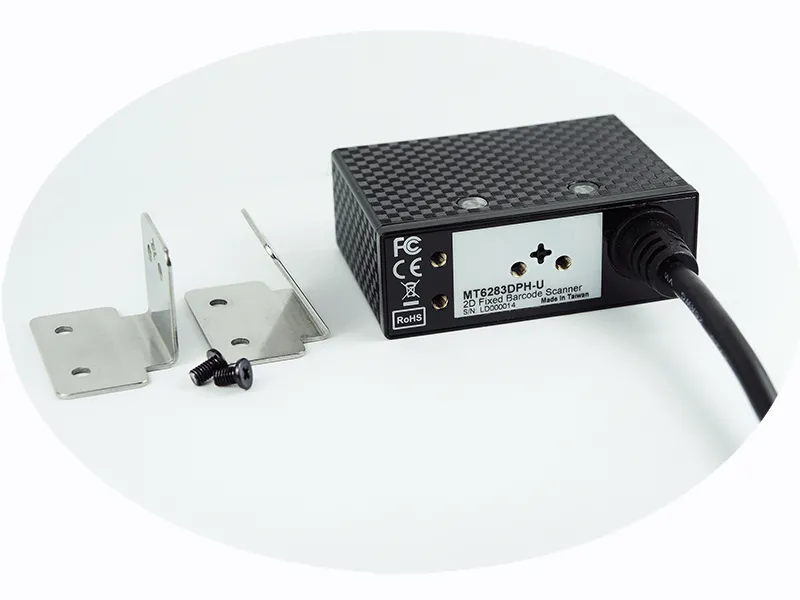

Designed for Machine Integration
The compact fixed mount design integrates easily into automated equipment, inspection stations, and production lines. Supporting both USB and RS232 communication, MT6283DPH connects seamlessly with a wide variety of industrial control systems while enabling continuous, hands-free barcode reading.

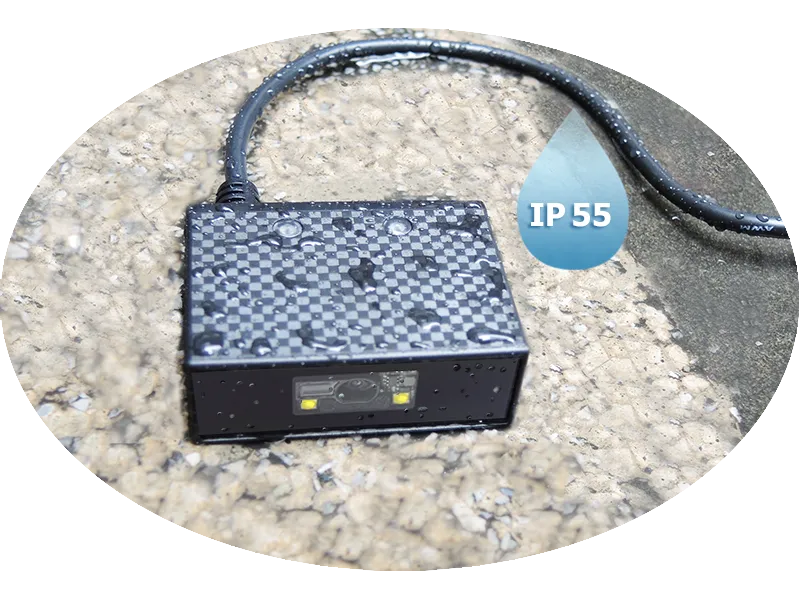

Rugged Performance for Industrial Environments
Built with an IP55-rated enclosure, MT6283DPH withstands dust and water exposure commonly encountered in manufacturing environments. Combined with dependable decoding performance and broad barcode compatibility, it provides a durable solution for long-term production and traceability applications.
SPECIFICATIONS
Visible red LED
Vertical 34°
5 Mil Code39: 30 ~ 136mm
5 Mil Data Matrix: 40 ~ 105mm
MT6283DPH-R: 84g
MT6283DPH-R: D-sub 9
Software Trigger
UPC-A, UPC-E, EAN-8, EAN-13, Code 39, Code 93, Code 128, Codabar, ITF14, ITF25
2D Symbologies:
QR Code, Micro QR, Data Matrix, PDF417, Aztec, Han Xin
