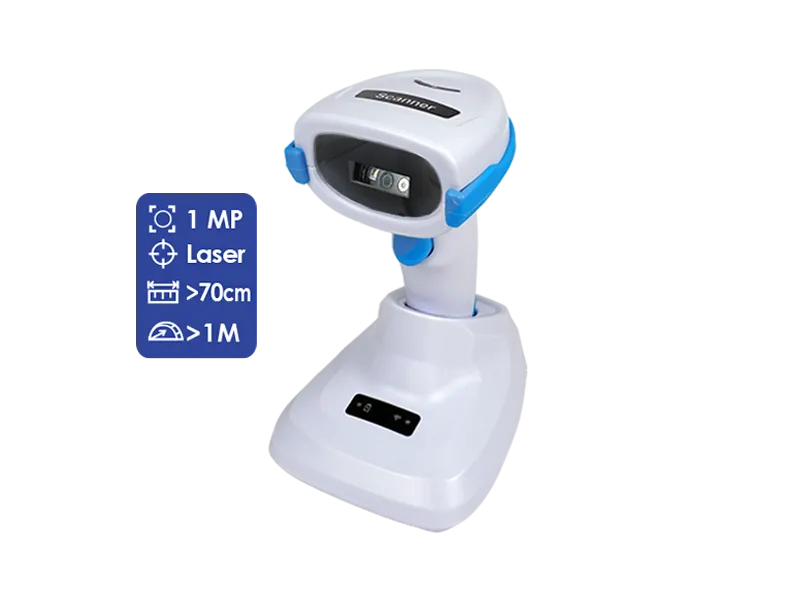

MT8158LB_2D_Wireless_Scanner_Charge_L_Marson

MT8158LB_2D_Wireless_Scanner_F_Charger_Marson_800x600

MT8158LB_2D_Wireless_Scanner_F_Marson_800x600

MT8158LB_2D_Wireless_Scanner_L_Marson_800x600

MT8159B_2D Wireless Scanner_Rside_Marson_800x600

MT8158LB_2D_Wireless_Scanner_Laser_aiming_Marson_800x600

MT8158LB_2D_Wireless_Handheld_Scanner_Library_Marson_800x600

MT8158LB_2D_Wireless_Scanner_Manufacturing_Marson_800x600

MT8158LB_2D_Wireless_Handheld_Barcode_Scanner_Inventory_Marson

Ez Utility_Windows_setting_Marson_800x600_20260716

Inicio Introducción del producto Escáneres de mano MT8158LB 2D Escáner de mano

Why Wireless Scanners Matter in Modern Operations
Retail, logistics, and manufacturing environments rely on fast, accurate, and mobile data capture to avoid workflow bottlenecks. As barcode density increases and mobility becomes essential, businesses need a scanner that performs reliably from various distances, angles, and working conditions while supporting long shifts without interruption. The wireless scanner is engineered to meet these demands with speed, precision, and dependable wireless connectivity.

How High-Performance Wireless Scanners Enhance User Productivity
The wireless scanner combines a high-resolution megapixel sensor with a global shutter design for superior motion capture and precision crosshair laser aiming to deliver pinpoint accuracy and rapid decoding - even on dense, poorly printed, or on-screen barcodes. Bluetooth 5.0 ensures stable wireless transmission up to 50 meters, while a 2000mAh battery provides over 16,000 scans per charge. With cradle-based USB fallback, offline memory mode, and flexible interfaces, the wireless scanner adapts seamlessly to any workflow.

Megapixel high-resolution scanning
Precision crosshair laser aiming
Global shutter with up to 1M motion tolerance
Reading distance up to 720mm
Bluetooth 5.0 with 50M wireless range
Cradle Mode + USB HID/COM connectivity
2 MB memory for offline storage
16,000 scans per battery charge
Supports 1D, 2D, postal codes, and OCR
Easy configuration with Ez Utility ^®

360_View_Icon_20241210 View Black photo: MT8158LB 2D Wireless Handheld Scanner

* New product available for free testing. For detailed conditions, please contact our sales representative.

Compartir：

Agregar consulta Vídeo Agregar comparación

Descripción del producto

Especificaciones del producto

Descargar archivo

RECOMMENDED

Descripción del producto

High-Performance Scanning for Demanding Workflows
The megapixel sensor and precision crosshair laser enable fast, accurate decoding of 1D and 2D barcodes—even small, dense, or low-contrast symbols. With an extended working distance of up to 720mm, users can capture codes on shelves, pallets, or screens with ease.

Long-Range Wireless Mobility
Bluetooth 5.0 provides a stable, fast wireless link of up to 50 meters line-of-sight. Operators enjoy cable-free flexibility for cart-based, handheld, and warehouse applications, ensuring continuous productivity across large work areas.

Advanced Motion Capture with Global Shutter Technology
he global shutter sensor delivers high motion tolerance of up to 1M, ensuring accurate decoding even when barcodes or operators are in motion. By eliminating motion blur and distortion, it enables reliable performance in fast-moving and dynamic scanning environments where speed and precision are critical.

Flexible Online & Offline Data Capture
Switch seamlessly between Bluetooth HID, SPP, BLE, Cradle Mode, or offline Memory Mode. The built-in 2 MB memory stores up to 20,000 barcodes for batch uploading, supporting workflows where wireless transmission is unavailable.

All-Day Operation With Smart Charging Cradle
A robust 2000mAh battery delivers over 16,000 scans per charge. When wireless is not available, the charging cradle instantly provides USB HID/COM connectivity, ensuring uninterrupted operation and simplified device setup.

Especificaciones del producto

Óptica y Rendimiento

Fuente de Luz

White LED
Visible red Laser

Sensor

1 Megapixel

Resolución

3mil

Ángulo de Escaneo

Horizontal 39°
Vertical 26°

Ángulo de Inclinación

±60°

Ángulo de Sesgo

±60°

Ángulo de Rodadura

360°

impresión

10%

Ancho de Campo

200mm (13Mil Code39)

Memoria

2MB (20,000 barcodes)

D.O.F típico (Entorno: 800 lux)

3 Mil Code39: 100 ~ 180mm
5 Mil Code39: 41 ~ 333mm
13 Mil UPC/EAN: 39 ~ 720mm
15 Mil QR Code: 16 ~ 421mm
10 Mil Data Matrix: 64 ~ 282mm
6.67 Mil PDF417: 80 ~ 281mm

Características físicas

Dimensión

L167 x W70 x H86 mm (Scanner)
L123 x W94 x H72 mm (Cradle)

Peso

146g (Scanner)
180g (Cradle)

Color

Black

Material

ABS

Conector

RJ45

Cable

RJ45 to USB A(M) Cable, 2.1M

Disparador

Scan Button

Indicador

LED, Buzzer, Vibrator

Eléctrico

Tensión de operación eléctrica

3.7 VDC ± 5%

Corriente de trabajo eléctrica

< 300mA

Corriente eléctrica en espera

< 60mA

Número de escaneos (por carga completa)

> 16,000 scans
(1 scan/ 5 secs, Bluetooth connected)

Electrical

Battery

3.7V, 2000mAh, Lithium Battery

Conectividad

Radio

Bluetooth 5.0 (Dual Mode)

Rango

164 ft/ 50M (line of sight)

Interfaz/Perfil

Scanner: BT HID / BT SPP / BT BLE / Cradle Mode / Memory Mode
Cradle: USB HID / USB COM

Entorno del usuario

Temperatura de funcionamiento

-10 ~ 50°C

Temperatura de almacenamiento

-20 ~ 60°C

Humedad

0% ~ 95%RH (Non-condensing)

Durabilidad de caída

1.8M

Luz Ambiental

100,000 Lux (Sunlight)

Decodificar Capacidad

Simbolismos

1D Symbologies:
Code128, Code39, Code93, EAN-13, EAN-8, UPC-E, UPC-A, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar, Codabar, MSI Plessey, Code 11, Standard 2 of 5, ChinaPost 2 of 5, GS1 Composite

2D Symbologies:
PDF417, MicroPDF417, Data Matrix, MaxiCode, QR Code, Micro QR Code, Aztec, Han Xin, GridMatrix

Postal Codes:
Japanese Post, Australian Post, Korean35, MailMark, Netherlands KIX, UK Postal, US Postnet, US Planet, USPS_4CB

OCR:
OCR-B (Passport MRZ)

Regulatorio

ESD

Functional after 4KV contact, 8KV air discharge

EMC/RF

FCC Part15C, TELEC

Aprobación de Seguridad

IEC60825-1 (Class 1)

Ambiental

RoHS 2.0

Accessory

Cable

RJ45(M) to USB A(M) Cable, 1.8M, Gray
(P/N: 7042-0320010, QTY: 1)
