UHF Barcode Reader - MT859UHF

  • UHF_Barcode_Reader_MT859UHF_Marson_800x600_20251212
  • UHF_2D_Wireless_Scanner_MT859UHF_Hospital_Solution_Marson_20251111
  • MT859UHF_UHF_2D_Wireless_Scanner_Retail_Marson_800x600
  • MT859UHF_UHF_2D_Wireless_Scanner_Inventory_Marson
  • MT859UHF_UHF_2D_Wireless_Scanner_Warehouse_Marson_800x600
  • MT859UHF_UHF_2D_Wireless_Scanner_Asset_Tracking_Marson_800x600
  • MT859UHF_UHF_2D_Wireless_Scanner_IP55_Marson_800x600
  • UHF_Barcode_Reader_MT859UHF_Marson_800x600_20251212
  • UHF_2D_Wireless_Scanner_MT859UHF_Hospital_Solution_Marson_20251111
  • MT859UHF_UHF_2D_Wireless_Scanner_Retail_Marson_800x600
  • MT859UHF_UHF_2D_Wireless_Scanner_Inventory_Marson
  • MT859UHF_UHF_2D_Wireless_Scanner_Warehouse_Marson_800x600
  • MT859UHF_UHF_2D_Wireless_Scanner_Asset_Tracking_Marson_800x600
  • MT859UHF_UHF_2D_Wireless_Scanner_IP55_Marson_800x600

Why UHF 2D Wireless Reader Compact Choice for Healthcare & Logistics Mobility

MT859UHF is a pocket-sized UHF 2D wireless scanner built for mobile workflows in healthcare, retail, logistics, and manufacturing. Its powerful dual-mode scanning and industrial durability deliver strong UHF RFID performance and fast barcode capture in a truly compact form.



How UHF 2D Wireless Reader Enhances Your Application Performance

By combining robust reading capability with Bluetooth and USB connectivity, MT859UHF supports flexible deployment from handheld mobility to workstation use while its IP55 protection ensures dependable operation in challenging environments.



  • Dual-mode UHF and 2D scanning
  • Global UHF support: US, EU, JP
  • IP55-rated industrial-grade protection
  • Bluetooth and USB connectivity



* New product available for free testing. For detailed conditions, please contact our sales representative.

Application
  • Retail
    Retail
  • Logistics
    Logistics
  • Healthcare
    Healthcare
  • Manufacturing
    Manufacturing
  • Asset Management
    Asset Management
Share:

FEATURES

Seamless Wireless UHF/2D Integration
With Bluetooth® 5.0 and USB support, this scanner eliminates tethered limitations. Easily switch between UHF and 2D scanning to suit diverse workflows, from stock replenishment to shipment verification. All in one device—no compromise in efficiency.



Exceptional Dual-Mode Performance

Equipped with a circularly polarized UHF antenna and advanced sensor, the device reads up to 110 cm and captures high-resolution barcodes at challenging angles. Multiple reading modes ensure swift, accurate data capture in any direction.



Mobile Productivity Reimagined
Weighing just 87g and powered by a 1000mAh Li-Polymer battery, MT859UHF UHF 2D barcode pocket wireless scanner is built for field teams on the move. Scan buttons, memory mode, and long-range Bluetooth offer freedom to work without delays — wherever the job takes you.



Built Tough for Harsh Environments
With IP55 sealing, 1.5-meter drop resistance, and wide temperature tolerance, MT859UHF UHF 2D barcode pocket wireless scanner, designed to withstand dust, moisture, and accidental drops without losing performance, thrives in busy warehouses, loading docks, and production floors.



Intuitive Operation, Instant Feedback

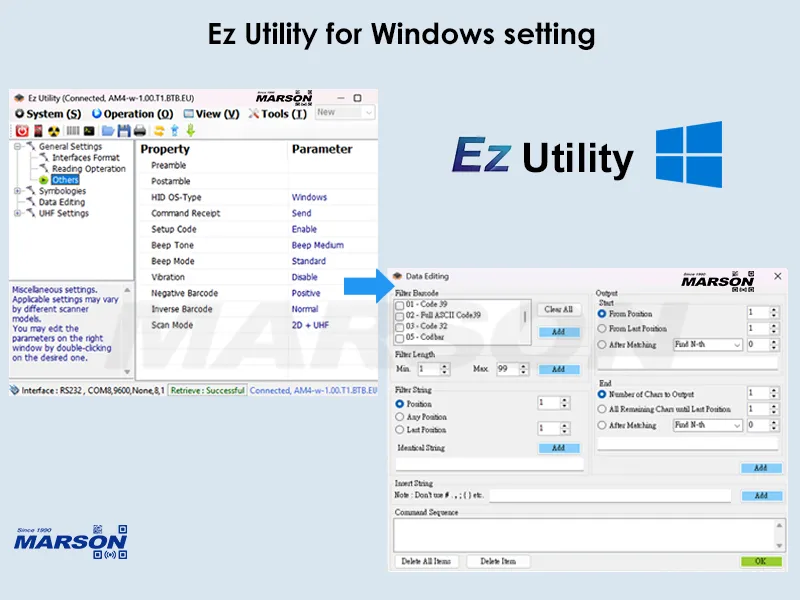

A user-friendly Ez Utility® simplifies configuration, while LED, buzzer, and vibration indicators confirm each scan instantly. Whether used in silent zones or noisy warehouses, operators always know their scan went through.



One Device, Endless Possibilities
Ideal for retail, logistics, inventory control, asset tracking, and manufacturing, MT859UHF UHF 2D barcode pocket wireless scanner adapts to every task. From shelf restocking to parts traceability, its dual-mode design boosts accuracy and efficiency across the supply chain.

SPECIFICATIONS

RFID Performance
RF Power
Max 23 dBm
Frequency
US 902.75 ~ 927.25 MHz
EU 865.7 ~ 867.5 MHz
JP 916.8 ~ 923.4 MHz
Standard
EPC Gen2/ ISO 18000-6C
Memory
2 MB
Read Mode
Single Read
Multiple Read
Typical Reading Distance
up to 110cm
Barcode Scanner Performance
Light Source
White LED
Visible red LED
Sensor
640 x 480
Scan Rate
120 Frames/Sec
Resolution
3mil/ 0.075mm
Scan Angle
Horizontal 43°
Vertical 33°
Pitch Angle
±55°
Skew Angle
±55°
Roll Angle
360°
Print Contrast Ratio
10%
Width of Field
176mm (13Mil Code39)
Typical D.O.F (Environment: 800 lux)
5 Mil Code 39 : 45 ~ 115 mm
13 Mil UPC/EAN : 45 ~ 325 mm
15 Mil QR Code : 25 ~ 245 mm
10 Mil Data Matrix : 35 ~ 140 mm
6.67 Mil PDF417 : 50 ~ 135 mm
Physical Characteristics
Dimension
L102 x W42.5 x H21.5 mm
Weight
87g
Color
White
Material
PC
Connector
Type-C USB Port
Cable
Type-C(M) to USB A(M) Cable, 1.5M
Trigger
Scan Button, Function Button
Indicator
LED, Buzzer, Vibrator
Electrical
Operation Voltage
3.7VDC ± 5%
Working Current
< 1400 mA (2D+UHF @ 23 dBm)
< 1000mA (UHF @ 23 dBm)
< 400 mA (2D)
Standby Current
< 85mA
Idle Current (Sleep Mode)
3.7V, 1000mAh, Li-Polymer Battery
Connectivity
Radio
Bluetooth 5.0 (Class 2)
Range
66 ft/ 20m (line of sight)
Interface/Profile
BT HID
BT SPP
USB HID
USB VCP
Memory
User Environment
Operating Temperature
-10 ~ 55°C
Storage Temperature
-20 ~ 65°C
Humidity
0% ~ 95%RH (Non-condensing)
Drop Durability
1.5M
Sealing
IP55
Ambient Light
100,000 Lux (Sunlight)
Decode Capability
Symbologies
1D Symbologies:
Code 128, EAN-13, EAN8-, UPC-E, UPC-A, ISBN, ISSN, Code 11, Interleaved 2 of 5, Code 39, Code 93, Code 32, Codabar, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI Plessey, GS1 Databar, Febraban, Composite

2D Symbologies:
QR Code. Micro QR Code, PDF417, MicroPDF417, Data Matrix, Aztec, MaxiCode, HanXin, Dotcode
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge
EMC/RF
FCC Part15C, TELEC
Safety Approval
IEC62471 (Exempt Group)
Environmental
RoHS 2.0
