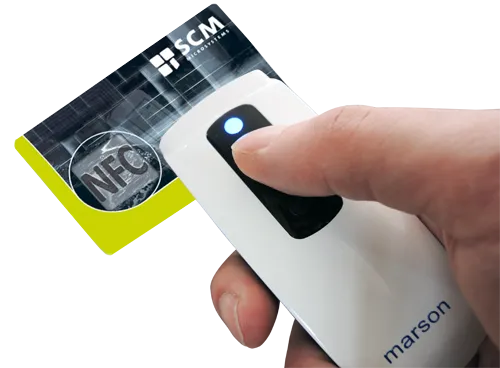

MR10A7 Portable HF RFID Reader
Wireless NFC RFID Solution
HF RFID Reader with built-in Bluetooth 5.0 technology, MR10A7 mobile NFC reader can send data to the host up to 20 meters away. This ergonomic pocket-sized wireless NFC reader is a high-performance companion for users who works on laptops, tablets, smartphones, or other mobile devices with iOS, Android, and Windows. It is ideal for a wide range of applications including field service, access control, asset management and security patrol.
。HF / Wireless / IP55
。Ergonomic and rugged design
。ISO-14443A/B, ISO-15693 & NFC
。Industrial IP55 protection
-
Field Service -
Access Control -
Asset Management -
Security
FEATURES
Increasing Mobile Productivity
HF RFID Reader MR10A7 is designed to enable users to quickly capture data in any high-frequency RFID tag and card. Supported by a 1,000mAh battery, MR10A7 RFID Reader can help user operate around the clock with less downtime ensuring mobile productivity during the entire busy shift for more than 13 working hours.
High Performance and Wide Compliance
MR10A7 RFID reader delivers high-speed scanning and error-free decoding of high-frequency tags and cards, and is fully compliant with ISO-14443A, ISO-14443B, ISO-15693, and NFC standards. MR10A7 can support the most popular RFID chips.
| Standard | RFID Chips |
| ISO14443A | Mifare 1 S-70, Mifare 1 S-50, Mifare Ultralight, Mifare DesFire (MF3), SLE66R35S (M-Classic) |
| ISO14443B | SRIX512, SRIX4K |
| ISO15693 | I-Code SLI (SL1 ICS30 01), Ti2048 (Plus), Ti256 (Standard), SRF55V10P (EM), Advant ATC1024 |
| NFC | Topaz 96 / 512, Felica, Felica Lite, NTAG 203 / 215 / 216 |
Flexible Operations of Data Collection
MR10A7 RFID Reader is versatile with the advantage of conducting flexible data collection operations of both online wireless mode and offline memory mode including multiple communication interfaces (BT HID/ BT SPP/ USB HID/ USB VCP). With a built-in memory of 2MB, HF RFID Reader MR10A7 can store up to 20,000 data scanned in user-friendly file format when it is operated in memory mode.
Industrial-class Protection
The ruggedized design of MR10A7 RFID Reader includes industrial-class protection with IP55 sealing and 1.5 meters drop resistance which ensures that MR10A7 HF RFID Reader prevents the infiltration of dust and water spray and withstand the impact of everyday drops and bumps in all kinds of working environments where users are constantly on the move.
The Better User Experience
With a built-in buzzer, LED, and vibrator, the MR10A7 RFID Reader provides full variety of Good Read responses such as audible, visual, and haptic feedback. Multi-color LED also indicates the Bluetooth® communication status as well as the power level of the battery. HF RFID Reader MR10A7 is also easily configured on the host computer by Marson's free user-friendly software tool, RFID Utility®.
Smart Management through RFID
RFID tag proves to be essential for a variety of automated applications including data acquisition and object identification. It works contactless and requires no line of sight with high noise immunity to environmental influences. For example, in enterprises, schools, and hospitals RFID can be adopted as Access Control; in cinemas, amusement parks, and supermarkets RFID can be adopted as Ticketing and Membership; in security patrol and equipment inspection RFID can be adopted as Asset Management.
SPECIFICATIONS
ISO 14443A
ISO 14443B
ISO 15693 : 0 ~ 80mm
(1 scan/ 5 secs, Bluetooth connected)
BT SPP
USB HID
USB VCP
Memory
(P/N: 7040-2820000, QTY: 1)
(P/N: 8001-1002X00, QTY: 1)
