MT6258L 2D Fixed Mount Scanner
Why Fixed Mount Scanners Excel in Industry
This 2D fixed mount barcode scanner is engineered with a high-resolution megapixel sensor, fast processing power, and a precision crosshair laser aimer to ensure rapid and accurate data capture. Designed for continuous, high-volume operations, it supports reliable scanning in logistics, manufacturing, and access control environments where speed, accuracy, and durability are essential.
How 2D Fixed Mount Scanning Improves Industrial Efficiency

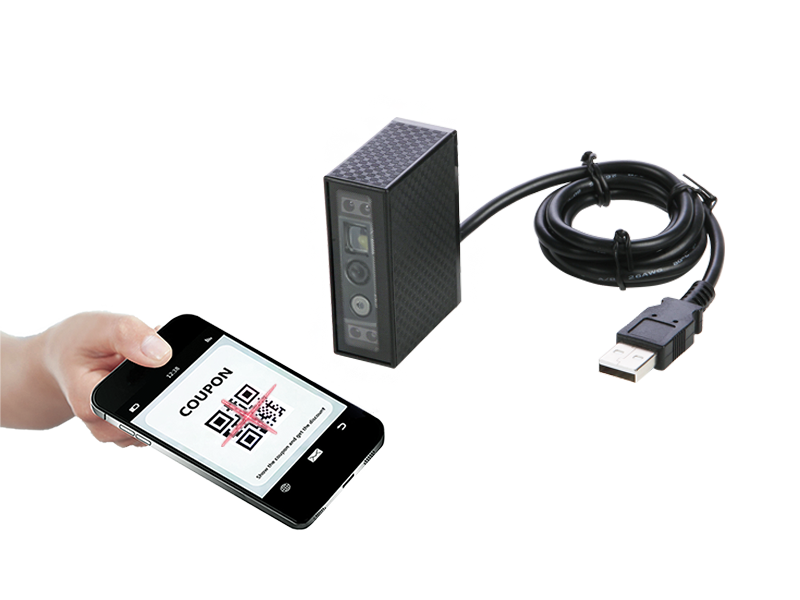

With advanced decoding and snappy 1D/2D barcode capture, the scanner reads labels on matte or glossy surfaces, as well as barcodes displayed on mobile screens or LCDs. It features an extended reading distance of up to 695mm for commodity barcodes and supports USB plug-and-play and RS232 interfaces, enabling seamless integration, reducing errors, and maintaining workflow efficiency even in harsh industrial conditions
- Laser aiming, megapixel scanning
- Reading distance up to 695mm
- IP55 industrial-grade durability
- Supports software trigger and IR sensing
- Reads 1D, 2D, postal codes, and OCR
- Flexible interface and mounting options
-
Logistics -
Manufacturing -
Access Control
FEATURES
Precision Laser Aiming
Equipped with a high-visibility crosshair laser, the 2D fixed mount scanner ensures accurate targeting of barcodes for fast and reliable scanning. The laser supports precise alignment even for small, high-density, or difficult-to-position codes, reducing rescans and enhancing operational efficiency in logistics, manufacturing, and access control environments.
Megapixel Scanning & Rapid Capture
Featuring a megapixel imaging sensor and advanced decoding algorithm, the 2D fixed mount scanner quickly reads all 1D/2D barcodes, including QR Code, PDF417, MicroPDF417, Data Matrix, and Aztec. With an extended reading distance of up to 695mm for commodity barcodes, it captures high-density, damaged, or mobile screen barcodes efficiently, ensuring high throughput in demanding industrial, logistics, and access control applications.
Multiple Mounting Options
Featuring a megapixel imaging sensor and advanced decoding algorithm, the 2D fixed mount scanner quickly reads all 1D/2D barcodes, including QR Code, PDF417, MicroPDF417, Data Matrix, and Aztec. With an extended reading distance of up to 695mm for commodity barcodes, it captures high-density, damaged, or mobile screen barcodes efficiently, ensuring high throughput in demanding industrial, logistics, and access control applications
Industrial-Class Protection

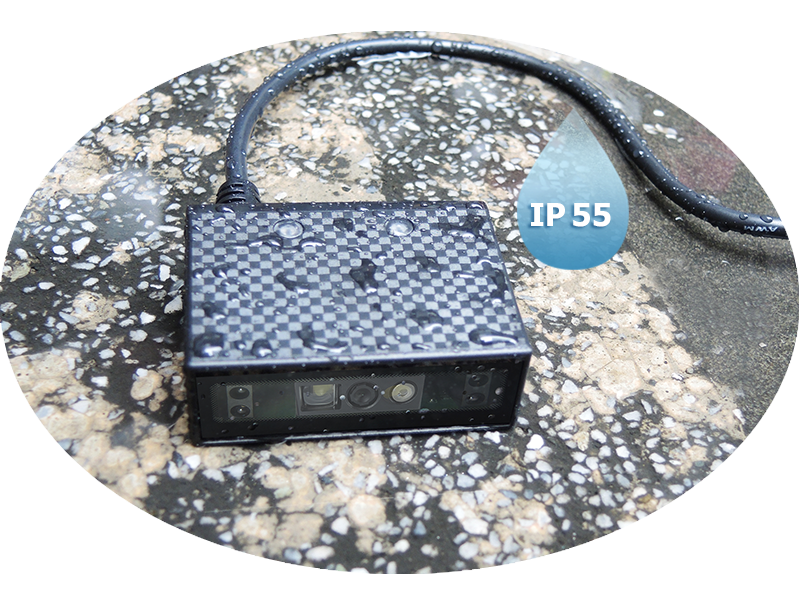

Ruggedized design with IP55 sealing and 1.5-meter drop resistance protects against dust, water spray, and accidental impacts. Operating across a wide temperature range (-20°C to 65°C), the 2D fixed mount scanner delivers dependable performance in harsh industrial environments, maintaining reliability during continuous, high-volume operations.
Flexible Mounting & User-Friendly Operation

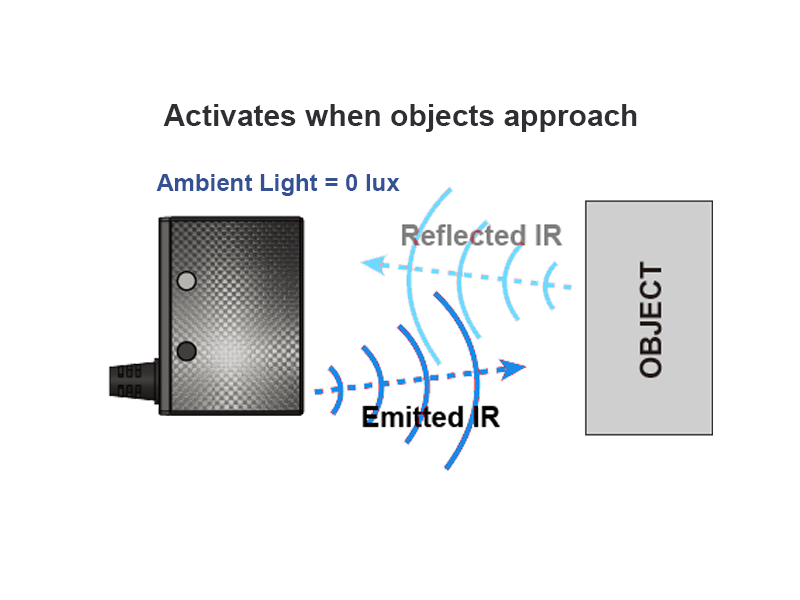

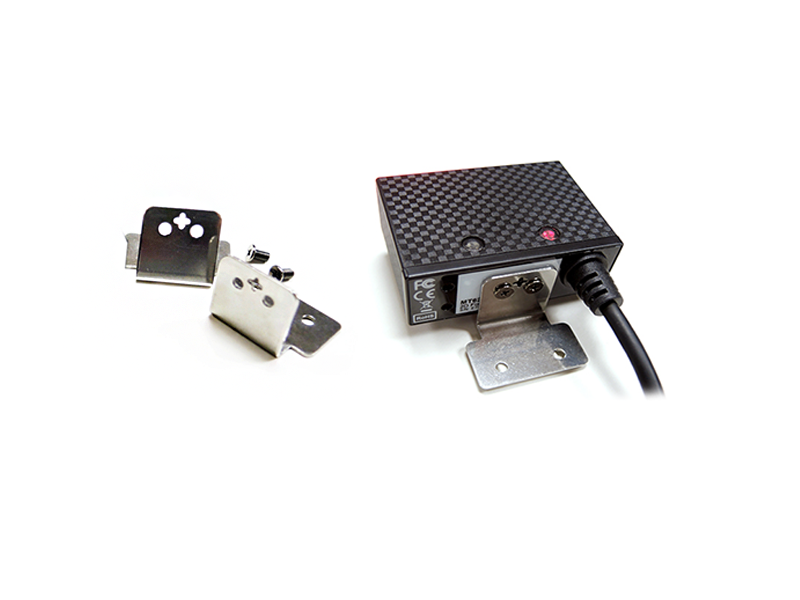

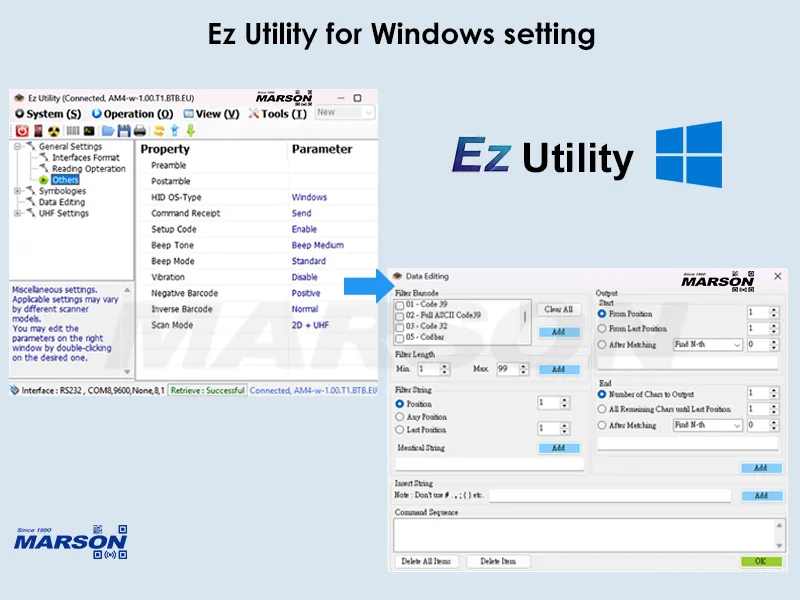

The 2D fixed mount scanner is shipped with 90° and 60° stainless steel mounting brackets for straight, tilted, or right-angled installation. Equipped with a power LED, Good Read LED, and auto-sensing infrared sensor, the 2D fixed mount scanner activates when objects approach and supports software trigger through USB or RS232. IEC60825-1 Class 1 safety certification ensures user-friendly operation with visual and audible feedback, enhancing productivity and efficiency. It can also be easily configured on the host computer by Marson's free user-friendly software tool, Ez Utility®.
SPECIFICATIONS
Visible red Laser
Vertical 26°
5 Mil Code39: 85 ~ 305mm
13 Mil UPC/EAN: 65 ~ 695mm
15 Mil QR Code: 45 ~ 385mm
10 Mil Data Matrix: 95 ~ 265mm
6.67 Mil PDF417: 115 ~ 255mm
MT6258LR: 83.25g
MT6258LR: D-sub 9
Software Trigger
Code128, Code39, Code93, EAN-13, EAN-8, UPC-E, UPC-A, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar, Codabar, MSI Plessey, Code 11, Standard 2 of 5, ChinaPost 2 of 5, GS1 Composite
2D Symbologies:
PDF417, MicroPDF417, Data Matrix, MaxiCode, QR Code, Micro QR Code, Aztec, Han Xin, GridMatrix
Postal Codes:
Japanese Post, Australian Post, Korean35, MailMark, Netherlands KIX, UK Postal, US Postnet, US Planet, USPS_4CB
OCR:
OCR-B (Passport MRZ)
(P/N: 4210-3005X51, QTY: 2)
(P/N: 3101-6201X00, QTY: 1)
Mounting Bracket, 60 degrees, Silver
(P/N: 3101-6200X00, QTY: 1)
