PCS (Print Contrast Scale)

1.     Reflectance of Bars and Spaces:
In a barcode, the bars represent the dark elements, and the spaces are the light elements. The reflectance of the bars (Rb) and the spaces (Rs) is determined by measuring the amount of light reflected from each region.

2. Calculation of PCS:
PCS is calculated using the formula: PCS = (Rs - Rb) / Rs
The difference in reflectance between the spaces and bars is divided by the reflectance of the spaces. The result is expressed as a percentage.

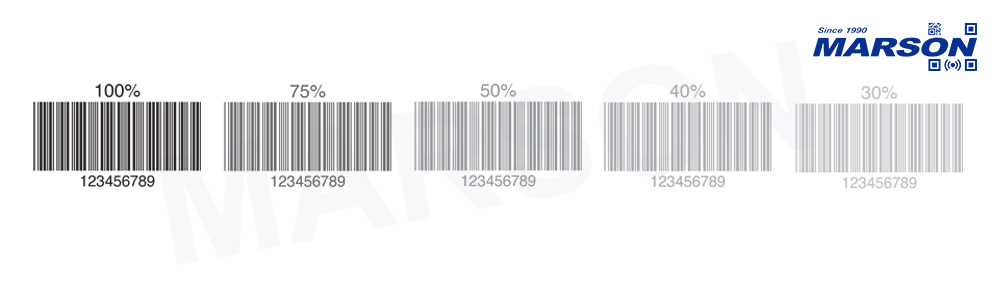

3. Interpretation of PCS Value:
The PCS value ranges from 0% to 100%. A high PCS value indicates a significant contrast between the bars and spaces, which means the barcode is well-printed and easily scannable. On the other hand, a low PCS value indicates poor contrast, making the barcode difficult to read accurately.

4. Importance of PCS in Barcode Quality:
An accurate and readable barcode is crucial in various industries, such as retail, logistics, and healthcare. If the PCS value is too low, it might lead to scanning errors, data inaccuracies, and operational inefficiencies. Therefore, measuring the PCS helps assess the quality of printed barcodes and ensures they meet the required standards.

5. Adjusting Printing Parameters:
To improve the PCS value, adjustments in printing parameters can be made, such as adjusting the printer's darkness settings, selecting appropriate label materials, and optimizing printing conditions. These adjustments aim to enhance the contrast between the bars and spaces, resulting in a higher PCS value and improved barcode readability.
