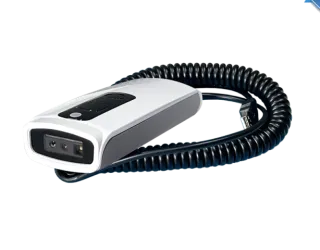

Improving Medical Safety and Efficiency

Experience high-speed scanning and error-free decoding with MT8225HF, compliant with HF standards and supporting popular RFID chips. Rapidly capture 1D & 2D barcodes, even in various orientations, with superior accuracy. Built with anti-microbial technology, it ensures hygienic healthcare scanning. Its rugged design offers industrial-grade protection, while the user-friendly interface and multiple feedback options enhance the scanning experience.



  • 2D & HF / Tethered / IP55 / Medical
  • 2D and HF dual reading capability
  • Disinfectant-ready housing
  • Dust and water resistance



360_View_Icon_20241210 View photo: https://scankit.istaging.com/20241204-MS-005-2/20241204-MS-005-2.html

* New product available for free testing. For detailed conditions, please contact our sales representative.

Application

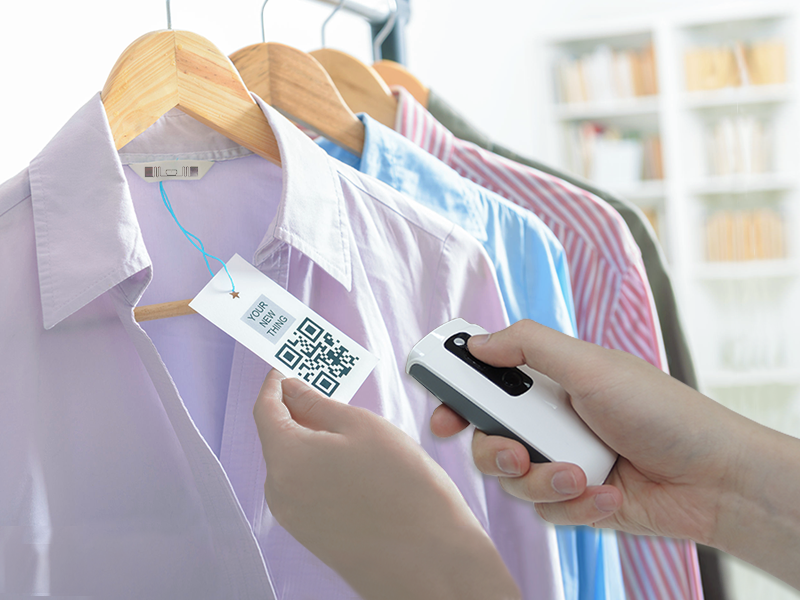

  • Retail
    Retail
  • Healthcare
    Healthcare
  • Inventory
    Inventory
Share:

FEATURES

High Performance and Broad Compliance
MT8225HF delivers high-speed scanning and error-free decoding of high-frequency tags and cards, and is fully compliant with ISO14443A, ISO 14443B, ISO15693, and NFC standards. MT8225HF can support the most popular RFID chips.



Standard RFID Chips
ISO14443A Mifare 1 S-70, Mifare 1 S-50, Mifare Ultralight, Mifare DesFire (MF3), SLE66R35S (M-Classic)
ISO14443B SRIX512, SRIX4K
ISO15693 I-Code SLI (SL1 ICS30 01), Ti2048 (Plus), Ti256 (Standard), SRF55V10P (EM), Advant ATC1024
NFC Topaz 96 / 512, Felica, Felica Lite, NTAG 203 / 215 / 216



Fast 1D & 2D Barcode Data Capture
MT8225HF, on an average of 1/10 seconds, scans all linear barcodes and major 2D barcodes, including GS1 UDI and Dotcode, printed on labels with either matte or glossy surface, or displayed on mobile phone or LCD screen. MT8225HF RFID / 2D handheld barcode scanner also delivers superior scanning in any orientation, which benefits enterprise with less downtime and increased productivity.

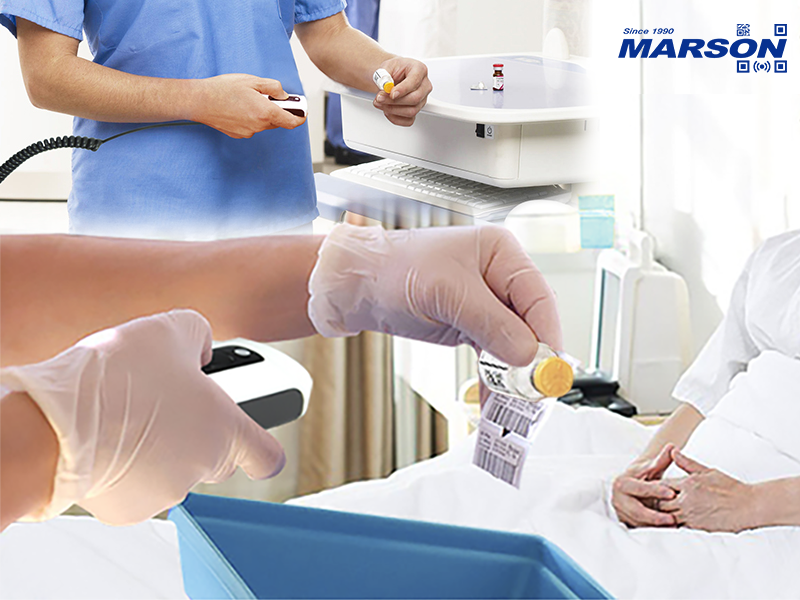

Designed for Healthcare Applications
Built with anti-microbial technology, MT8225HF can endure repeated alcohol or bleach cleaning and keeps preventing the reproduction and spread of bacteria among nurses in hospital. The disinfectant-ready MT8225HF RFID / 2D reader enables caregivers to quickly identify patients, and dispense medications, keep up-to-date record and manage medical supplies inventory in an error-free manner.



Mobile-Friendly Scanning
With enhanced optical design and latest decode algorithm, MT8225HF virtually scans all 1D and 2D barcodes printed on any surface, either paper-based label with either matte or glossy surface, or mobile phone display and LCD screen. As a result users may expand their business into many new applications such as eCoupon, eTicket, Digital ID cards and mobile payments.



IP55 Industrial-class Protection
The ruggedized design of MT8225HF RFID / 2D Handheld Scanner includes industrial-class protection with IP55 sealing and 1.5 meters drop resistance ensuring that MT8225HF prevent the infiltration of dust and water spray and withstand the impact of everyday drops and bumps in all kinds of working environments where users are constantly on the move.



Better User Experience
As classified by Photo-biological Safety Standard EN/IEC 62471, the light source of MT8225HF is completely safe for human eyes even after long hours operation. With built-in buzzer, LED and vibrator, MT8225HF RFID / 2D Handheld Scanner provides full variety of Good Read responses such as audible, visual, and haptic feedback. MT8225HF can also be configured by user-friendly tool, Ez Utility® that enables complex settings such as data editing and symbology settings to be programmed in the easiest way possible.

SPECIFICATIONS

RFID Performance
RF Antenna
PCB Antenna
Frequency
13.56MHz
Standard
ISO 15693
ISO 14443A
ISO 14443B
Memory
2MB
Read Mode
Single Read
Typical Reading Distance
ISO 14443 : 0 ~ 65mm
ISO 15693 : 0 ~ 80mm
Optic & Performance
Light Source
White LED
Visible red LED
Sensor
640 x 480
Resolution
3mil / 0.075mm
Scan Angle
Horizontal 43°
Vertical 33°
Pitch Angle
±55°
Skew Angle
±55°
Roll Angle
360°
Print Contrast Ratio
10%
Width of Field
176mm (13Mil Code39)
Typical D.O.F (Environment: 800 lux)
5 Mil Code 39: 37 ~ 199 mm
13 Mil UPC/EAN : 47 ~ 380mm
15 Mil QR Code : 31 ~ 256 mm
6.67 Mil PDF417 : 37 ~ 163 mm
10 Mil DataMatrix : 31 ~ 163 mm
Physical Characteristics
Dimension
W42.5 x L102 x H21.5 mm
Weight
193g
Color
White
Material
PC
Connector
USB Type A
Cable
USB Type A, USB Coiled Cable, 3M
Trigger
Scan Button x 2
Indicator
LED, Buzzer, Vibrator
Electrical
Operation Voltage
5.0 VDC ± 5%
Working Current
< 250mA
Standby Current
< 80mA
Connectivity
Interface/Profile
USB HID
USB VCP
User Environment
Operating Temperature
-10 ~ 55˚C
Storage Temperature
-20 ~ 65˚C
Humidity
0% ~ 95%RH (Non-condensing)
Drop Durability
1.5M
Sealing
IP55
Ambient Light
100,000 Lux (Sunlight)
Decode Capability
Symbologies
1D Symbologies:
Code 128, EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code 11, Interleaved 2 of 5, Code 39, Code 93, Code 32, Codabar, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI Plessey, GS1 Databar, Febraban, Composite

2D Symbologies:
QR Code. Micro QR Code, PDF417, MicroPDF417, Data Matrix, Aztec, MaxiCode, HanXin, Dotcode
Regulatory
ESD
Functional after 4KV contact, 8KV air discharge
EMC/RF
TBA
Safety Approval
IEC62471 (Exempt Group)
Environmental
WEEE, RoHS 2.0
Medical Compliance
ISO 22196 (JIS Z 2801), ISO 11737-1/2
